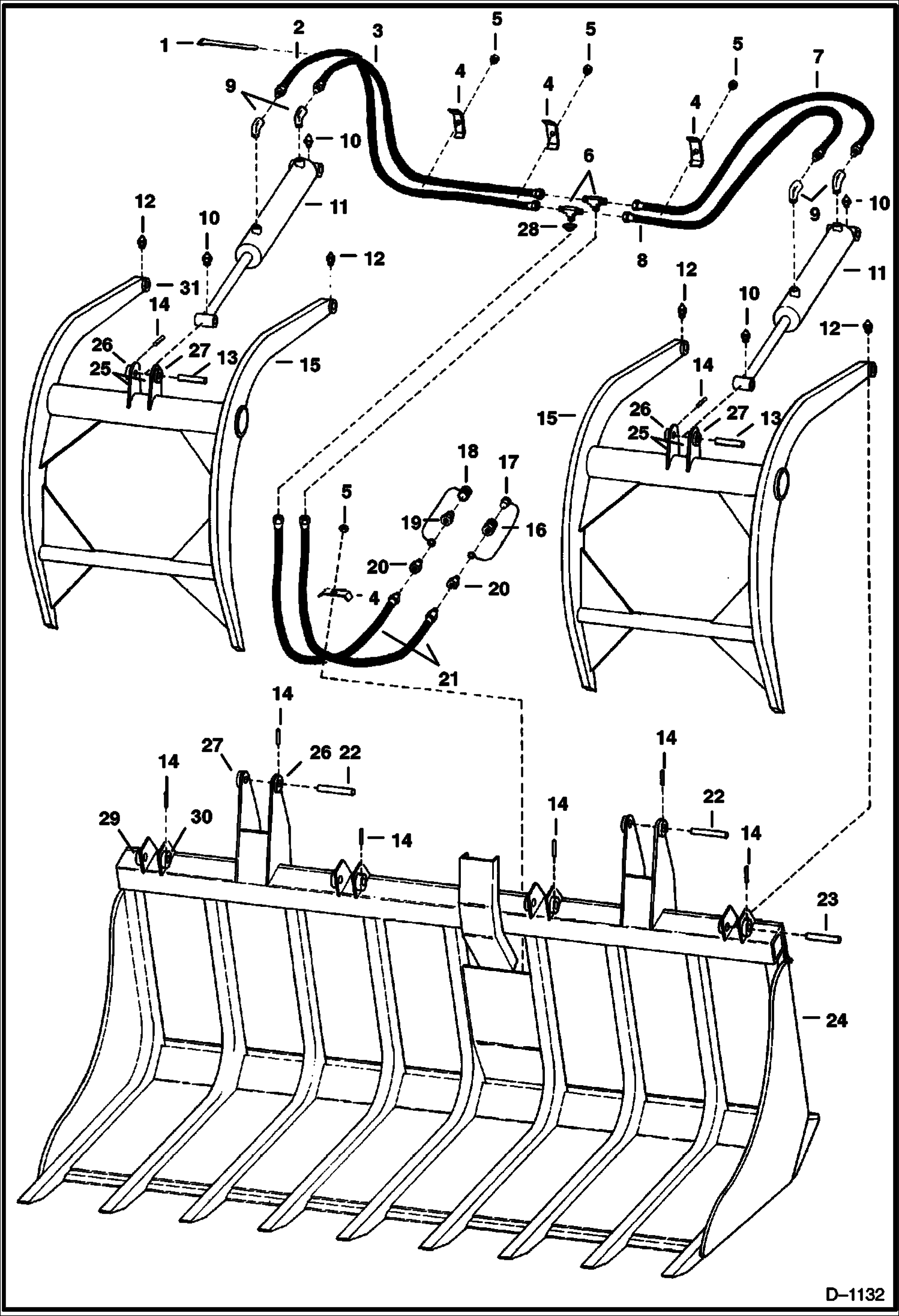

Запчасти Bobcat GRAPPLES INDUSTRIAL GRAPPLE - 900 Series New Style Loader

1

6503117

TIE

2

6507196

HOSE

3

6507197

HOSE

4

6502203

CLAMP

5

81D6

NUT

6

10K6

FITTING

7

6507194

HOSE

8

6507195

HOSE

9

26F4

ELBOW

10

10H35

FITTING, GREASE 10

11

6509130

CYLINDER See Illustration HYDRAULIC CYLINDER - 900 Series/ B1187 HYDRAULIC

12

10H25

FITTING, GREASE 5

13

6507208

PIN hinge

14

675351

ROLL PIN

15

6507622

TEETH

16

6515596

QUICK COUPLER female half

16

25K40110

O RING 10

16

73K219

BK UP RG

17

6515598

PLUG W/Chain

18

6515599

CAP W/Chain

19

6515597

QUICK COUPLER male half

20

356617

BUSHING reducer

21

6507198

HOSE

22

6507207

PIN hinge

23

6507209

PIN hinge

24

FORK NLA - Was Sales - A

25

6507189

EAR Weld On

26

6503188

BUSHING Weld On

27

6503480

BUSHING Weld On

28

6592824

ORIFICE .104-.111 (2,64mm - 2,82mm)

29

6507202

BUSHING

30

6507203

BUSHING

31

6507190

BUSHING
