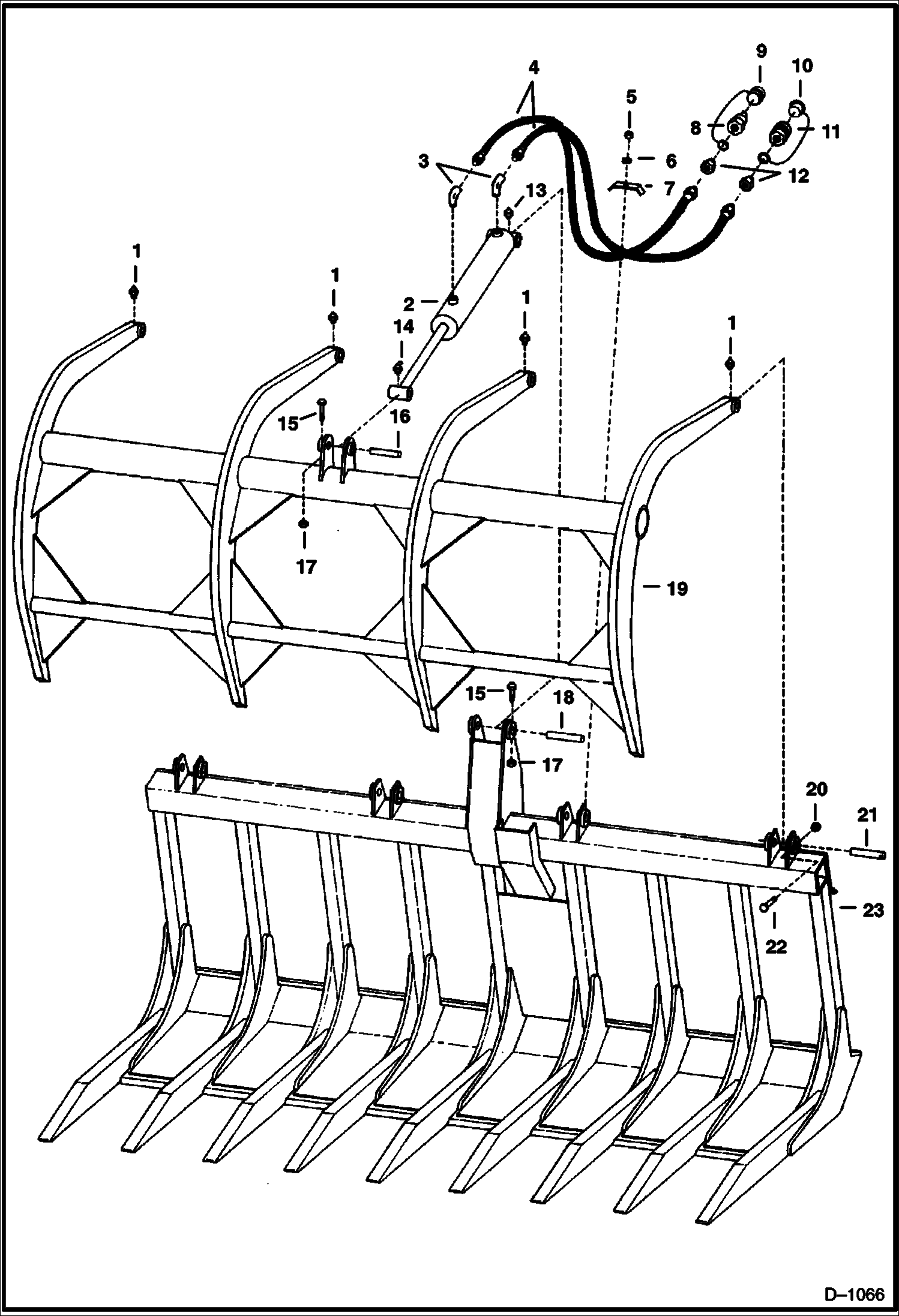

Запчасти Bobcat GRAPPLES INDUSTRIAL GRAPPLE - 900 Series Old Style Loader

1

10H25

FITTING, GREASE 5

2

6509130

CYLINDER See Illustration HYDRAULIC CYLINDER - 900 Series/ B1187 HYDRAULIC

3

30K308

ELBOW

4

6507330

HOSE

5

61D6

NUT 5

6

4E6

WASHER

7

6502203

CLAMP

8

6515597

QUICK COUPLER male

9

6515599

CAP W/Chain

10

6515598

PLUG W/Chain

11

6515596

QUICK COUPLER female

11

25K40110

O RING 10

11

73K219

BK UP RG

12

19F9

BUSHING

13

10H35

FITTING, GREASE 10

14

11H15

GREASE FITTING Was 11H000025B - B

15

17C528

BOLT

16

6507208

PIN hinge

17

61D5

NUT

18

6507207

PIN hinge

19

6507317

TEETH

20

61D4

NUT 5

21

6507209

PIN hinge

22

17C440

BOLT

23

FORK NLA - grapple - Was Sales - A
