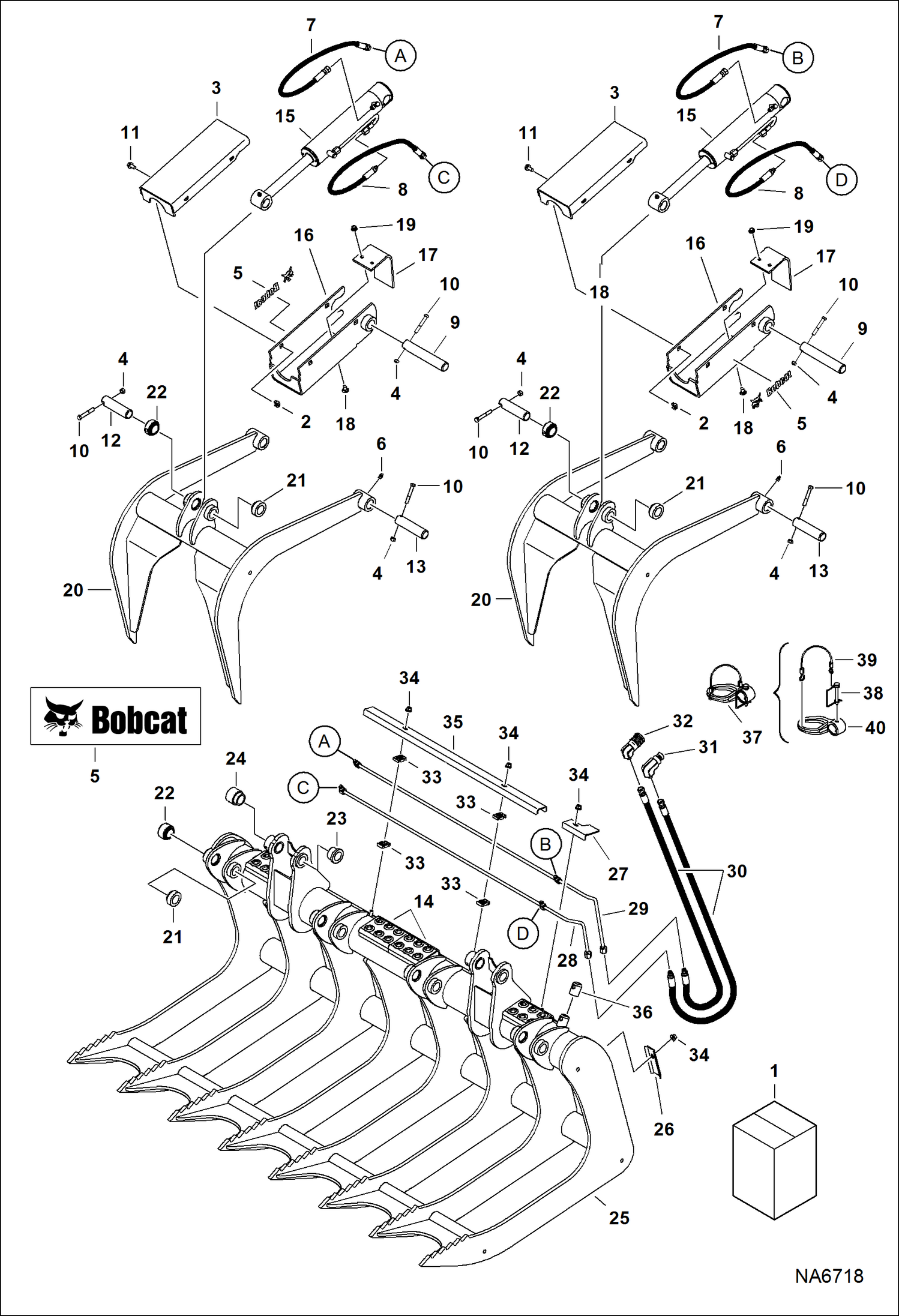

Запчасти Bobcat GRAPPLES ROOT GRAPPLE 66 (Single Piece Tubelines) (66 AF0T00717 & Above) Loader

1

GRAPPLE ASSY SALES #7168343 - 66'' - Ref. 2-37

2

6685663

NUT, RETAINING

3

7212774

COVER, TOP W/A

4

85D6

NUT, 5

5

7109473

DECAL, LOGO BOBCAT AND HEAD

6

10H25

FITTING, GREASE 5

7

7211133

HOSE, HYD ASSY

8

7211134

HOSE, HYD ASSY

9

6531433

PIN

10

17C640

BOLT 5

11

31C612

BOLT

12

6577954

PIN, PIVOT

13

6547595

PIN

14

6701943

STEP

15

7212595

CYLINDER , GRAPPLE See Illustration GRAPPLE CYLINDER/ NA6367

16

7212772

COVER, BOTTOM

17

7162805

COVER, HOSE

18

37C616

BOLT

19

57D6

NUT 5

20

7182393

TOOTH, GRAPPLE

21

6555989

BUSHING

22

6555987

BUSHING

23

7163277

BUSHING

24

7163271

BUSHING

25

GRAPPLE FRAME NSS - Order Ref. 1

26

6704665

CLAMP

27

7164694

COVER, TUBELINE

28

7220941

TUBELINE, HYD

29

7220942

TUBELINE, HYD

30

7167290

HOSE, HYD

31

7167304

COUPLER, MALE

32

7167305

COUPLER, FEMALE

33

7115645

CLAMP

34

83D6

NUT 5

35

7164663

COVER, TUBELINE

36

7170300

PIN, PIVOT

37

7161953

GUIDE, HOSE ASSY Ref. 38-40

38

7161559

PIN, SNAPPER

39

CABLE ASSY NSS - 304,8 mm (12'') long - Order 6558309 wire rope & (2) 6558310 sleeve

39

6558309

WIRE ROPE bulk - sold per foot

39

6558310

SLEEVE

40

GUIDE NSS - Order Ref. 37
