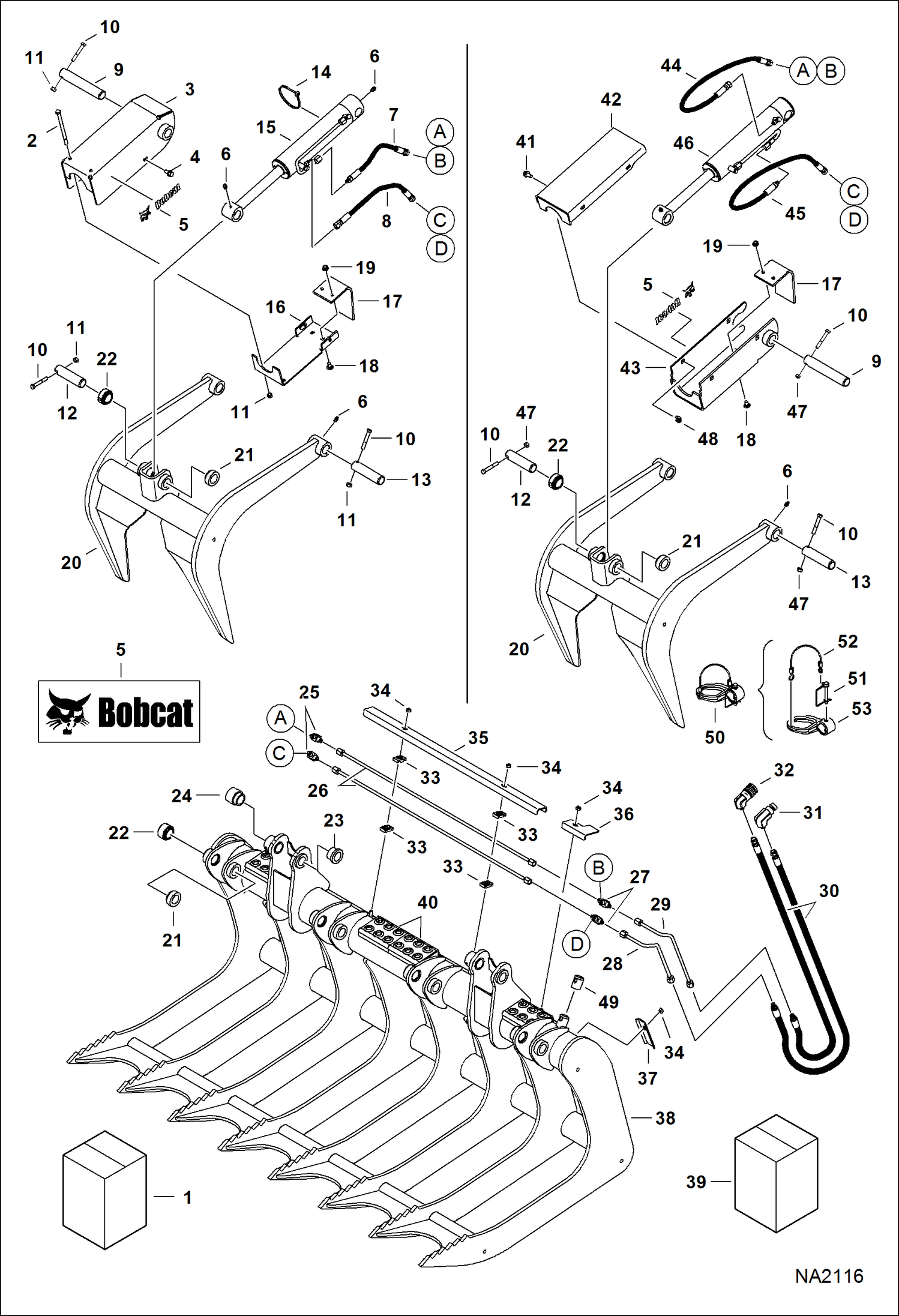

Запчасти Bobcat GRAPPLES ROOT GRAPPLE 66 (Two Piece Tubelines) (66 AF0T00101 - 00716) Loader

1

GRAPPLE ASSY SALES #7168343 - 66'' - Ref. 2-50

2

17C688

BOLT Was 17C696 - B

3

COVER, TOP W/A See Illustration GRAPPLE SEVERE DUTY KIT/ NA6371 - NLA - Order 7214249 kit - Was 7182727 - A

4

35C612

BOLT

5

7109473

DECAL, LOGO BOBCAT AND HEAD

6

10H25

FITTING, GREASE 5

7

HOSE See Illustration GRAPPLE SEVERE DUTY KIT/ NA6371 - NLA - Order 7214249 kit - Was 7162706 - A

8

HOSE See Illustration GRAPPLE SEVERE DUTY KIT/ NA6371 - NLA - Order 7214249 kit - Was 7162707 - A

9

6531433

PIN

10

17C640

BOLT 5

11

81D6

NUT

12

6577954

PIN, PIVOT

13

6547595

PIN

14

6624289

STRAP, TIE

15

CYLINDER ASSY, HYD See Illustration CYLINDER/ PE3041B

16

COVER, BOTTOM See Illustration GRAPPLE SEVERE DUTY KIT/ NA6371 - NLA - Order 7214249 kit - Was 7163270 - A

17

7162805

COVER, HOSE

18

37C616

BOLT Was 37C612 - B,D

19

57D6

NUT 5

20

7182393

TOOTH, GRAPPLE Was 7163282 - B

21

6555989

BUSHING

22

6555987

BUSHING

23

7163277

BUSHING

24

7163271

BUSHING

25

77F5

FITTING

26

7164644

TUBELINE

27

10K5

TEE

28

7164665

TUBELINE

29

7164666

TUBELINE

30

7167290

HOSE, HYD

31

7167304

COUPLER, MALE

32

7167305

COUPLER, FEMALE

33

7115645

CLAMP

34

85D6

NUT, 5

35

7164663

COVER, TUBELINE

36

7164694

COVER, TUBELINE

37

6704665

CLAMP

38

GRAPPLE FRAME NSS - Order Ref. 1

39

7168214AR

KIT, TRANSLATION Spanish (Argentina)

39

7168214BR

KIT, TRANSLATION Portugese (Brazil)

40

6701943

STEP

41

31C612

BOLT

42

7212774

COVER, TOP W/A

43

7212772

COVER, BOTTOM

44

7211134

HOSE, HYD ASSY

45

7211133

HOSE, HYD ASSY

46

7212595

CYLINDER , GRAPPLE See Illustration GRAPPLE CYLINDER/ NA6367

47

85D6

NUT, 5

48

6685663

NUT, RETAINING

49

7170300

PIN, PIVOT

50

7161953

GUIDE, HOSE ASSY Ref. 51-53 - if equipped

51

7161559

PIN, SNAPPER

52

CABLE ASSY NSS - 304,8 mm (12'') long - Order 6558309 wire rope & (2) 6558310 sleeve

52

6558309

WIRE ROPE bulk - sold per foot

52

6558310

SLEEVE

53

GUIDE NSS - Order Ref. 50
