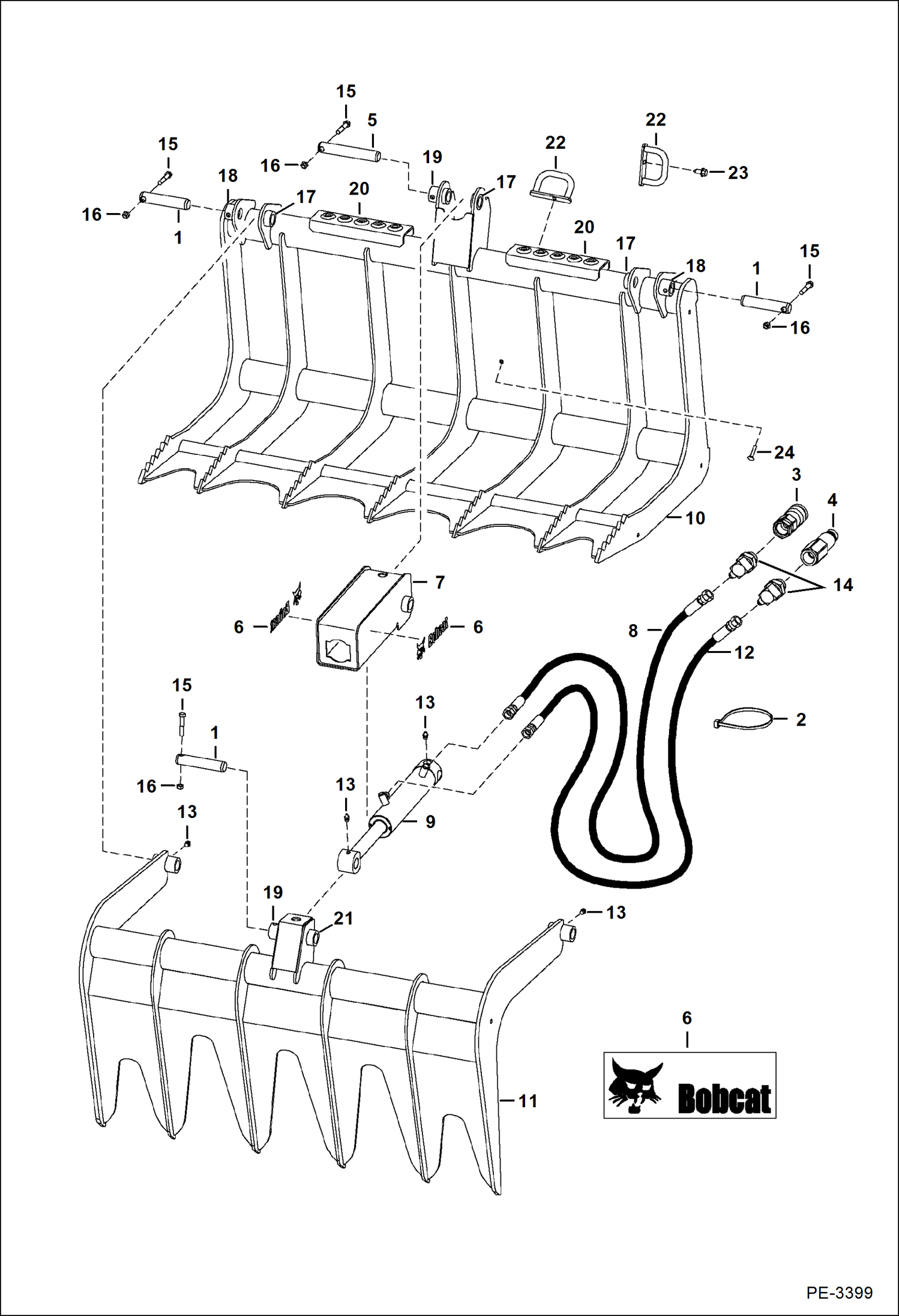

Запчасти Bobcat GRAPPLES ROOT GRAPPLE 36, 48 (36 A678) (48 A87D) Loader

1

6551663

PIN, PIVOT

2

6624289

STRAP, TIE

3

6672960

COUPLER, FF FEMALE straight

4

6674688

COUPLER, FF MALE straight

5

6705861

PIN

6

7109473

DECAL, LOGO BOBCAT AND HEAD

7

7134187

GUARD

8

7134189

HOSE for 48'' grapple

8

7133992

HOSE for 36'' grapple

9

CYLINDER See Illustration CYLINDER/ PE3398

10

BUCKET NSS

11

7140895

GRAPPLE for 48'' bucket

11

7133967

GRAPPLE for 36'' bucket

12

7149355

HOSE for 48'' grapple

12

6728635

HOSE for 36'' grapple

13

10H25

FITTING, GREASE 5

14

17KB0612

FITTING, HYD ELBOW

15

17C632

BOLT 5

16

85D6

NUT, 5

17

6549146

BUSHING

18

6549186

BUSHING

19

6704647

BUSHING

20

6704710

STEP

21

7134192

BUSHING

22

7117875

MOUNT 48'' only - Use W/ 553 mount to Bob-Tach, S100 mount to attachment frame

23

84G3720

BOLT Use when mounting D-ring to 553

24

25GT612

BOLT Use when mounting D-ring to frame
