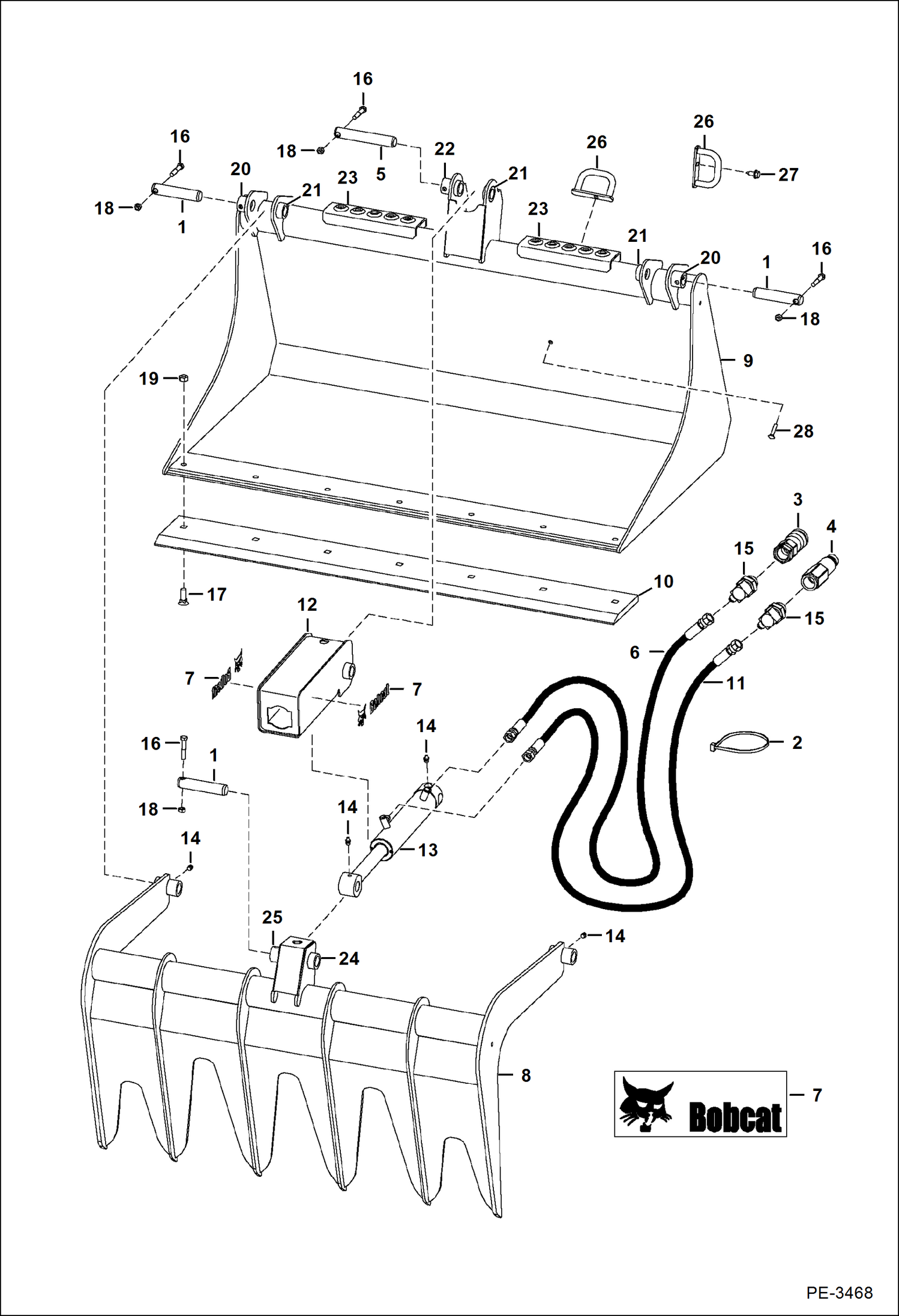

Запчасти Bobcat GRAPPLES INDUSTRIAL GRAPPLE (36 A6S1) (48 A879) Loader

1

6551663

PIN, PIVOT

2

6624289

STRAP, TIE

3

6672960

COUPLER, FF FEMALE straight

4

6674688

COUPLER, FF MALE straight

5

6705861

PIN

6

6728635

HOSE for 36'' grapple

6

7149355

HOSE for 48'' grapple

7

7109473

DECAL, LOGO BOBCAT AND HEAD

8

7133967

GRAPPLE for 36'' bucket

8

7140895

GRAPPLE for 48'' bucket

9

BUCKET NSS - Order grapple assy from Sales

10

7133985

EDGE, CUTTING BOLT ON BEVELED 36'' for 36'' bucket

10

7140879

CUTTING EDGE for 48'' bucket

11

7133992

HOSE for 36'' grapple

11

7134189

HOSE for 48'' grapple

12

7134187

GUARD

13

CYLINDER See Illustration CYLINDER/ PE3398

14

10H25

FITTING, GREASE 5

15

17KB0612

FITTING, HYD ELBOW

16

17C632

BOLT 5

17

39C824

BOLT qty. 6 for 36'' bucket, qty. 7 for 48'' bucket

18

85D6

NUT, 5

19

85D8

NUT, 5 qty. 6 for 36'' bucket, qty. 7 for 48'' bucket

20

6549186

BUSHING

21

6549146

BUSHING

22

6704647

BUSHING

23

6704647

BUSHING

24

7134192

BUSHING

25

6704647

BUSHING

26

7117875

MOUNT 48'' only - Use W/ 553 mount to Bob-Tach, S100 mount to attachment frame

27

84G3720

BOLT Use when mounting D-ring to 553

28

25GT612

BOLT Use when mounting D-ring to frame
