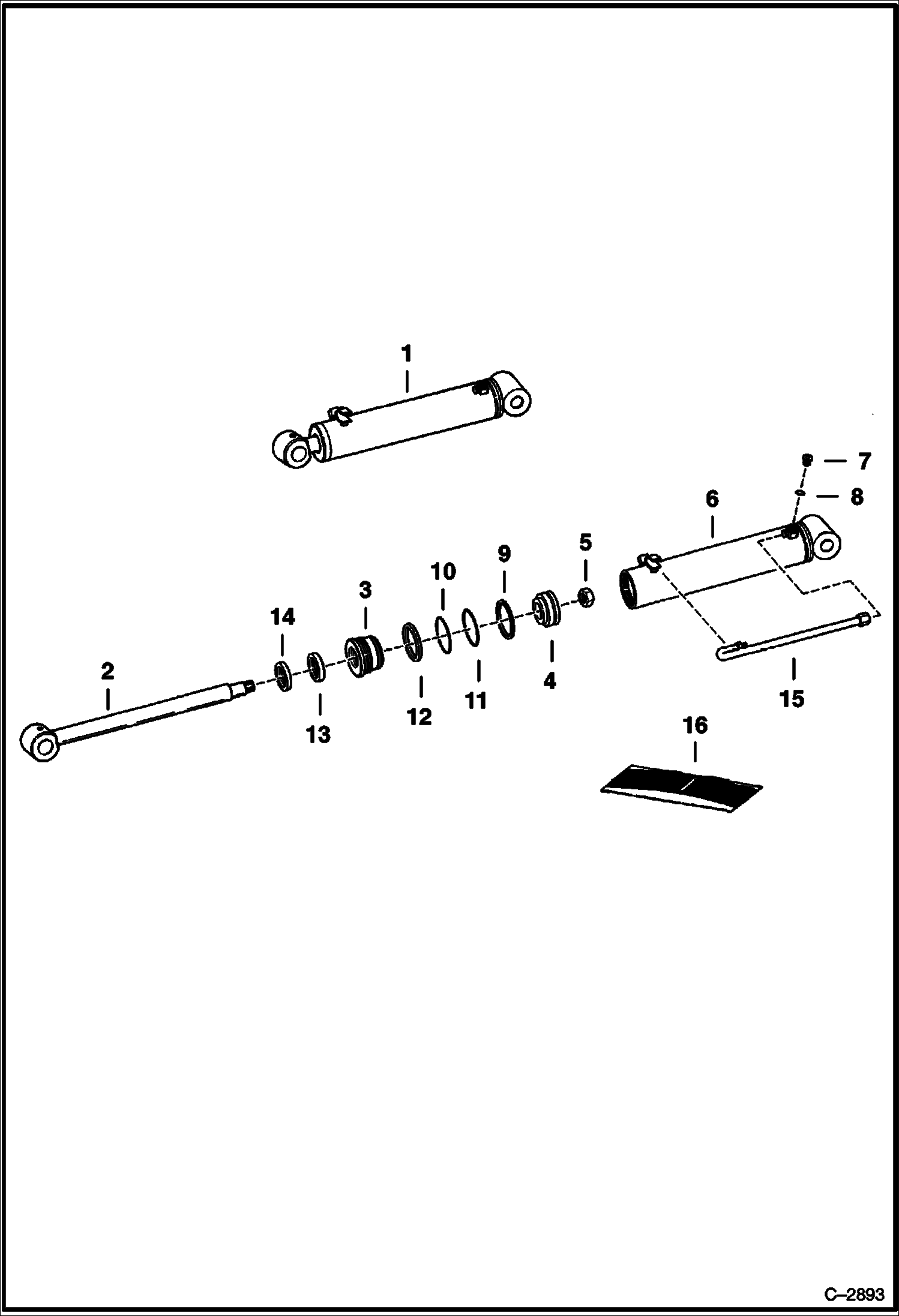

Запчасти Bobcat GRAPPLES CYLINDER - Grapple Fork Loader

1

6593329

CYLINDER, GRAPPLE Ref. 2 - 14 - Does Not Include Ref. 15 - Was 6593327 - A

2

6595265

ROD 1.25'' dia. - Was 6593332 - A

3

7106798

HEAD Was 6537162 - A

4

6543168

PISTON

5

92D12

NUT Was 86D000012B - B

6

6593335

CASE

7

PLUG NLA - flat boss face - Was 47K-2 - A

7

90KV2

PLUG tapered boss face

8

79K3

O RING 10 for flat boss face

8

95K3

O'RING for tapered boss face

9

6519328

SEAL

10

54K30216

O-RING Was 25K030126B - A

11

25K60128

O RING 10 Was 54K60128 - A

12

73K328

RING back-up

13

6667324

SEAL Was 6665184 - A

14

6665208

SEAL

15

6593328

TUBE

16

6803333

SEAL KIT Ref. 5 & 9 - 14 - Was 6589875 - A
