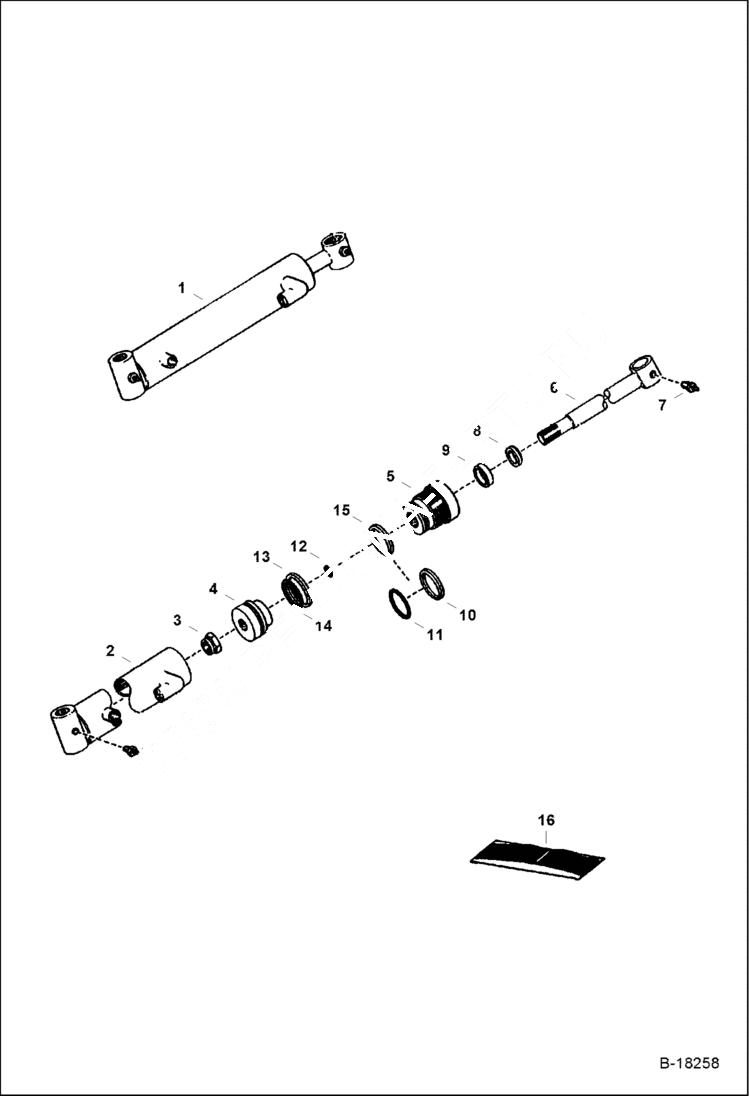

Запчасти Bobcat GRAPPLES GRAPPLE CYLINDER W/1.25 (31,75mm) Rod Loader

1

CYLINDER See Illustration GRAPPLE CYLINDER/ TS1018 NLA - REF. 2 - 14 - ORDER 6530564 & 11K000005B SWIVEL ELBOW

2

6592028

CASE

3

92D12

NUT See BTI126 Was 86D000012B - A

4

6558196

PISTON See BTI126

5

6539323

HEAD Was 6504932 - A

6

6530566

ROD Was 6516209 - A

7

10H25

FITTING, GREASE 5

8

6665208

SEAL wiper - Was NSS - D

9

6667324

SEAL u-cup - Was NSS - D

10

73K224

RING back-up - Was NSS - D

11

54K40124

O-RING Was NSS - D

12

O-RING NSS

13

6516231

SEAL Was NSS - D

14

25K30118

O RING 10 Was NSS - D

15

7008781

SEAL, QUAD

16

7137769

KIT, SEAL Ref. 8, 9, & 12-15 - Was 6589831 - A
