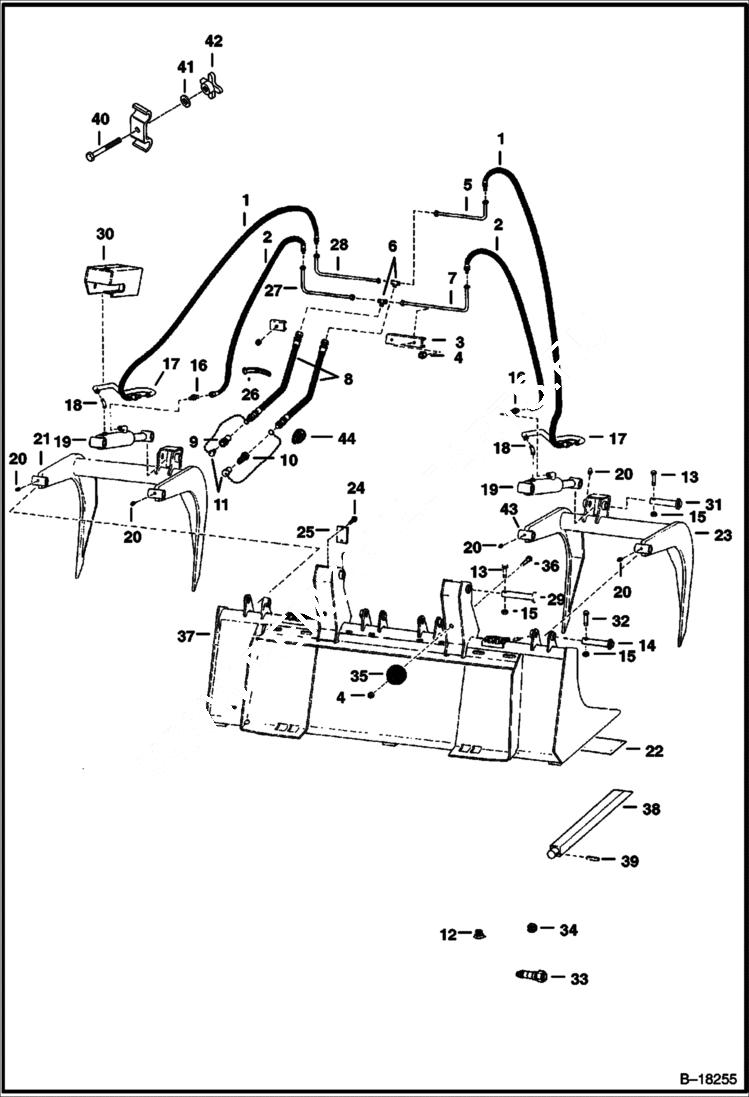

Запчасти Bobcat GRAPPLES INDUSTRIAL GRAPPLE - 825 Only Loader

1

6704267

HOSE Was 6546573 - A

2

6546574

HOSE

3

6555367

CHANNEL

4

85D6

NUT, 5

5

6552351

TUBE

6

10K5

TEE

7

6552354

TUBE

8

6546589

HOSE

9

6598756

QUICK COUPLER Female - poppet

9

6672960

COUPLER, FF FEMALE straight - Was 6667807 - A

9

25K40026

O RING 10 Use with poppet coupler

10

6598755

QUICK COUPLER Male - poppet

10

6674688

COUPLER, FF MALE straight - Was 6667808 - A

11

6513709

CAP PLUG assy. - Rubber

11

6515168

CAP Steel

11

6515167

PLUG Steel

12

6598690

SPRING

13

17C528

BOLT

14

6551663

PIN, PIVOT

15

85D5

NUT 5

16

89F5

CONNECTR

17

6546563

TUBE

18

83F5

ELBOW

19

CYLINDER See Illustration GRAPPLE CYLINDER/ B18258 See Illustration UTILITY, INDUSTRIAL & FARM GRAPPLE/ B18262 See Illustration GRAPPLE CYLINDER/ TS1018 See Illustration GRAPPLE CYLINDER/ B18259

20

10H25

FITTING, GREASE 5

21

6549482

TOOTH L.H.

22

6549459

EDGE, CUTTING WELD ON BEVELED 60.40'' 60'' (1524mm)

23

6549483

TOOTH R.H.

24

17C616

BOLT 5

25

6549475

PLATE

26

6610510

TIE Was 1715312B - A

27

6552352

TUBE

28

6552353

TUBE

29

6546556

PIN 5.4''

30

6562438

SHIELD

31

6553254

PIN 4.2''

32

17C532

BOLT 5

33

RELIEF VALVE See BTI242 NLA - Was 6513594 - A

34

6598793

ORIFICE tilt control - .082'' (2,08mm)

35

6562109

STOP, SWING

36

BOLT NLA - carriage bolt - 3/8'' x 1'' - Was 7C000616B - A

37

BUCKET NLA - 60'' (1524mm) grapple

37

FORK NLA - 66'' (1676mm) grapple

38

6563678

TOOTH For 66'' (1676mm) Fork Grapple

39

14J3724

PIN

40

17C652

BOLT

40

17C680

BOLT

41

25E17

WASHER 5

42

6647668

KNOB

43

6563831

BUSHING

44

6669284

ADAPTER, COUPLER Use with flush face couplers
