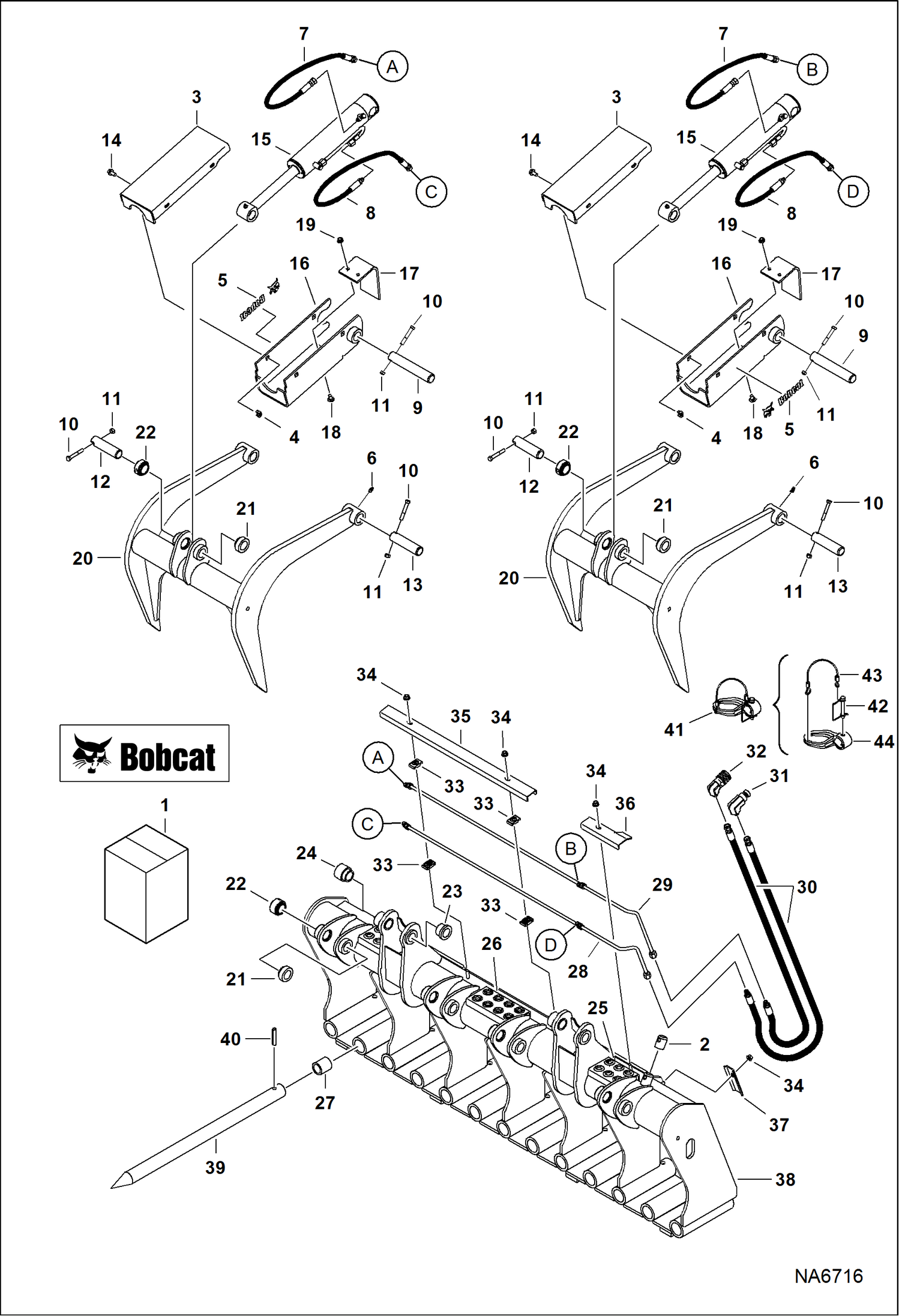

Запчасти Bobcat GRAPPLES INDUSTRIAL GRAPPLE FORK 66 (Single Piece Tubelines) (66 AF0U02283 & Above) Loader

1

GRAPPLE ASSY SALES #7168344 - 66'' - Ref. 2-41

2

7170300

PIN, PIVOT

3

7212774

COVER, TOP W/A

4

6685663

NUT, RETAINING

5

7109473

DECAL, LOGO BOBCAT AND HEAD

6

10H25

FITTING, GREASE 5

7

7211134

HOSE, HYD ASSY

8

7211133

HOSE, HYD ASSY

9

6531433

PIN

10

17C640

BOLT 5

11

85D6

NUT, 5

12

6577954

PIN, PIVOT

13

6547595

PIN

14

31C612

BOLT

15

7212595

CYLINDER , GRAPPLE See Illustration GRAPPLE CYLINDER/ NA6367

16

7212772

COVER, BOTTOM

17

7162805

COVER, HOSE

18

37C616

BOLT

19

57D6

NUT 5

20

7215338

TOOTH ASSY, GRAPPLE

21

6555989

BUSHING

22

6555987

BUSHING

23

7163277

BUSHING

24

7163271

BUSHING

25

6701943

STEP

26

6905990

STEP

27

7182791

SPACER

28

7215314

TUBELINE, HYD

29

7215315

TUBELINE, HYD

30

7167290

HOSE, HYD

31

7167304

COUPLER, MALE

32

7167305

COUPLER, FEMALE

33

7115645

CLAMP

34

83D6

NUT 5

35

7163831

COVER, TUBELINE

36

7163832

COVER, TUBELINE

37

6704665

CLAMP

38

FRAME NSS - Order Ref. 1

39

7164799

TOOTH, FORK 876 mm (34.5'') long - Use W/O Ref. 27 spacer

39

6706294

TOOTH, FORK PALLET 806 mm (31.74'') long - Use W/Ref. 27 spacer

40

6706313

PIN

41

7161953

GUIDE, HOSE ASSY Ref. 42-44

42

7161559

PIN, SNAPPER

43

CABLE ASSY NSS - 304,8 mm (12'') long - Order 6558309 wire rope & (2) 6558310 sleeve

43

6558309

WIRE ROPE bulk - sold per foot

43

6558310

SLEEVE

44

GUIDE NSS - Order Ref. 41
