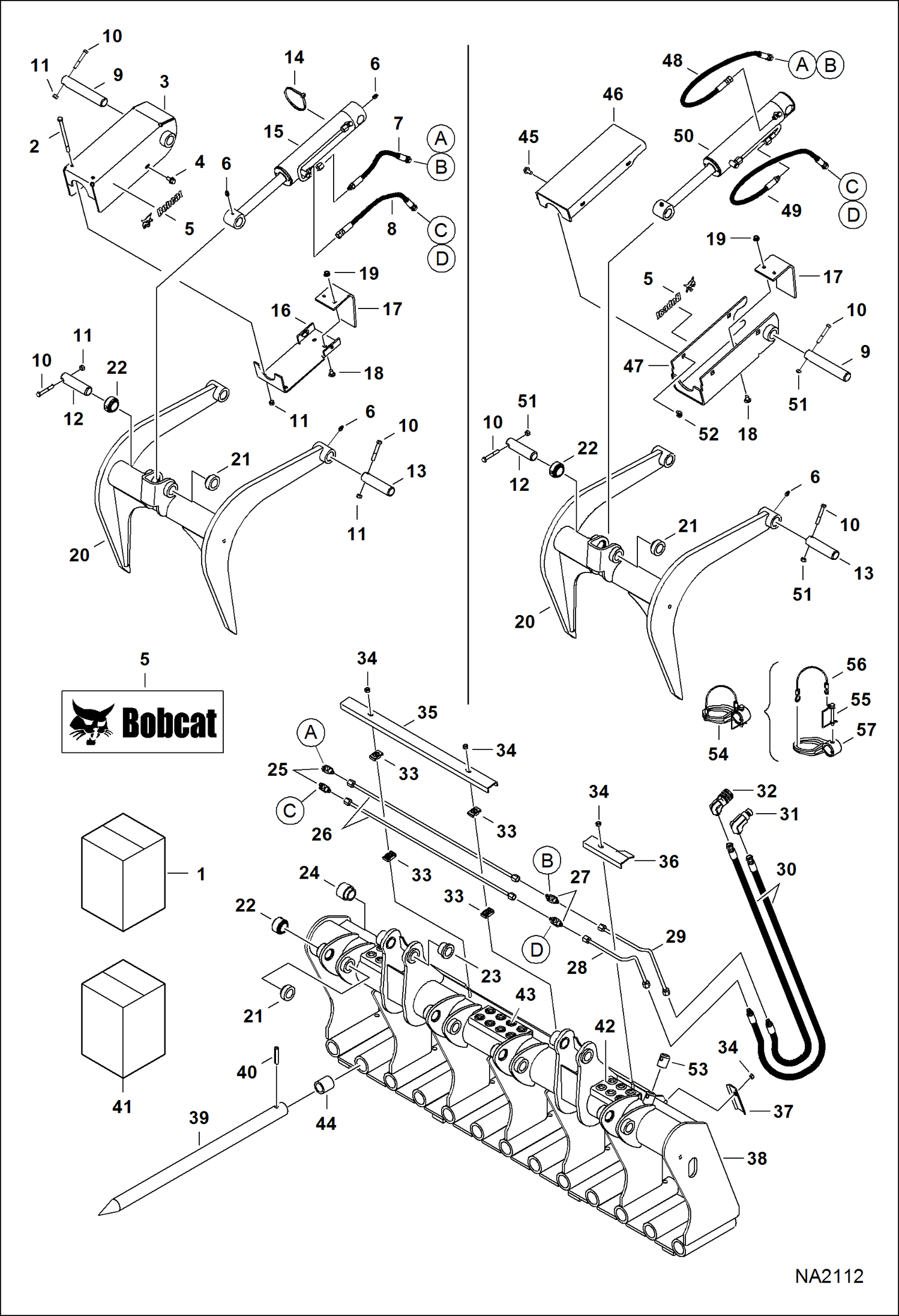

Запчасти Bobcat GRAPPLES INDUSTRIAL GRAPPLE FORK 66 (Two Piece Tubelines) (66 AF0U00101 - 02282) Loader

1

GRAPPLE ASSY SALES #7168344 - 66'' - Ref. 2-54

2

17C688

BOLT Was 17C696 - B

3

COVER, TOP W/A See Illustration GRAPPLE SEVERE DUTY KIT/ NA6371 - NLA - Order 7214249 kit - Was 7182727 - A

4

35C612

BOLT

5

7109473

DECAL, LOGO BOBCAT AND HEAD

6

10H25

FITTING, GREASE 5

7

HOSE See Illustration GRAPPLE SEVERE DUTY KIT/ NA6371 - NLA - Order 7214249 kit - Was 7162706 - A

8

HOSE See Illustration GRAPPLE SEVERE DUTY KIT/ NA6371 - NLA - Order 7214249 kit - Was 7162707 - A

9

6531433

PIN

10

17C640

BOLT 5

11

81D6

NUT

12

6577954

PIN, PIVOT

13

6547595

PIN

14

6624289

STRAP, TIE

15

CYLINDER ASSY, HYD See Illustration CYLINDER/ PE3041A

16

COVER, BOTTOM See Illustration GRAPPLE SEVERE DUTY KIT/ NA6371 - NLA - Order 7214249 kit - Was 7163270 - A

17

7162805

COVER, HOSE

18

37C616

BOLT Was 37C612 - B,D

19

57D6

NUT 5

20

TOOTH ASSY, GRAPPLE See Illustration INDUSTRIAL GRAPPLE FORK 66''/ NA6716 - NLA - Order 7215338 tooth assy - Was 7163833 - A

21

6555989

BUSHING

22

6555987

BUSHING

23

7163277

BUSHING

24

7163271

BUSHING

25

77F5

FITTING

26

7162811

TUBELINE

27

10K5

TEE

28

7162812

TUBELINE

29

7162813

TUBELINE

30

7167290

HOSE, HYD

31

7167304

COUPLER, MALE

32

7167305

COUPLER, FEMALE

33

7115645

CLAMP

34

83D6

NUT 5 Was 85D6 - B

35

7163831

COVER, TUBELINE

36

7163832

COVER, TUBELINE

37

6704665

CLAMP

38

FRAME NSS - Order Ref. 1

39

7164799

TOOTH, FORK 876 mm (34.5'') long - Use W/O Ref. 44 spacer

39

6706294

TOOTH, FORK PALLET 806 mm (31.74'') long - Use W/Ref. 44 spacer

40

6706313

PIN

41

7168559AR

KIT, TRANSLATION Spanish (Argentina)

41

7168559BR

KIT, TRANSLATION Portugese (Brazil)

42

6701943

STEP

43

6905990

STEP

44

7182791

SPACER

45

31C612

BOLT

46

7212774

COVER, TOP W/A

47

7212772

COVER, BOTTOM

48

7211134

HOSE, HYD ASSY

49

7211133

HOSE, HYD ASSY

50

7212595

CYLINDER , GRAPPLE See Illustration GRAPPLE CYLINDER/ NA6367

51

85D6

NUT, 5

52

6685663

NUT, RETAINING

53

7170300

PIN, PIVOT

54

7161953

GUIDE, HOSE ASSY Ref. 55-57 - if equipped

55

7161559

PIN, SNAPPER

56

CABLE ASSY NSS - 304,8 mm (12'') long - Order 6558309 wire rope & (2) 6558310 sleeve

56

6558309

WIRE ROPE bulk - sold per foot

56

6558310

SLEEVE

57

GUIDE NSS - Order Ref. 54
