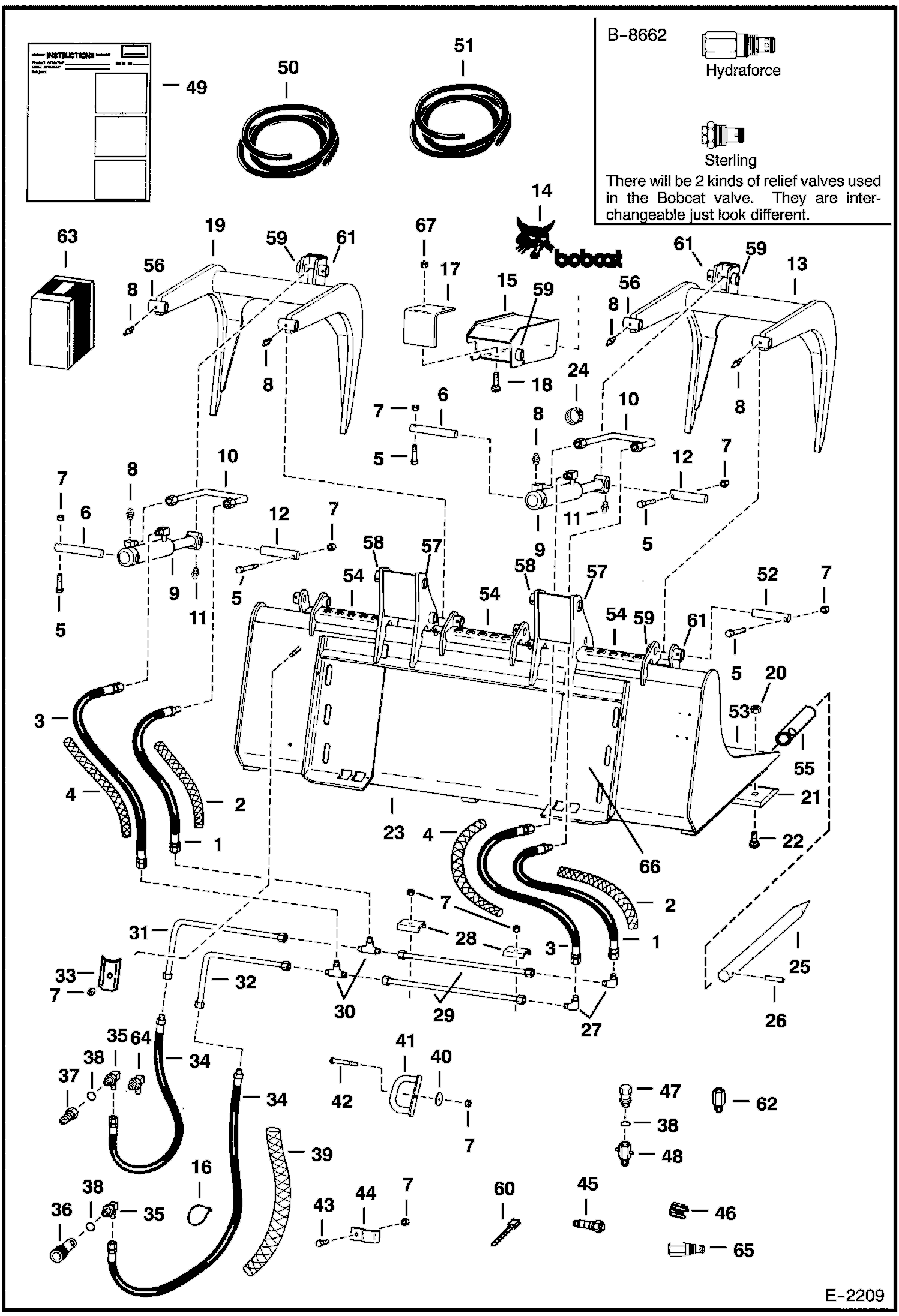

Запчасти Bobcat GRAPPLES INDUSTRIAL GRAPPLE (W/Bolt on Cutting Edge) (60Bucket 6599) (66Bucket 4770) (66Fork 4255, 6305) (72Bucket 4561) Loader

1

6714474

HOSE Was 6706591 - A

2

HOSE COVER NLA - 419 mm (16.5'') long - Order Ref. 50

3

6714475

HOSE, HYD ASSY Was 6706592 - A

4

HOSE COVER NLA - 457 mm (18'') long - Order Ref. 50

5

17C632

BOLT 5

6

6704652

PIN 203 mm (8'') long

7

85D6

NUT, 5

8

10H25

FITTING, GREASE 5

9

CYLINDER See Illustration UTILITY, INDUSTRIAL & FARM GRAPPLE/ B18262

10

6577936

TUBE

11

11H15

GREASE FITTING Was 11H000025B - B

12

6704650

PIN 106,7 mm (4.2'') long

13

6704702

GRAPPLE, ASSY R.H.

14

6727323

DECAL, LOGO BOBCAT AND HEAD LH - Was 6567987 - A

14

6727324

DECAL, LOGO BOBCAT AND HEAD RH - Was 6567988 - A

14

7109473

DECAL, LOGO BOBCAT AND HEAD Use on both sides

15

7131087

CYLINDER SHIELD Was 6713673 - A

16

6624289

STRAP, TIE

17

6706559

HOSE COVER

18

37C616

BOLT

19

6704699

GRAPPLE, ASSY L.H.

20

85D12

NUT, 5

21

6704666

CUTTING EDGE For 66'' grapple - 152 mm (6'') wide x 19 mm (.75'') thick - 11 holes

21

6706052

CUTTING EDGE For 60'' grapple - 152 mm (6'') wide x 19 mm (.75'') thick - 9 holes

21

6714565

CUTTING EDGE For 72'' grapple - 152 mm (6'') wide x 19 mm (.75'') thick - 13 holes

22

39C1232

BOLT Was 6704670 - A

23

BUCKET NLA - grapple - 66'' - Was SALES #6704770 - D

23

BUCKET NLA - grapple - 60'' - Was SALES #6706599 - D

23

FORK NLA - grapple - 66'' - Was SALES #6714255 - D

23

BUCKET NLA - grapple - 72'' - Was SALES #6714561 - D

23

BUCKET, GRAPPLE IND NLA - 66'' - Was 7121655 - A

24

42H44

HOSECLAM5 Was 42H000040B - B

25

6706294

TOOTH, FORK PALLET For 66'' grapple - 44,5 mm (1.75'') dia x 806,3 mm (31.74'') long

26

6706313

PIN

27

77F5

FITTING

28

6704664

CLAMP

29

6704657

TUBE

30

10K5

TEE

31

6704659

TUBELINE, HYD

32

6704658

TUBELINE, HYD

33

6704665

CLAMP 127 mm (5'') long

34

6714476

HOSE, HYD ASSY 1359 mm (53.5'') long - Use W/ 740, 750 series & large frame loaders

34

6714477

HOSE, HYD ASSY 1207 mm (47.5'') long - Use W/ 763, 773, 7753, 853, 863, 873 & medium frame loaders

35

1300913

ELBOW Use with poppet couplers

35

17KB0612

FITTING, HYD ELBOW Use with flush face couplers - Was 6589193 - B

36

6598758

COUPLER, POPPET FEMALE straight - W/Ref. 38

36

6672960

COUPLER, FF FEMALE straight - Was 6667807 - A

37

6598757

COUPLER, POPPET MALE straight - W/Ref. 38

37

6674688

COUPLER, FF MALE straight - Was 6667808 - A

37

6679841

SEAL Was 6672026 - A

38

79K10

O RING 10 Use with poppet couplers

38

79K12

O RING 10 Use with flush face couplers

39

HOSE COVER NLA - (1372 mm) 54'' long - Order Ref. 51

40

872229

WASHER

41

6706160

GUIDE

42

37C648

BOLT Use on 540's, 640's & 740's

42

37C656

BOLT Use on 750's

42

37C664

BOLT Use on 7753 & 850's

43

17C616

BOLT 5

44

6706653

CLAMP

45

6684679

RELIEF VALVE See Note - Was 6666931 - A

45

6658127

RELIEF VALVE See Note

46

6579152

RESTRICTOR Dump Speed

47

6631698

RESTRICTOR Throttle - for 540's, 640's & 740's

48

1312113

FTG swivel - for 540's, 640's & 740's

49

6722765

INSTRUCTIONS

50

6649389

HOSE COVER Bulk - Sold Per Foot

51

6656155

HOSE COVER bulk - sold per foot

52

6551663

PIN, PIVOT

53

6706051

EDGE, CUTTING WELD ON 60'' 60'' - weld on

53

6704703

EDGE, CUTTING WELD ON 66'' 66'' - weld on

53

6714566

EDGE, CUTTING WELD-ON 74'' 72'' - weld on

54

6704710

STEP weld on

55

6706299

TUBE fork - weld on

56

6563831

BUSHING weld on

57

6705218

BUSHING weld on

58

6705219

BUSHING weld on

59

6549146

BUSHING weld on

60

6610510

TIE

61

6549186

BUSHING weld-on

62

6672503

VALVE installs on rod end of cylinder between hose and cylinder elbow

63

6718965AR

KIT translation

63

6718965BR

KIT translation

63

6722765AR

INSTRUCTIONS translated

63

6722765BR

INSTRUCTIONS translated

64

6678056

ELBOW W/built-in 1,7 mm (.070'') orifice

65

6678574

RELIEF VALVE

66

6811487

FRAME utility

67

57D6

NUT 5
