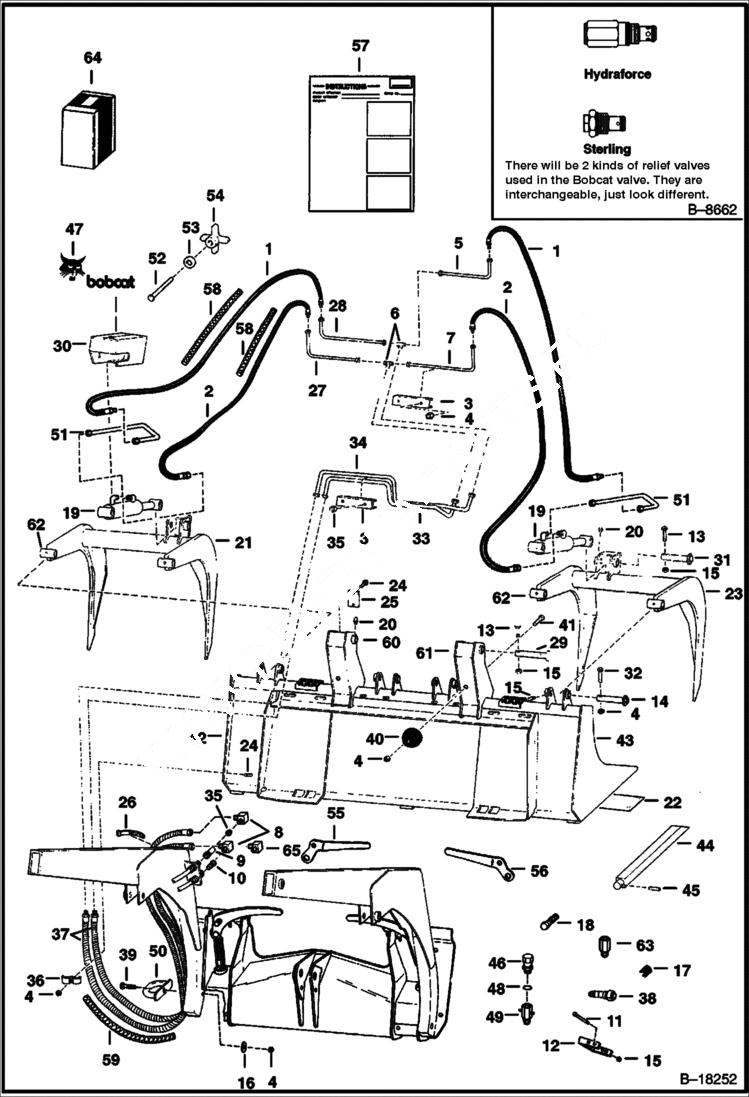

Запчасти Bobcat GRAPPLES INDUSTRIAL GRAPPLE - 800 Series Loader

1

6704267

HOSE

2

6704268

HOSE

3

6555367

CHANNEL

4

85D6

NUT, 5

5

6552351

TUBE

6

10K5

TEE

7

6552354

TUBE

8

1300913

ELBOW Use with poppet couplers

8

6589193

ELBOW Use with flush face couplers

9

6598758

COUPLER, POPPET FEMALE straight

9

6672960

COUPLER, FF FEMALE straight - Was 6667807 - A

9

48K16

O RING 10 Use with poppet coupler

10

6598757

COUPLER, POPPET MALE straight

10

6674688

COUPLER, FF MALE straight - 117,3 mm (4.62'') long - Was 6667808 - A

10

6674688

COUPLER, FF MALE straight - 117,3 mm (4.62'') long

10

6679841

SEAL Was 6672026 - A

11

17C588

BOLT

12

6559558

CLAMP

13

17C528

BOLT

14

6551663

PIN, PIVOT

15

85D5

NUT 5

16

872229

WASHER

17

6579152

RESTRICTOR

18

6658127

RELIEF VALVE

19

CYLINDER See Illustration GRAPPLE CYLINDER/ B18258 See Illustration UTILITY, INDUSTRIAL & FARM GRAPPLE/ B18262 See Illustration GRAPPLE CYLINDER/ TS1018 See Illustration GRAPPLE CYLINDER/ B18259

20

10H25

FITTING, GREASE 5

21

6549482

TOOTH L.H.

22

6549459

EDGE, CUTTING WELD ON BEVELED 60.40'' 60'' (1524mm)

23

6549483

TOOTH R.H.

24

17C616

BOLT 5

25

6549475

PLATE

26

6610510

TIE Was 1715312B - A

27

6552352

TUBE

28

6552353

TUBE

29

6546556

PIN 5.5'' x .875''

30

6562438

SHIELD

31

6553254

PIN 4.2''

32

17C632

BOLT 5

33

6578948

TUBE Was 6559560 - A

34

6578947

TUBE Was 6559559 - A

35

6660556

ORIFICE Use with poppet couplers

35

6668115

ORIFICE Use with flush face couplers - do not use with 6674688 coupler

36

6563353

CLAMP

37

6704330

HOSE

38

6513594

RELIEF VALVE For Gresen Valve

38

6684679

RELIEF VALVE Bobcat Valve - Was 6666931 - A

38

6658127

RELIEF VALVE For 853 or 853H Bobcat valve with Apitec front aux. valve

39

37C660

BOLT

40

6562109

STOP, SWING

41

6557432

BOLT

42

BUCKET NLA - grapple - 60'' (1524mm) - Was SALES - A

43

FORK NLA - grapple - 66'' (1676,4mm) - See SALES

44

6563678

TOOTH For 66'' (1676,4mm) Fork Grapple

45

14J3724

PIN

46

1312113

FTG swivel

47

6727323

DECAL, LOGO BOBCAT AND HEAD LH - Was 6567987 - A

47

6727324

DECAL, LOGO BOBCAT AND HEAD RH - Was 6567988 - A

48

79K10

O RING 10

49

6631698

RESTRICTOR line throttle used to control dump speed

50

6706160

GUIDE Was 6702646 - A

51

6577936

TUBE Use with 6530564 Cylinder

52

17C652

BOLT

52

17C680

BOLT

53

25E17

WASHER 5

54

6647668

KNOB

55

6578140

LEVER Bob-Tach - LH

56

6578139

LEVER Bob-Tach - RH

57

6570801

INSTRUCTIONS

58

HOSE NLA - 19.5'' (495,3mm) long - Order 6649389

58

6649389

HOSE COVER bulk - Sold Per Foot

59

HOSE NLA - 39'' (990,6mm) long - Order 6649389

60

SPACER NLA - weld-on - Was 6502487

61

6555379

BUSHING

62

6563831

BUSHING

63

6672503

VALVE installs on rod end of cylinder between hose and cylinder elbow

64

6718969AR

KIT translation

64

6718969BR

KIT translation

64

6570801AR

INSTRUCTIONS translated

64

6570801BR

INSTRUCTIONS translated

65

6678056

ELBOW w/built-in .070'' orifice
