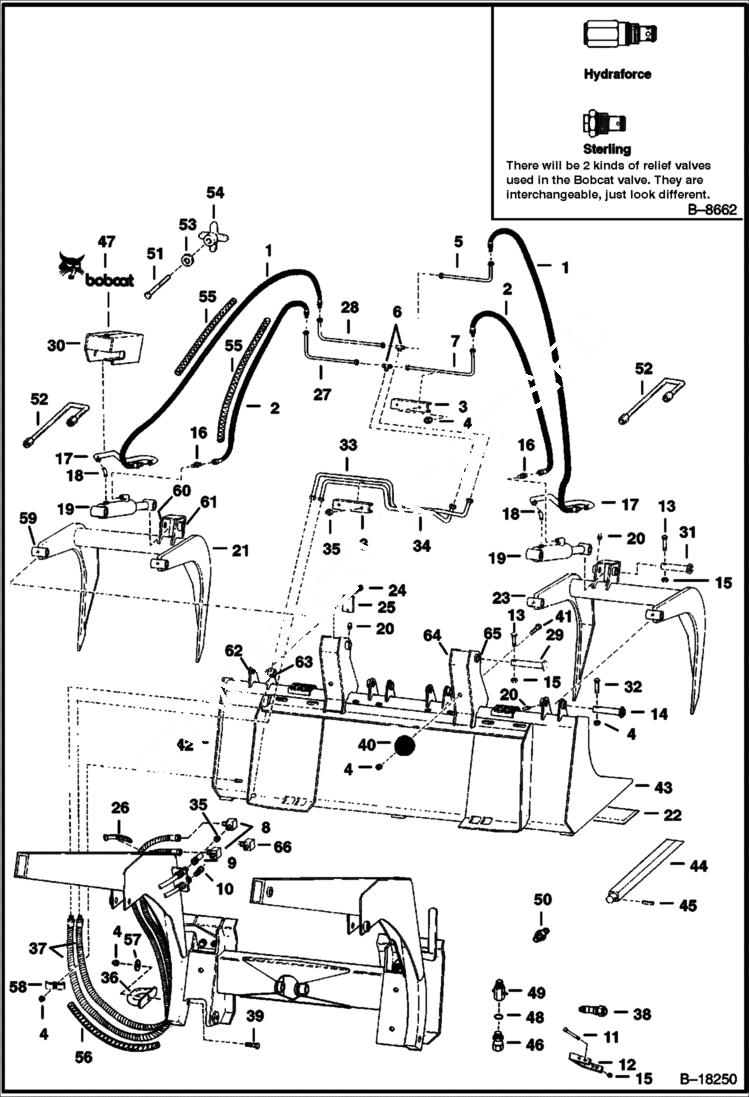

Запчасти Bobcat GRAPPLES FARM & INDUSTRIAL GRAPPLE & FARM & INDUSTRIAL FORK 800 Series Loader

1

6704267

HOSE Was 6546573 - A

2

6546574

HOSE Use with Ref. 16

2

6704268

HOSE Use without Ref. 16 - Was 6577935 - A

3

6555367

CHANNEL

4

85D6

NUT, 5

5

6552351

TUBE

6

10K5

TEE

7

6552354

TUBE

8

1300913

ELBOW Use with poppet couplers

8

6589193

ELBOW Use with flush face couplers

9

6598758

COUPLER, POPPET FEMALE straight

9

6672960

COUPLER, FF FEMALE straight - Was 6667807 - A

9

48K16

O RING 10 Use with poppet coupler

10

6598757

COUPLER, POPPET MALE straight

10

6674688

COUPLER, FF MALE straight - 117,3 mm (4.62'') long - Was 6667808 - A

10

6674688

COUPLER, FF MALE straight - 117,3 mm (4.62'') long

10

6679841

SEAL Was 6672026 - A

11

17C588

BOLT

12

6559558

CLAMP

13

17C528

BOLT

14

6551663

PIN, PIVOT

15

85D5

NUT 5

16

89F5

CONNECTR

17

6546563

TUBE

18

83F5

ELBOW Use W/Ref. 17

19

CYLINDER See Illustration GRAPPLE CYLINDER/ B18258 See Illustration UTILITY, INDUSTRIAL & FARM GRAPPLE/ B18262 See Illustration GRAPPLE CYLINDER/ TS1018 See Illustration GRAPPLE CYLINDER/ B18259

20

10H25

FITTING, GREASE 5

21

6549482

TOOTH L.H.

22

6549459

EDGE, CUTTING WELD ON BEVELED 60.40'' 60'' (1524mm)

23

6549483

TOOTH R.H.

24

17C616

BOLT 5

25

6549475

PLATE

26

6610510

TIE Was 1715312B - A

27

6552352

TUBE

28

6552353

TUBE

29

6546556

PIN 5.5''

30

6562438

SHIELD

31

6553254

PIN 4.2''

32

17C632

BOLT 5 Was 17C000532B - B

33

6578947

TUBE Was 6559559 - A

34

6578948

TUBE Was 6559560 - A

35

6660556

ORIFICE Use with poppet couplers

35

6668115

ORIFICE Use with flush face couplers - do not use with 6674688 coupler

36

6706160

GUIDE Was 6702646 - A

37

HOSE NLA - Order 6700340 & 4' (1219,2mm) of 6649389

37

6700340

HOSE, HYD ASSY 52'' long - Was 6704330 - A

38

6514641

RELIEF VALVE For Cessna Valve

38

6684679

RELIEF VALVE Bobcat Valve - See Note - Was 6666931 - A

39

37C660

BOLT Was 17C000660B - B

40

6562109

STOP, SWING

41

6557432

BOLT

42

BUCKET NLA - grapple - 60'' (1524mm) - Was SALES - A

43

FORK NLA - grapple - 66'' (1676mm) - Was SALES - A

44

6563678

TOOTH For 66'' (1676,4mm) Fork Grapple

45

14J3724

PIN

46

1312113

FTG swivel

47

6727323

DECAL, LOGO BOBCAT AND HEAD LH - Was 6567987 - A

47

6727324

DECAL, LOGO BOBCAT AND HEAD RH - Was 6567988 - A

48

79K10

O RING 10

49

6631698

RESTRICTOR throttle - used to control dump speed

50

RESTRICTOR NLA - used to control dump speed - Was 6662901 - A

51

17C652

BOLT

51

17C680

BOLT

52

6577936

TUBE Use with 6530564 Cylinder

53

25E17

WASHER 5

54

6647668

KNOB

55

HOSE NLA - 19.5'' (495mm) long - order 6649389

55

6649389

HOSE COVER bulk - Sold Per Foot

56

HOSE NLA - 39'' (991mm) long - Order 6649398

57

872229

WASHER

58

6563353

CLAMP

59

6563831

BUSHING

60

6503743

BUSHING

61

6503188

BUSHING

62

6549186

BUSHING

63

6549146

BUSHING

64

6555379

BUSHING

65

SPACER NLA - weld-on - Was 6502487

66

6678056

ELBOW w/built-in .070'' orifice
