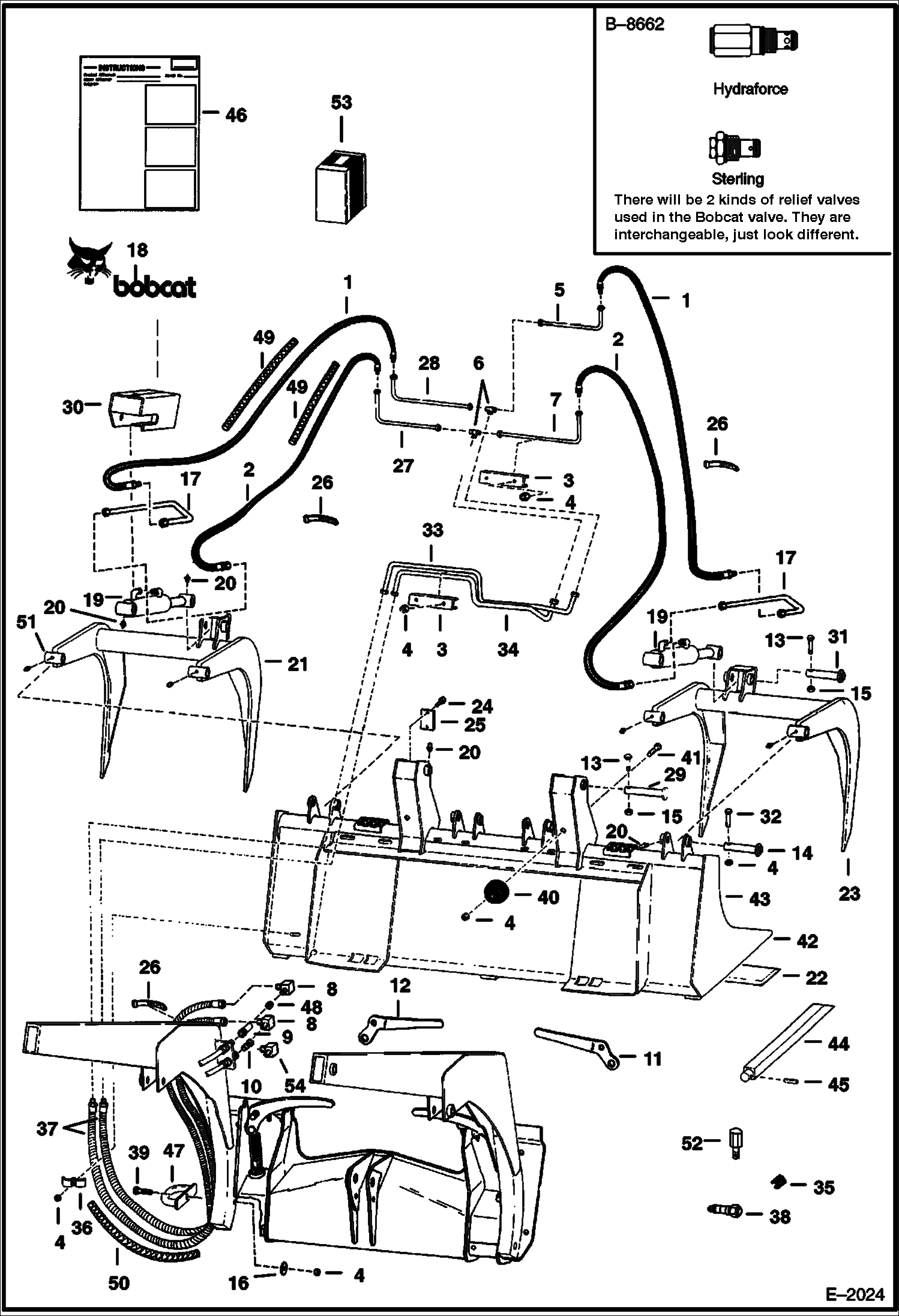

Запчасти Bobcat GRAPPLES INDUSTRIAL GRAPPLE - 750 Series Loader

1

6704267

HOSE Was 6546573 - A

2

6704268

HOSE Was 6577935 - A

3

6555367

CHANNEL

4

85D6

NUT, 5 Was 61D000006B - B

5

6552351

TUBE

6

10K5

TEE

7

6552354

TUBE

8

1300913

ELBOW Use with poppet couplers

8

6589193

ELBOW Use with flush face couplers

9

6598758

COUPLER, POPPET FEMALE straight

9

6672960

COUPLER, FF FEMALE straight - Was 6667807 - A

9

48K16

O RING 10 Use with poppet coupler

10

6598757

COUPLER, POPPET MALE straight

10

6674688

COUPLER, FF MALE straight - Was 6667808 - A

10

6679841

SEAL Was 6672026 - A

11

6578139

LEVER RH

12

6578140

LEVER LH

13

17C528

BOLT

14

6551663

PIN, PIVOT

15

85D5

NUT 5

16

872229

WASHER Was 27E000006B - B

17

6577936

TUBE

18

6727323

DECAL, LOGO BOBCAT AND HEAD LH - Was 6567987 - A

18

6727324

DECAL, LOGO BOBCAT AND HEAD RH - Was 6567988 - A

19

CYLINDER See Illustration GRAPPLE CYLINDER/ TS1018

20

10H25

FITTING, GREASE 5

21

6549482

TOOTH L.H.

22

6549459

EDGE, CUTTING WELD ON BEVELED 60.40'' 60'' (1524mm)

23

6549483

TOOTH R.H.

24

17C616

BOLT 5

25

6549475

PLATE

26

6610510

TIE Was 1715312B - A

27

6552352

TUBE

28

6552353

TUBE

29

6546556

PIN 5.5''

30

6562438

SHIELD

31

6553254

PIN 4.2''

32

17C632

BOLT 5 Was 17C000532B - B

33

6578947

TUBE

34

6578948

TUBE

35

6579152

RESTRICTOR dump speed - .096'' (2,44mm) Dia. - Was 6672503 - D

36

6563353

CLAMP

37

6700340

HOSE, HYD ASSY 52'' long - Was 6571517 - A

38

6684679

RELIEF VALVE See Note - Was 6666931 - A

39

37C652

BOLT Was 17C000660B - B

40

6562109

STOP, SWING

41

6557432

BOLT

42

BUCKET NLA - 60'' (1524mm) - See SALES

43

FORK NLA - 66'' (1676mm) - See SALES

44

6563678

TOOTH For 66'' (1676mm) Fork Grapple

45

14J3724

PIN

46

6570801

INSTRUCTIONS

47

6706160

GUIDE Was 6702646 - A

48

6660556

ORIFICE .07''(1,78mm) Dia-.875'' threads used with poppet couplers

48

6668115

ORIFICE .07''(1,78mm) Dia-1.06'' threads used with flush face couplers - do not use with 6674688 coupler

49

HOSE NLA - 19.5'' (495mm) long - Order 6649389

49

6649389

HOSE COVER bulk - Sold Per Foot

50

HOSE NLA - 39'' (991mm) long - Order 6649389

51

6563831

BUSHING

52

6672503

VALVE install on rod end of tilt cylinder between hose & cylinder elbow

53

6718969AR

KIT translation

53

6718969BR

KIT translation

53

6570801AR

INSTRUCTIONS translated

53

6570801BR

INSTRUCTIONS translated

54

6678056

ELBOW w/built-in .070'' orifice
