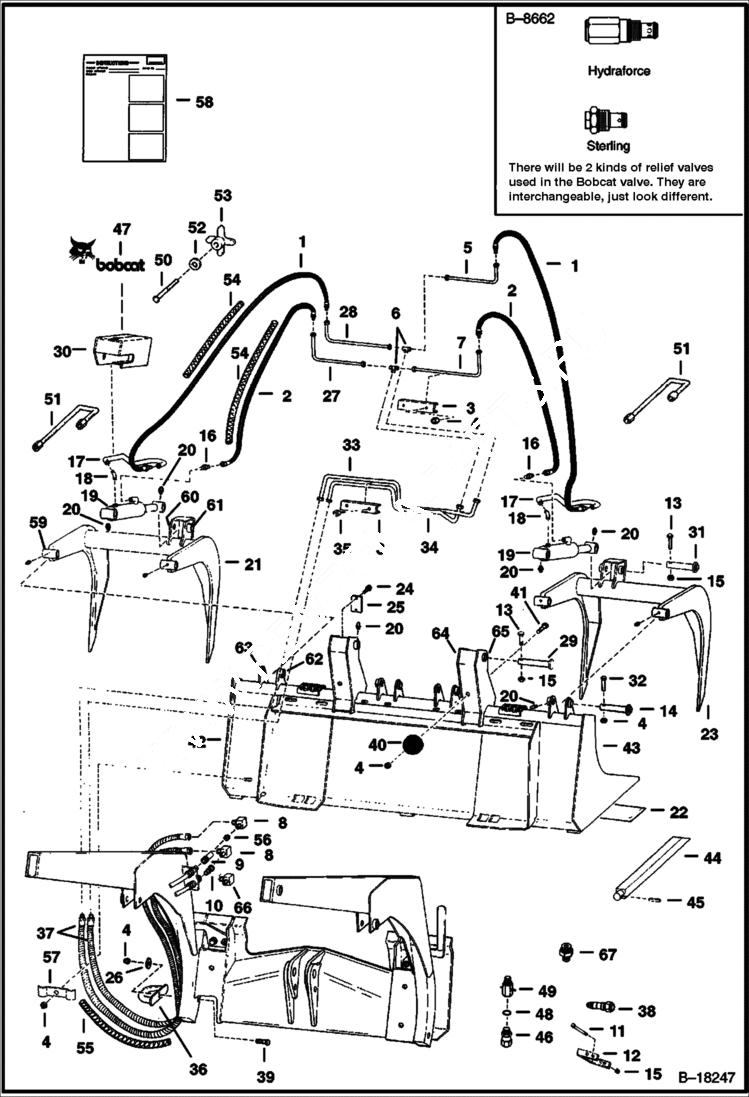

Запчасти Bobcat GRAPPLES INDUSTRIAL GRAPPLE - 730 Series & 740 Series Loader

1

6704267

HOSE Was 6546573 - A

2

6546574

HOSE Use with Ref. 16

2

6704268

HOSE Use without Ref. 16 - Was 6577935 - A

3

6555367

CHANNEL

4

85D6

NUT, 5

5

6552351

TUBE

6

10K5

TEE

7

6552354

TUBE

8

1300913

ELBOW Use with poppet couplers

8

6589193

ELBOW Use with flush face couplers

9

6598758

COUPLER, POPPET FEMALE straight

9

6672960

COUPLER, FF FEMALE straight - Was 6667807 - A

9

48K16

O RING 10 Use with poppet coupler

10

6598757

COUPLER, POPPET MALE straight

10

6674688

COUPLER, FF MALE straight - Was 6667808 - A

10

6679841

SEAL Was 6672026 - A

11

17C588

BOLT

12

6559558

CLAMP

13

17C528

BOLT

14

6551663

PIN, PIVOT

15

85D5

NUT 5

16

89F5

CONNECTR

17

6546563

TUBE

18

83F5

ELBOW Use W/Ref 17

19

CYLINDER See Illustration GRAPPLE CYLINDER/ TS1018

20

10H25

FITTING, GREASE 5

21

6549482

TOOTH L.H.

22

6549459

EDGE, CUTTING WELD ON BEVELED 60.40'' 60''

23

6549483

TOOTH R.H.

24

17C616

BOLT 5

25

6549475

PLATE

26

872229

WASHER Was 1715312B - A

27

6552352

TUBE

28

6552353

TUBE

29

6546556

PIN 5.5''

30

6562438

SHIELD

31

6553254

PIN 4.2''

32

17C632

BOLT 5 Was 17C000532B - B

33

6578947

TUBE Was 6559559 - A

34

6578948

TUBE Was 6559560 - A

35

85D6

NUT, 5 Was 61D000006B - B

36

6706160

GUIDE Was 6702646 - A

37

6700340

HOSE, HYD ASSY 52'' long - Was 6571517 - A

38

RELIEF VALVE NLA - For Gresen Valve - Was 6513594 - A

38

6684679

RELIEF VALVE Bobcat Valve - See Note - Was 6666931 - A

39

37C660

BOLT Was 17C000660B - B

40

6562109

STOP, SWING

41

6557432

BOLT

42

BUCKET NLA - grapple - 60'' (1524mm) - See SALES

43

FORK NLA - grapple - 66'' (1676,4mm) - See SALES

44

6563678

TOOTH For 66'' Fork Grapple

45

14J3724

PIN

46

1312113

FTG swivel

47

6727323

DECAL, LOGO BOBCAT AND HEAD LH - Was 6567987 - A

47

6727324

DECAL, LOGO BOBCAT AND HEAD RH - Was 6567988 - A

48

79K10

O RING 10

49

6631698

RESTRICTOR

50

17C652

BOLT

50

17C680

BOLT

51

6577936

TUBE Use with 6530564 Cylinder

52

25E17

WASHER 5

53

6647668

KNOB

54

HOSE NLA - 19.5'' (495,3mm) long - Order 6649389

54

6649389

HOSE COVER bulk - Sold Per Foot

55

HOSE NLA - 39'' (990,6mm) long - Order 6649389

56

6660556

ORIFICE .07''(1,78mm) Dia-.875'' threads used with poppet couplers

56

6668115

ORIFICE .07''(1,78mm) Dia-1.06'' threads used with flush face couplers - do not use with 6674688 coupler

57

6563353

CLAMP

58

6556689

INSTRUCTIONS

59

6563831

BUSHING

60

6503743

BUSHING

61

6503188

BUSHING

62

6549186

BUSHING

63

6549146

BUSHING

64

6555379

BUSHING

65

SPACER NLA - weld-on - Was 6502487

66

6678056

ELBOW w/built-in .070'' orifice

67

RESTRICTOR NLA - used to control dump speed - Was 6662901 - A
