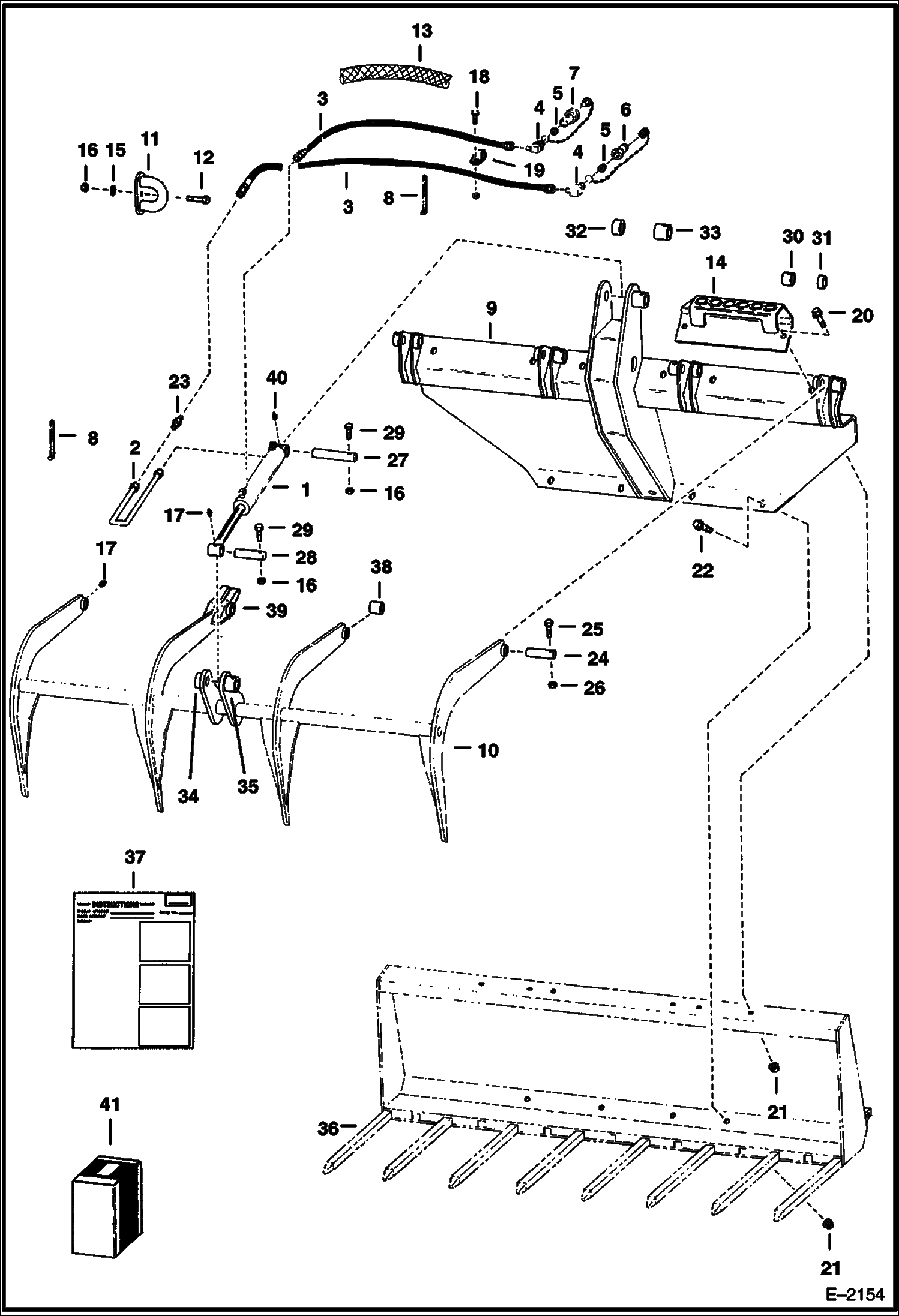

Запчасти Bobcat GRAPPLES GRAPPLE FORK - 500 thru 700 Series New Loader

1

CYLINDER See Illustration GRAPPLE CYLINDER/ B18258 See Illustration UTILITY, INDUSTRIAL & FARM GRAPPLE/ B18262 See Illustration GRAPPLE CYLINDER/ TS1018 See Illustration GRAPPLE CYLINDER/ B18259

2

6577936

TUBE

3

6563438

HOSE 86'' (2184,4mm) long

3

6705360

HOSE 92'' (2337mm) long

4

1300913

ELBOW Use with poppet couplers

4

6589193

ELBOW Use with flush face couplers

5

79K10

O RING 10 Use with poppet couplers

5

79K12

O RING 10 Use with flush face couplers

6

6598757

COUPLER, POPPET MALE straight

6

6674688

COUPLER, FF MALE straight - Was 6667808 - A

6

6679841

SEAL Was 6672026 - A

7

6598758

COUPLER, POPPET FEMALE straight

7

6672960

COUPLER, FF FEMALE straight - Was 6667807 - A

8

6624289

STRAP, TIE

9

6704087

MOUNT

10

6704096

TEETH

11

6706160

GUIDE Was 6702646 - A

12

7C656

BOLT

13

HOSE COVER NLA - 85'' (2159mm) long - Order 6656155

13

6656155

HOSE COVER bulk - Sold Per Foot - Was 6652367 - B

14

6704081

STEP

15

872229

WASHER Was 25E000017B - B

16

85D6

NUT, 5

17

11H15

GREASE FITTING

18

84G3716

SCREW 5

19

31H38

CLAMP

20

31C820

BOLT

21

57D8

NUT 10

22

31C816

BOLT

23

87F5

FITTING

24

6704333

PIN

25

17C528

BOLT

26

85D5

NUT 5

27

6704649

PIN

28

6704650

PIN

29

17C632

BOLT 5

30

6503188

BUSHING Bolt Hole

31

6503743

BUSHING Was 6703743 - A

32

6704648

BUSHING

33

6704647

BUSHING

34

6549146

BUSHING

35

6549186

BUSHING

36

6561665

TOOTH square

36

6702643

TOOTH, FORK round

37

6722356

INSTRUCTIONS

38

6505197

BUSHING

39

6705163

STOP

40

10H25

FITTING, GREASE 5

41

6718968AR

KIT translation

41

6718968BR

KIT translation

41

6722356AR

INSTRUCTIONS translated

41

6722356BR

INSTRUCTIONS translated
