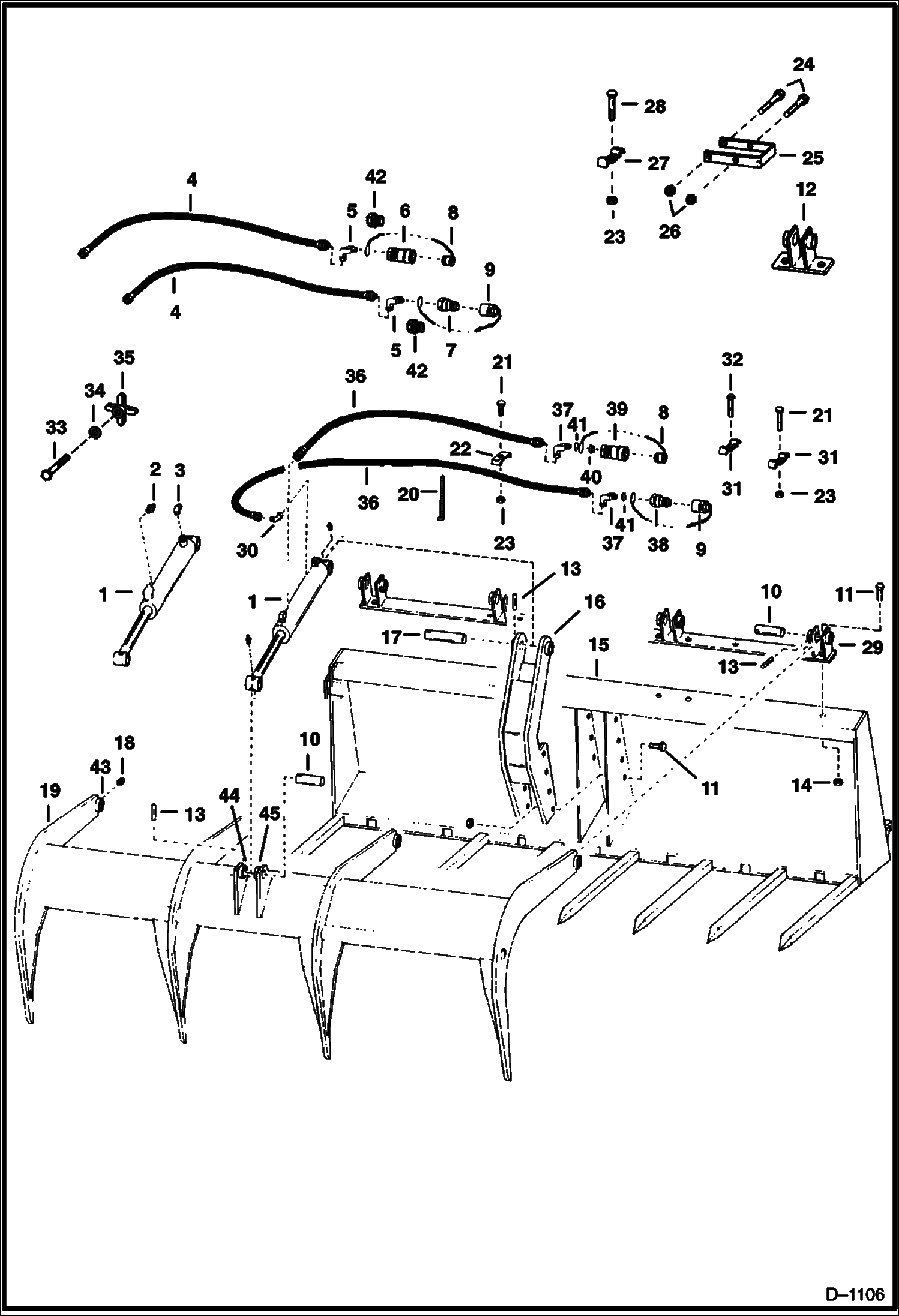

Запчасти Bobcat GRAPPLES FARM GRAPPLE FORK - 500 Series Loader

1

CYLINDER See Illustration GRAPPLE CYLINDER/ B18258 See Illustration UTILITY, INDUSTRIAL & FARM GRAPPLE/ B18262 See Illustration GRAPPLE CYLINDER/ TS1018 See Illustration GRAPPLE CYLINDER/ B18259

2

89F5

CONNECTR

3

83F5

ELBOW

4

6557124

HOSE

5

29F3

ELBOW

6

6598756

QUICK COUPLER Female - poppet with 1/2'' pipe threads

6

25K40026

O RING 10

6

6672960

COUPLER, FF FEMALE straight - Was 6667807 - A

7

6598755

QUICK COUPLER Male - poppet with 1/2'' pipe threads

7

6674688

COUPLER, FF MALE straight - Was 6667808 - A

7

6679841

SEAL Was 6672026 - A

8

6515167

PLUG

9

6515168

CAP

10

6505199

PIN

11

17C820

BOLT

12

6505124

BRACKET Inside

12

6508592

BRACKET Outside

13

742953

ROLL PIN

14

85D8

NUT, 5

15

FORK See Illustration UTILITY FORK - 500 Series/ C1477 UTILITY

16

6505126

MOUNT

17

6505198

PIN

18

10H25

FITTING, GREASE 5

19

6554629

TEETH

20

6610510

TIE Was 1715312 - A

21

17C628

BOLT

22

6502773

CLAMP

23

85D6

NUT, 5

24

17C572

BOLT

25

6557125

CLAMP

26

85D5

NUT 5

27

6563353

CLAMP

28

17C644

BOLT

29

BRACKET NLA - 1 Piece - Order 6576260 - Was 6563467

29

BRACKET NLA - 2 Piece Bolt On - Order 6576260

29

6576260

BRACKET 2 Piece Weld On - See 6570386 Instructions for Welding

30

11K5

FITTING Use with 2 elbow cylinder

31

6590451

CLAMP

32

84G3728

BOLT

33

17C652

BOLT

33

17C680

BOLT

34

25E17

WASHER 5

35

6647668

KNOB

36

6563438

HOSE

37

1300913

ELBOW Use with poppet couplers

37

6589193

ELBOW Use with flush face couplers

38

6598757

COUPLER, POPPET MALE straight

38

6674688

COUPLER, FF MALE straight - Was 6667808 - A

38

6679841

SEAL Was 6672026 - A

39

6598758

COUPLER, POPPET FEMALE straight

39

6672960

COUPLER, FF FEMALE straight - Was 6667807 - A

40

6660556

ORIFICE .070''(1.778mm) Dia - .875'' threads - used with poppet coupler

40

6668115

ORIFICE .070''(1.778mm) Dia - 1.06'' threads - used with flush face coupler

41

79K10

O RING 10 Use with poppet couplers

41

79K12

O RING 10 Use with flush face couplers

42

6669284

ADAPTER, COUPLER Use to convert to flush face couplers

43

6505197

BUSHING

44

6504062

BUSHING

45

6503743

BUSHING
