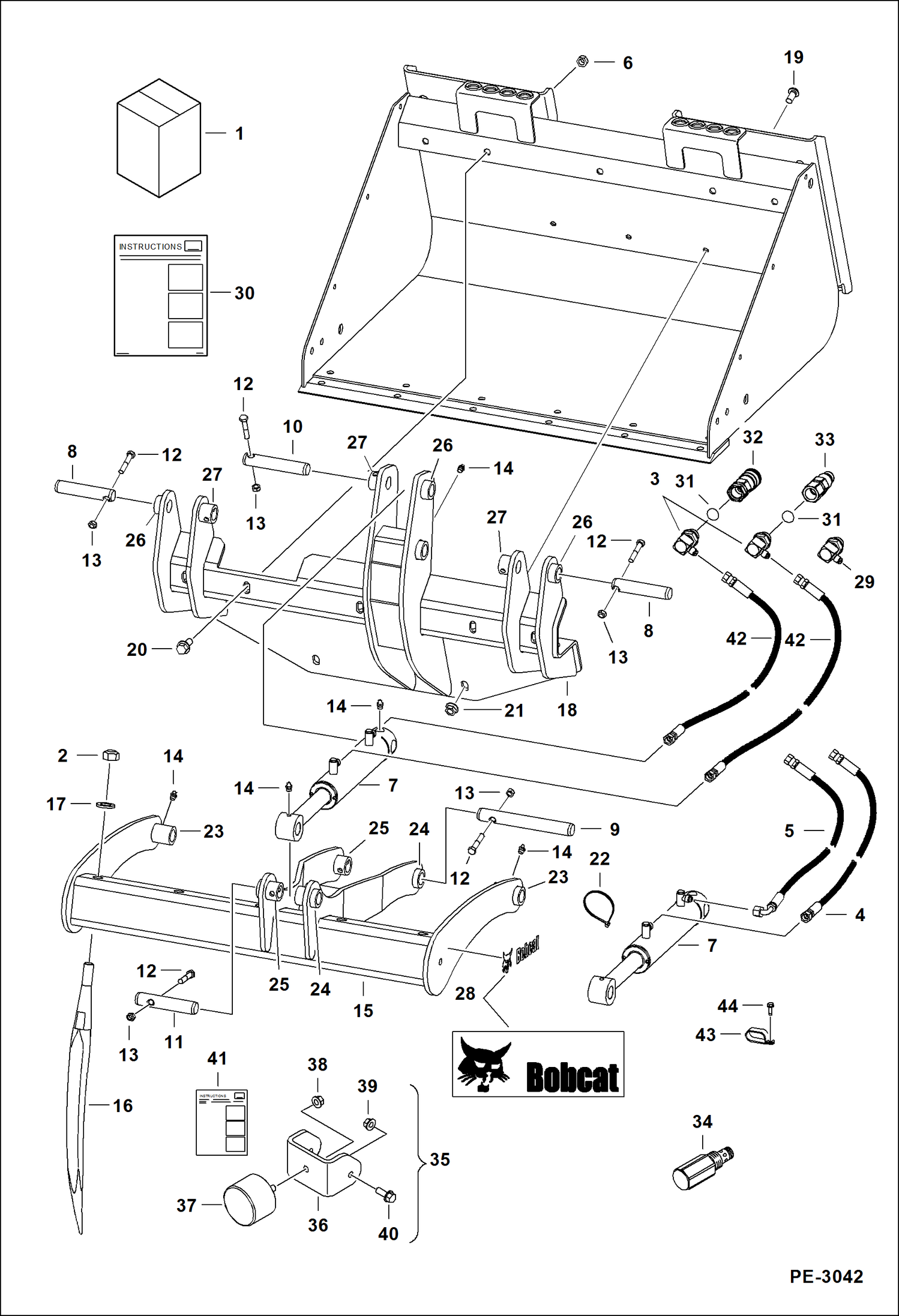

Запчасти Bobcat GRAPPLES 32 UTILITY GP GRAPPLE (Fits 36, 44, 50 & 56 General Purpose Buckets) (A2W2) Loader

1

GRAPPLE ASSY SALES #7125370 - Ref. 2-33

2

6DM20

NUT 20mm

3

17KB0612

FITTING, HYD ELBOW

4

6728635

HOSE Use W\Ref. 7 (6538415 cylinder)

5

6728636

HOSE Use W\Ref. 7 (6538415 cylinder)

6

85D8

NUT, 5 Was 85D5 - B,D

7

6538415

CYLINDER See Illustration CYLINDER/ TS1165A Use W/Ref 4 & 5

7

7136459

CYLINDER ASSY See Illustration CYLINDER/ PE3398A Use W/Ref 42

8

6551663

PIN, PIVOT pivot

9

6717474

PIN pivot

10

6704649

PIN cylinder base end

11

6718940

PIN cylinder rod end

12

17C632

BOLT 5

13

85D6

NUT, 5

14

10H25

FITTING, GREASE 5

15

6728083

TOOTH MOUNT

16

6675362

TOOTH W/nut - M20 x 1.5

17

25E27

WASHER

18

7105392

MOUNT

19

25G816

BOLT socket head

20

31C820

BOLT

21

57D8

NUT 10

22

6624289

STRAP, TIE

23

6563831

BUSHING

24

6705218

BUSHING

25

6704647

BUSHING

26

6549146

BUSHING

27

6549186

BUSHING

28

7109473

DECAL, LOGO BOBCAT AND HEAD

29

6678056

ELBOW W/built-in .070'' orifice

30

6901228

INSTRUCTIONS

31

79K12

O RING 10

32

6672960

COUPLER, FF FEMALE straight

33

6674688

COUPLER, FF MALE straight

34

6678574

RELIEF VALVE

35

6818369

KIT, GRAPPLE STOP W/Ref. 36-41 - Use W/ 5600 & 5610 toolcat

35

7120201

KIT GRAPPLE STOP W/Ref. 36-41 - Use W/ 5600 & 5610 toolcat

36

6818370

BRACKET, GRAPPLE Use W/Ref. 35 (6818369 kit)

36

7120202

BRACKET Use W/Ref. 35 (7120201 kit)

37

6692924

MOUNT ISOLATOR Was 6680152 - A

38

51DM10

NUT

39

55D6

NUT

40

35C620

BOLT 5

41

6902639

INSTRUCTIONS Use W/Ref. 35 (6818369 kit)

41

6904281

INSTRUCTIONS Use W/Ref. 35 (7120201 kit)

42

6729806

HOSE Use W/Ref. 7 (7136459 cylinder)

43

31H42

CLIP

44

84G3712

BOLT 5
