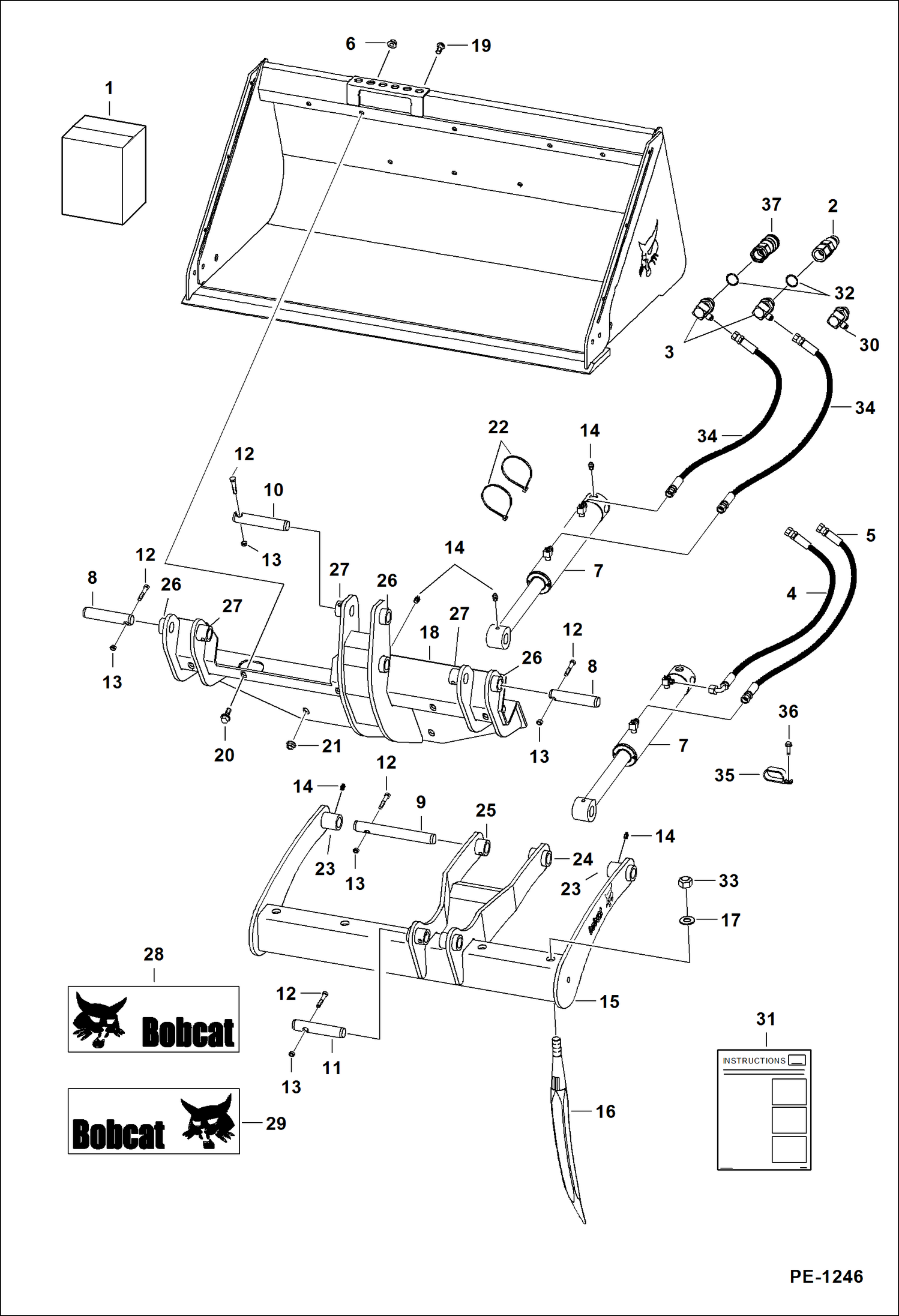

Запчасти Bobcat GRAPPLES 32 UTILITY GRAPPLE - 463 & 500 Series Loader

1

GRAPPLE ASSY SALES #6728117 - Ref. 2-37

2

6674688

COUPLER, FF MALE straight

3

17KB0612

FITTING, HYD ELBOW Was 6589193 - B

4

6728635

HOSE Use W/ 6538415 cylinder

5

6728636

HOSE Use W/ 6538415 cylinder

6

85D8

NUT, 5

7

6538415

CYLINDER See Illustration CYLINDER/ TS1165A - Use W/Ref. 4 & 5

7

7136459

CYLINDER ASSY See Illustration CYLINDER/ PE3398A - Use W/Ref. 34

8

6551663

PIN, PIVOT pivot

9

6717474

PIN pivot

10

6704649

PIN cylinder base end

11

6718940

PIN cylinder rod end

12

17C632

BOLT 5

13

85D6

NUT, 5

14

10H25

FITTING, GREASE 5

15

6728083

TOOTH MOUNT

16

6675362

TOOTH W/Ref. 33 nut

17

25E27

WASHER

18

6728087

MOUNT

19

25G816

BOLT socket head

20

31C820

BOLT

21

57D8

NUT 10

22

6624289

STRAP, TIE

23

6563831

BUSHING

24

6705218

BUSHING

25

6704647

BUSHING

26

6549146

BUSHING

27

6549186

BUSHING

28

6727323

DECAL, LOGO BOBCAT AND HEAD

29

6727324

DECAL, LOGO BOBCAT AND HEAD

29

7109473

DECAL, LOGO BOBCAT AND HEAD Use on both sides

30

6678056

ELBOW w/built-in .070'' orifice

31

6901228

INSTRUCTIONS

32

79K12

O RING 10

33

6DM20

NUT 20 mm

34

6729806

HOSE Use W/ 7136459 cylinder

35

31H42

CLIP

36

84G3716

SCREW 5

37

6672960

COUPLER, FF FEMALE straight
