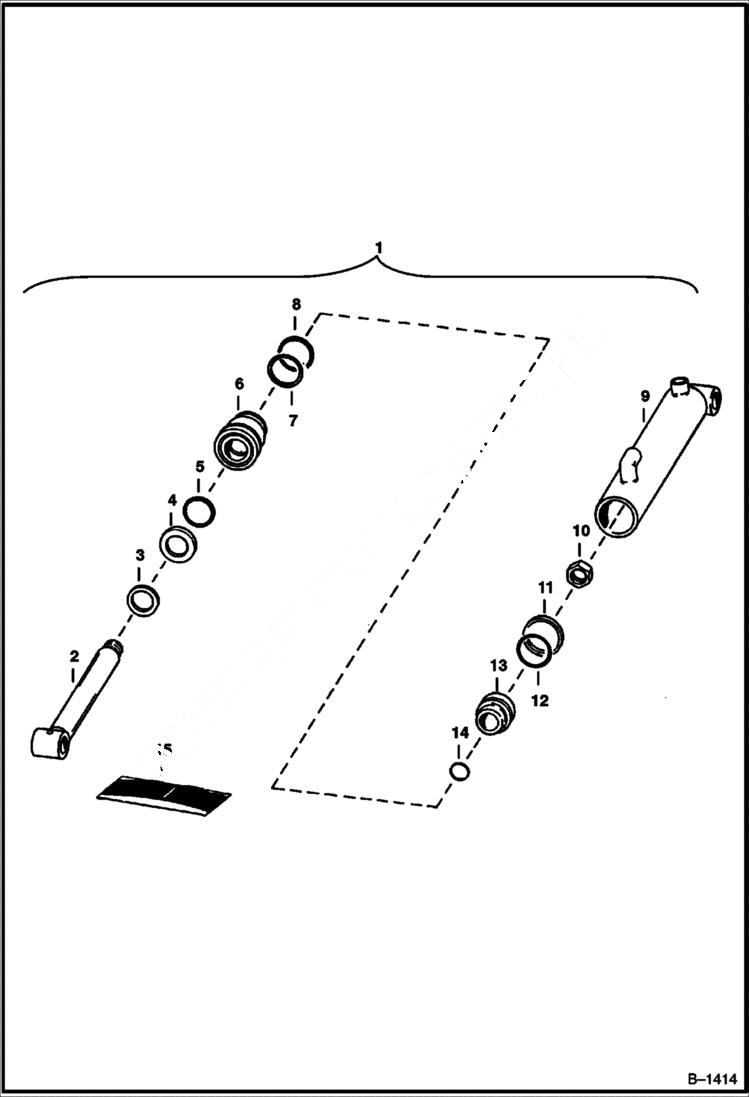

Запчасти Bobcat GRAPPLES HYDRAULIC CYLINDER - 300, 400 Series & Farmboy Farm Grapple Loader

1

6540122

CYLINDER

2

6540120

PISTON ROD

3

6665208

SEAL wiper - Was NSS - D

4

6665184

SEAL u-cup - Was NSS - D

5

O-RING NSS

6

6539323

HEAD cylinder - Was 6532702 - A

7

73K224

RING backup - Was NSS - D

8

25K40124

O RING 10 Was NSS - D

9

CASE NLA - cylinder - Order Ref. 1 - Was 6592027 - A

10

92D12

NUT See BTI126 Was 86D000012B - A

11

6516231

SEAL piston - Was NSS - D

12

25K30118

O RING 10 Was NSS - D

13

6558196

PISTON See BTI126 cylinder

14

O-RING NSS

15

6504959

SEAL KIT Ref. 3 - 5, 7, 8, 11, 12 & 14
