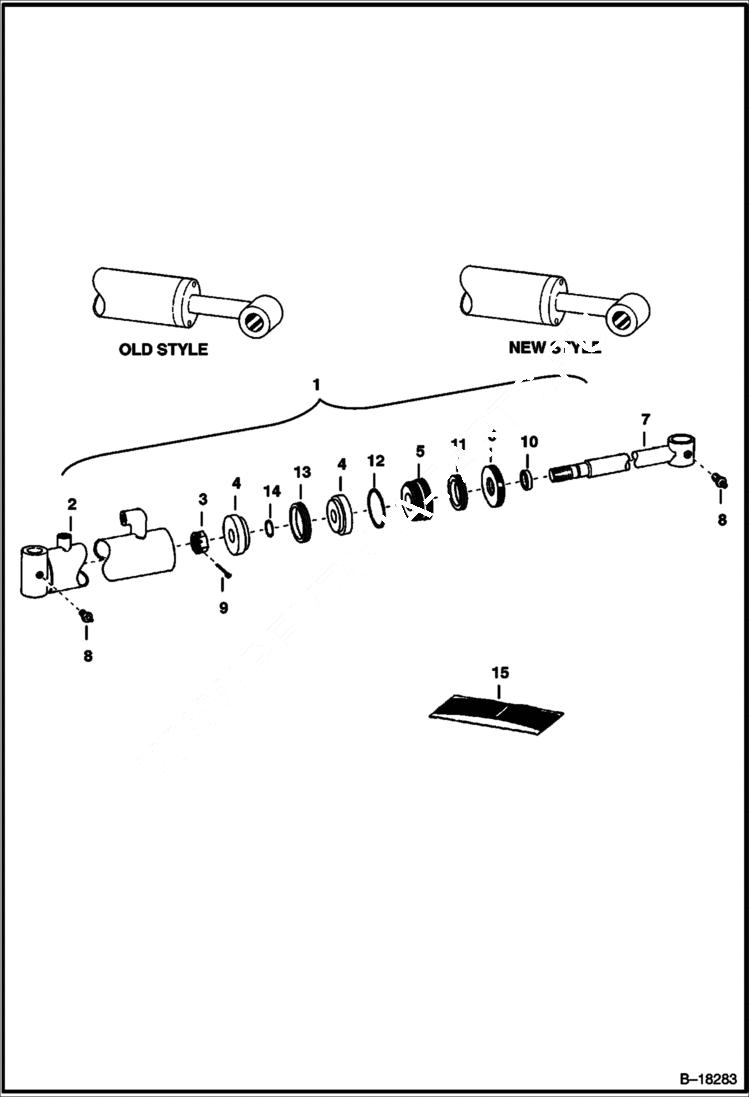

Запчасти Bobcat GRAPPLES GRAPPLE CYLINDER - 444 & 500 Direct Mount Old Style - Stabilizer Loader

1

CYLINDER NLA - Order 6531681

2

CASE NSS

3

3D12

NUT castle - 3/4'' NF

4

PISTON NLA - 2 Pieces - Was 6516207 - A

5

GLAND NLA - Was 6505845 - A

6

RETAINER NSS - Was 6505826 - A

7

ROD NLA - Order 6531681 Cylinder

8

10H25

FITTING, GREASE 5

9

1F616

PIN

10

SEAL NSS - wiper

11

SEAL NSS - rod

12

O-RING NSS

13

SEAL NSS - piston

14

O-RING NSS

15

6505850

SEAL KIT Ref. 10 - 14
