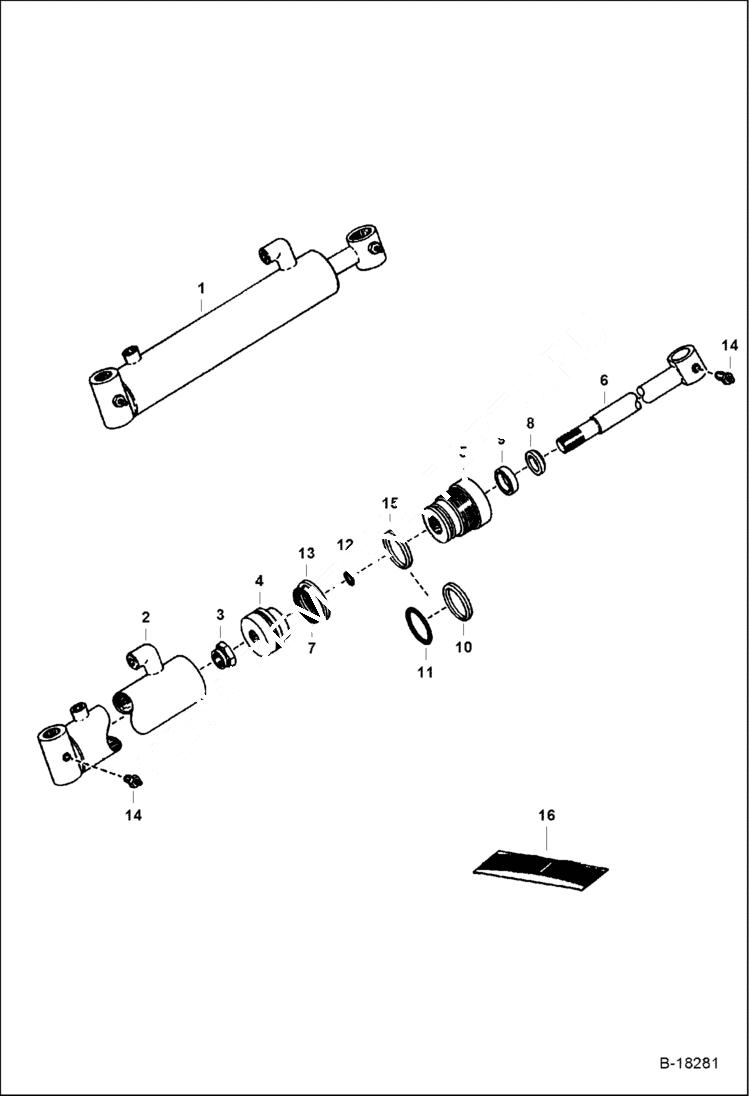

Запчасти Bobcat GRAPPLES GRAPPLE CYLINDER - 444 & 500 Direct Mount W/1.25 Rod & 1 Elbow Loader

1

CYLINDER NLA - Ref. 2 - 13 - Order 6530564 - Was 6515524 - A

2

6592028

CASE

3

92D12

NUT See BTI126 Was 86D000012B - A

4

6558196

PISTON See BTI126

5

6539323

HEAD Was 6504932 - A

6

6530566

ROD Was 6516209 - A

7

54K30118

O-RING Was 25K-30118 - A

8

6665208

SEAL wiper

9

6667324

SEAL u-cup - Was 6665184 - A

10

73K224

RING back-up

11

54K40124

O-RING Was 25K040124B - A

12

O-RING NSS

13

6516231

SEAL

14

10H25

FITTING, GREASE 5

15

7008781

SEAL, QUAD

16

7137769

KIT, SEAL Ref. 3, 7-9, 12, 13, & 15 - Was 6803329 - A
