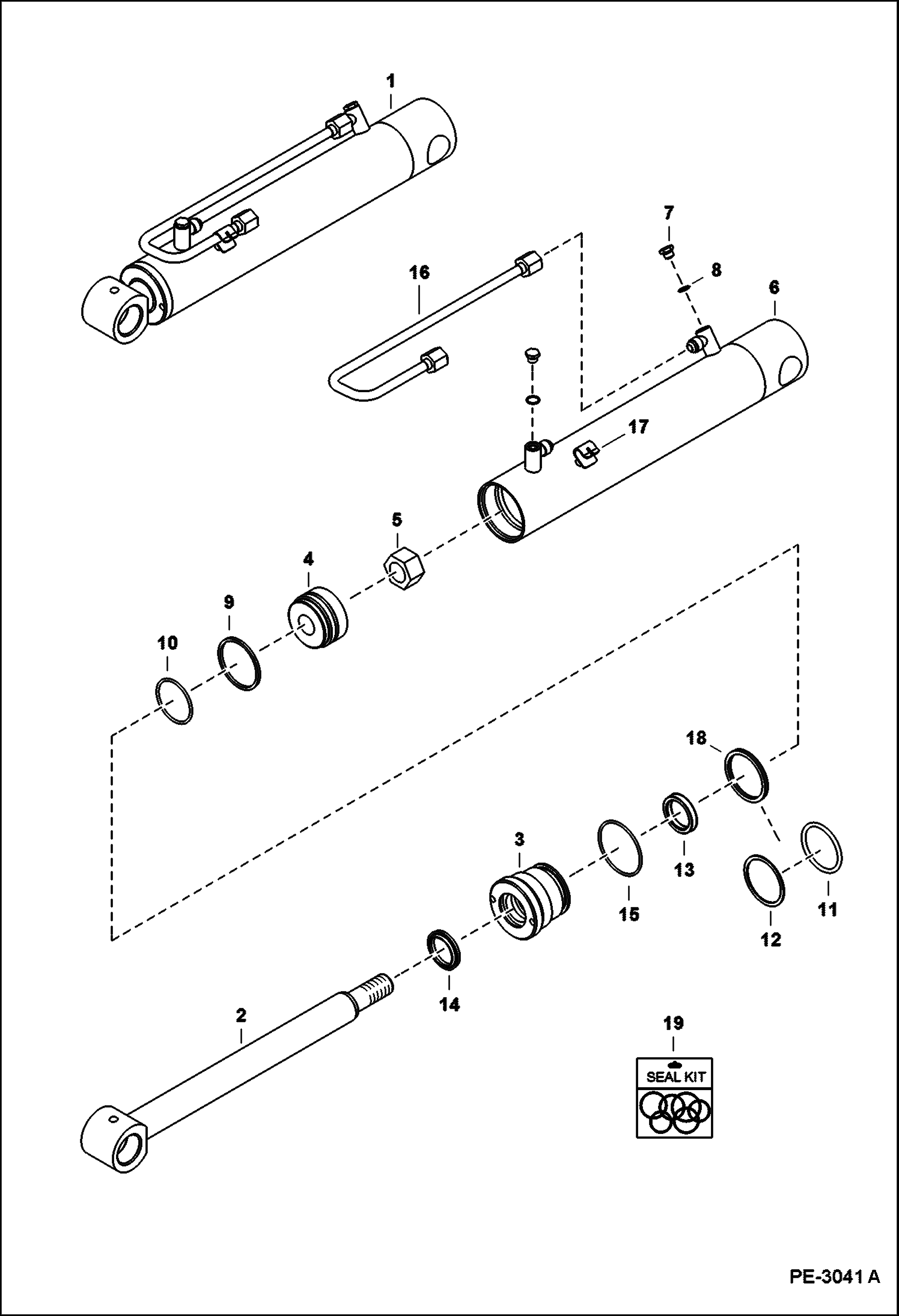

Запчасти Bobcat GRAPPLES CYLINDER HEAD (Ind Grpl Bkt 62 AFOS, 68 AFOR, 74 AFOH, 80 AFOP) (Industrial Grapple Fork 78 AEDF) (Root Grpl 72 AE6H, 82 AFON, AJ5E) Телескопические мини-погрузчики

1

CYLINDER ASSY, HYD See Illustration GRAPPLE SEVERE DUTY KIT/ NA6371 See Illustration GRAPPLE CYLINDER/ NA6367 - NLA - Ref. 2-17 - Order 7214249 kit & (2) of 7212595 cylinder - Was 7164022 - A

2

7164076

SHAFT, CYLINDER 1.25'' dia.

3

6538582

HEAD

4

6807494

PISTON

5

92D14

NUT

6

TUBE, CYLINDER See Illustration GRAPPLE SEVERE DUTY KIT/ NA6371 See Illustration GRAPPLE CYLINDER/ NA6367 - NLA - Order 7214249 kit & (2) of 7212595 cylinder - Was 7164077 - A

7

6812170

PLUG

8

75K3

O-RING

9

1522534

SEAL

10

25K30202

O RING 10

11

25K40208

O RING 10

12

73K228

BACK-UP RING back-up

13

6665184

SEAL Was 6667324 - B,D

14

6665208

SEAL

15

82K230

O-RING

16

7164346

TUBELINE

17

6690910

CLAMP

18

7008778

SEAL, QUAD

19

7137866

KIT, SEAL Ref. 5, 9, 10, 13-15, & 18
