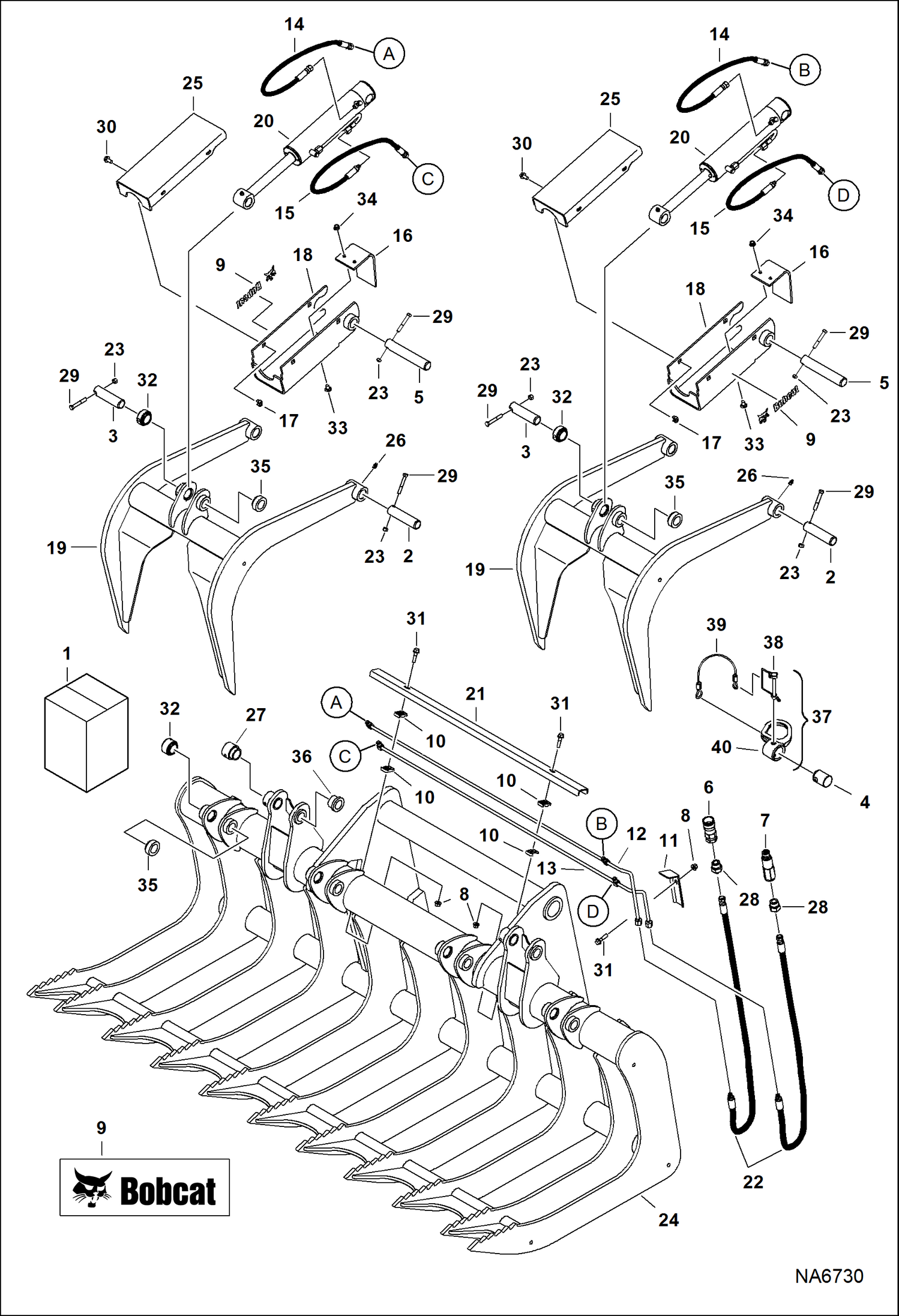

Запчасти Bobcat GRAPPLES ROOT GRAPPLE 82 (Single Piece Tubelines) (82 AJ5E00426 & Above) Телескопические мини-погрузчики

1

GRAPPLE ASSY SALES #7182619 - 82'' - Ref. 2-37

2

6547595

PIN

3

6577954

PIN, PIVOT

4

7170300

PIN, PIVOT

5

6531433

PIN

6

6672960

COUPLER, FF FEMALE straight

7

6674688

COUPLER, FF MALE straight

8

83D6

NUT 5

9

7109473

DECAL, LOGO BOBCAT AND HEAD

10

7115645

CLAMP

11

7162703

COVER, TUBELINE

12

7220943

TUBELINE, HYD

13

7220944

TUBELINE, HYD

14

7211134

HOSE, HYD ASSY

15

7211133

HOSE, HYD ASSY

16

7162805

COVER, HOSE

17

6685663

NUT, RETAINING

18

7212772

COVER, BOTTOM

19

7163282

TOOTH ASSY, GRAPPLE

20

7212595

CYLINDER , GRAPPLE See Illustration GRAPPLE CYLINDER/ NA6367

21

7182457

COVER, TUBELINE

22

7182458

HOSE, HYD

23

85D6

NUT, 5

24

BUCKET NSS - Order Ref. 1

25

7212774

COVER, TOP W/A

26

10H25

FITTING, GREASE 5

27

7163271

BUSHING weld-on

28

15KB0612

FITTING, HYD CONNECTOR

29

17C640

BOLT 5

30

31C612

BOLT

31

31C624

BOLT

32

6555987

BUSHING weld-on

33

37C616

BOLT

34

57D6

NUT 5

35

6555989

BUSHING weld-on

36

7163277

BUSHING weld-on

37

7161953

GUIDE, HOSE ASSY Ref. 38-40

38

7161559

PIN, SNAPPER

39

CABLE ASSY NSS - 3.04 mm (12'') long - Order 6558309 wire rope & (2) 6558310 sleeve

39

6558309

WIRE ROPE bulk - sold per foot

39

6558310

SLEEVE

40

GUIDE NSS - Order Ref. 37
