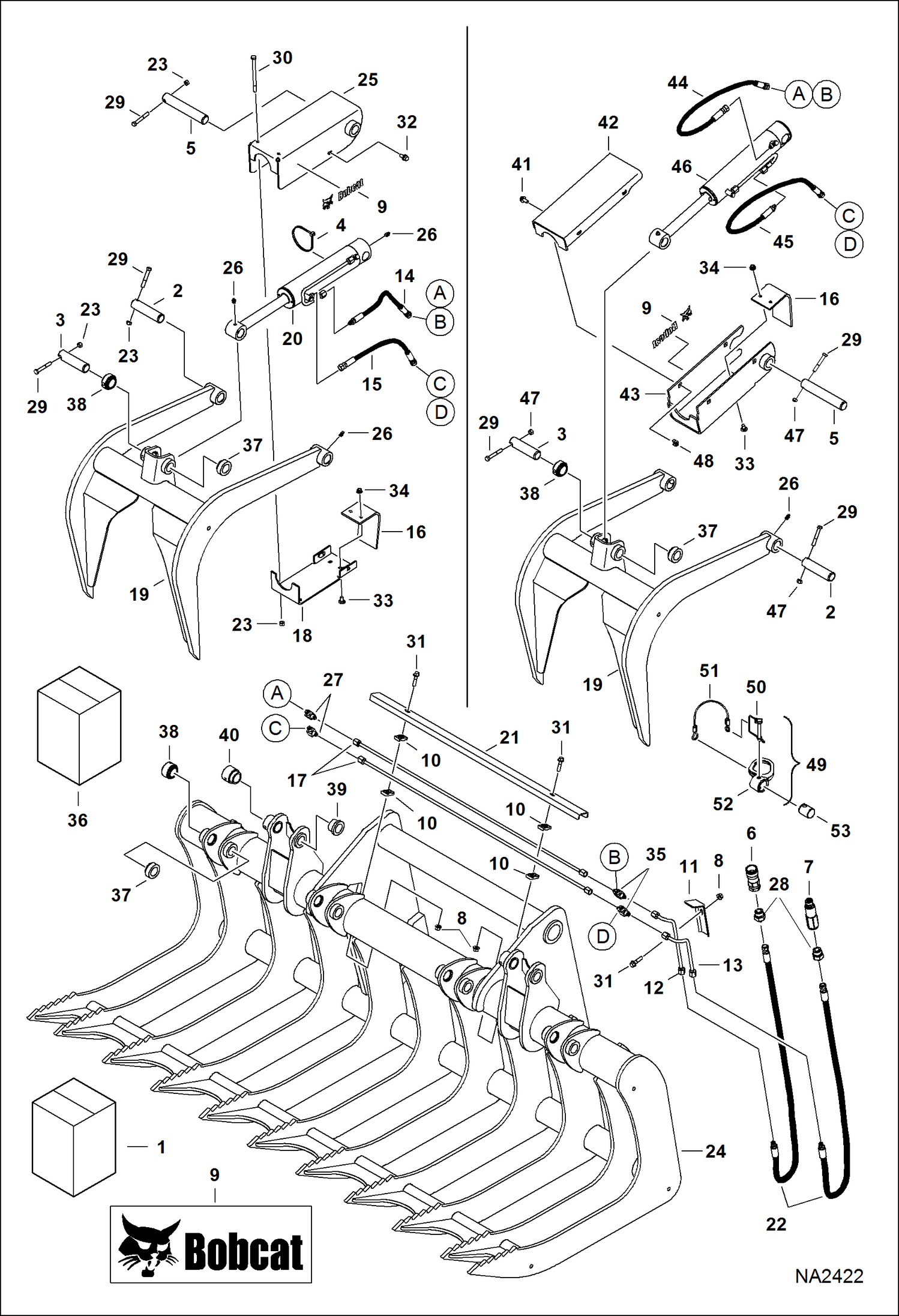

Запчасти Bobcat GRAPPLES ROOT GRAPPLE 82 (Two Piece Tubelines) (82 AJ5E00101 - 00425) Телескопические мини-погрузчики

1

GRAPPLE ASSY SALES #7182619 - 82'' - Ref. 2-48

2

6547595

PIN

3

6577954

PIN, PIVOT

4

6624289

STRAP, TIE

5

6531433

PIN

6

6672960

COUPLER, FF FEMALE straight

7

6674688

COUPLER, FF MALE straight

8

83D6

NUT 5

9

7109473

DECAL, LOGO BOBCAT AND HEAD

10

7115645

CLAMP

11

7162703

COVER, TUBELINE

12

7162704

TUBELINE

13

7162705

TUBELINE

14

HOSE See Illustration GRAPPLE SEVERE DUTY KIT/ NA6371 - NLA - Order 7214249 kit - Was 7162706 - A

15

HOSE See Illustration GRAPPLE SEVERE DUTY KIT/ NA6371 - NLA - Order 7214249 kit - Was 7162707 - A

16

7162805

COVER, HOSE

17

7162807

TUBELINE

18

COVER, BOTTOM See Illustration GRAPPLE SEVERE DUTY KIT/ NA6371 NLA - Order 7214249 kit - Was 7163270 - A

19

7163282

TOOTH ASSY, GRAPPLE

20

CYLINDER ASSY, HYD See Illustration CYLINDER HEAD/ PE3041A

21

7182457

COVER, TUBELINE

22

7182458

HOSE, HYD

23

81D6

NUT

24

BUCKET NSS - Order Ref. 1

25

COVER, TOP W/A See Illustration GRAPPLE SEVERE DUTY KIT/ NA6371 NLA - Order 7214249 kit - Was 7182727 - A

26

10H25

FITTING, GREASE 5

27

10K5

TEE

28

15KB0612

FITTING, HYD CONNECTOR

29

17C640

BOLT 5 Was 1C640 - A

30

17C688

BOLT

31

31C624

BOLT

32

35C612

BOLT

33

37C616

BOLT Was 37C612 - B,D

34

57D6

NUT 5

35

77F5

FITTING

36

KIT, TRANSLATION NSS - Spanish (Argentina) - Was 7182716AR - A

36

KIT, TRANSLATION NSS - Portugese (Brazil) - Was 7182716AR - A

37

6555989

BUSHING weld-on

38

6555987

BUSHING weld-on

39

7163277

BUSHING weld-on

40

7163271

BUSHING weld-on

41

31C612

BOLT

42

7212774

COVER, TOP W/A

43

7212772

COVER, BOTTOM

44

7211134

HOSE, HYD ASSY

45

7211133

HOSE, HYD ASSY

46

7212595

CYLINDER , GRAPPLE See Illustration GRAPPLE CYLINDER/ NA6367

47

85D6

NUT, 5

48

6685663

NUT, RETAINING

49

7161953

GUIDE, HOSE ASSY Ref. 50-52

50

7161559

PIN, SNAPPER

51

CABLE ASSY NSS - 3.04 mm (12'') long - Order 6558309 wire rope & (2) 6558310 sleeve

51

6558309

WIRE ROPE bulk - sold per foot

51

6558310

SLEEVE

52

GUIDE NSS - Order Ref. 49

53

7170300

PIN, PIVOT
