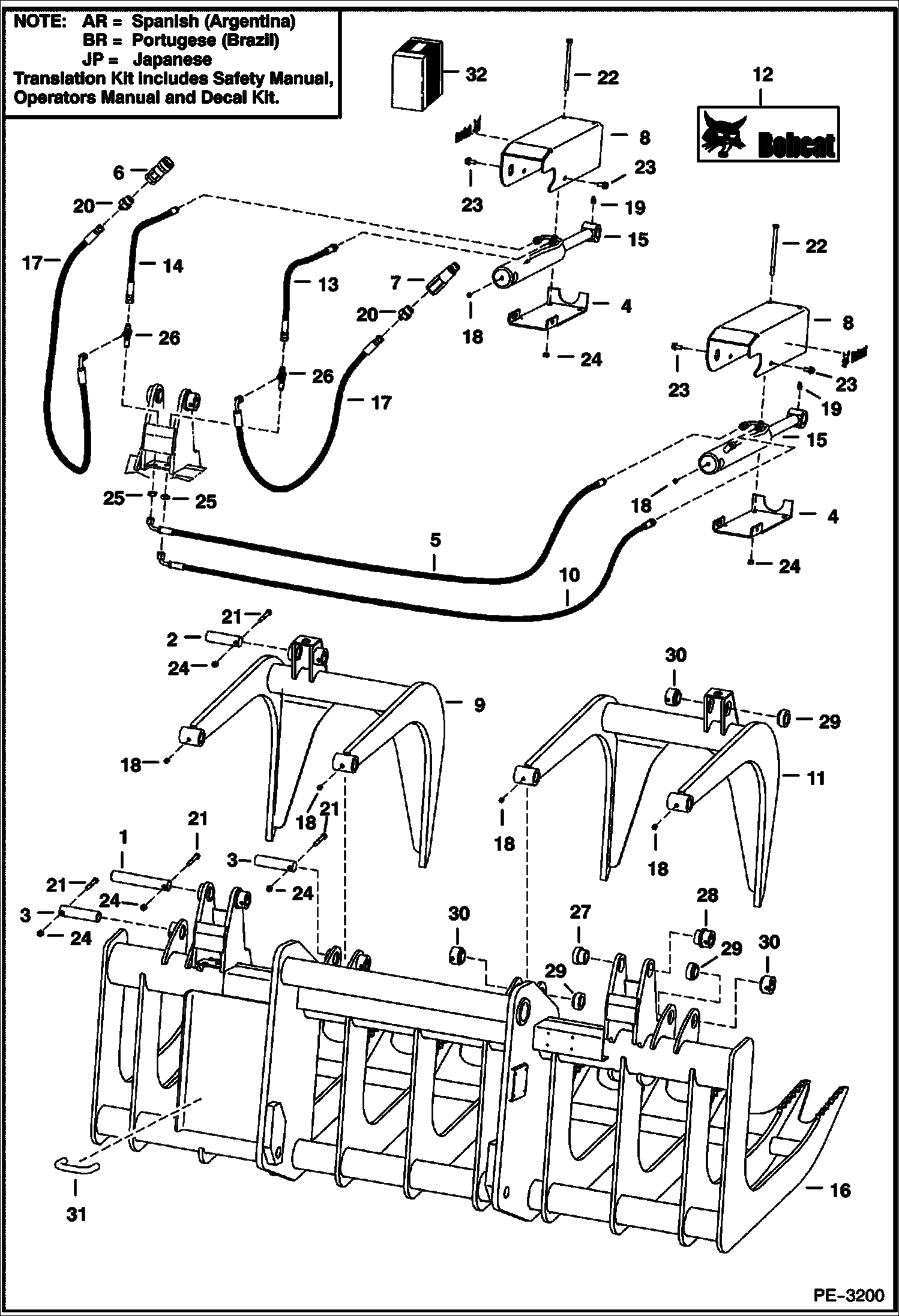

Запчасти Bobcat GRAPPLES ROOT GRAPPLE 82 (82 A2MW) Телескопические мини-погрузчики

1

6531433

PIN

2

6547593

PIN, PIVOT

3

6547595

PIN

4

6588042

COVER

5

6597889

HOSE

6

6672960

COUPLER, FF FEMALE straight

7

6674688

COUPLER, FF MALE straight

8

6808023

COVER, TOP W/A

9

7103975

TOOTH LH

10

7104903

HOSE

11

7106863

TOOTH RH

12

7109473

DECAL, LOGO BOBCAT AND HEAD

13

7109496

HOSE

14

7109497

HOSE

15

CYLINDER ASSY See Illustration CYLINDER HEAD/ PE3041

16

BUCKET NSS

17

7129323

HOSE

18

10H25

FITTING, GREASE 5

19

14H15

GREASE ZERK

20

15KB0612

FITTING, HYD CONNECTOR

21

17C640

BOLT 5

22

17C696

BOLT

23

35C612

BOLT

24

81D6

NUT

25

86F5

NUT

26

91K5

TEE

27

6808801

BUSHING

28

6588044

BUSHING

29

6555989

BUSHING

30

6555987

BUSHING

31

6706160

GUIDE

32

7128603AR

KIT, TRANSLATION translation - SEE NOTE

32

7128603BR

KIT, TRANSLATION translation - SEE NOTE
