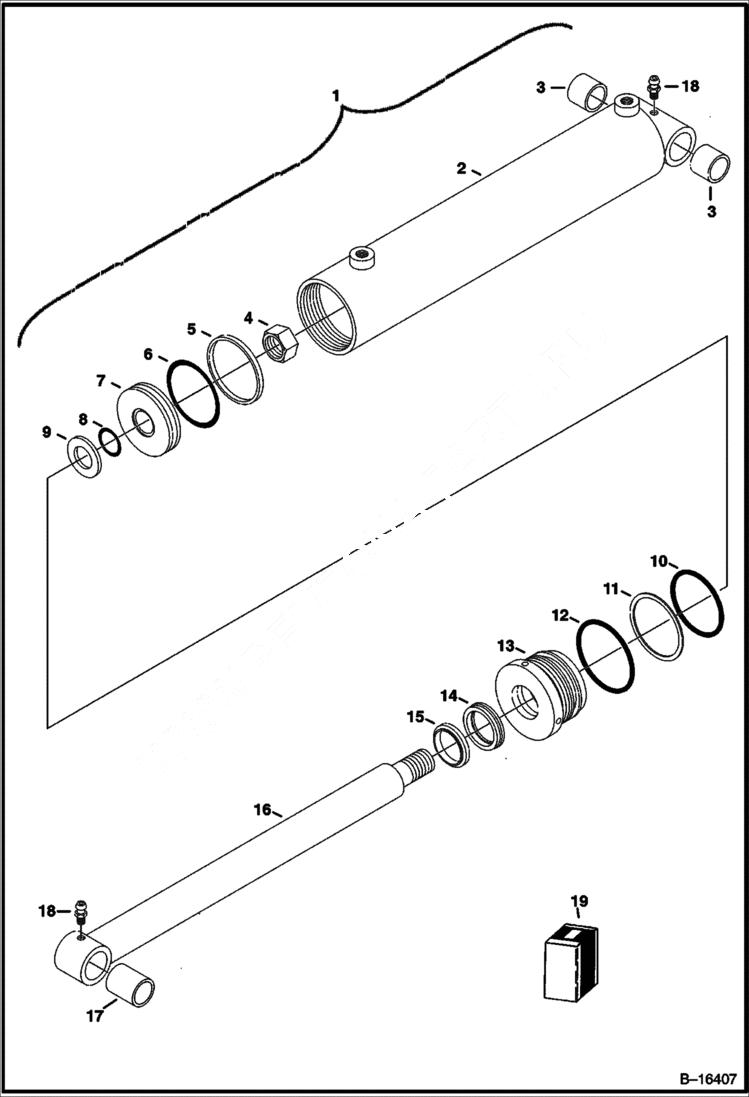

Запчасти Bobcat GRAPPLES CYLINDER (Farm & Scrap Grapple) Телескопические мини-погрузчики

1

6678184

CYLINDER Ref. 2-18 - 10'' stroke

1

6685442

CYLINDER 8'' stroke

2

6678295

CASE

3

6678539

BUSHING

4

6678311

NUT

5

SEAL NSS

6

O-RING NSS

7

6678310

PISTON

8

O-RING NSS

9

6679199

WASHER

10

SEAL NSS

11

WASHER NSS - back-up

12

SEAL NSS

13

6678299

HEAD

14

SEAL NSS - rod

15

SEAL NSS - wiper

16

6678296

ROD 10'' stroke

16

6679200

ROD 8'' stroke

17

6678540

BUSHING

18

10H25

FITTING, GREASE 5

19

6678541

SEAL KIT Ref. 5, 6, 8, 10-12, 14, 15
