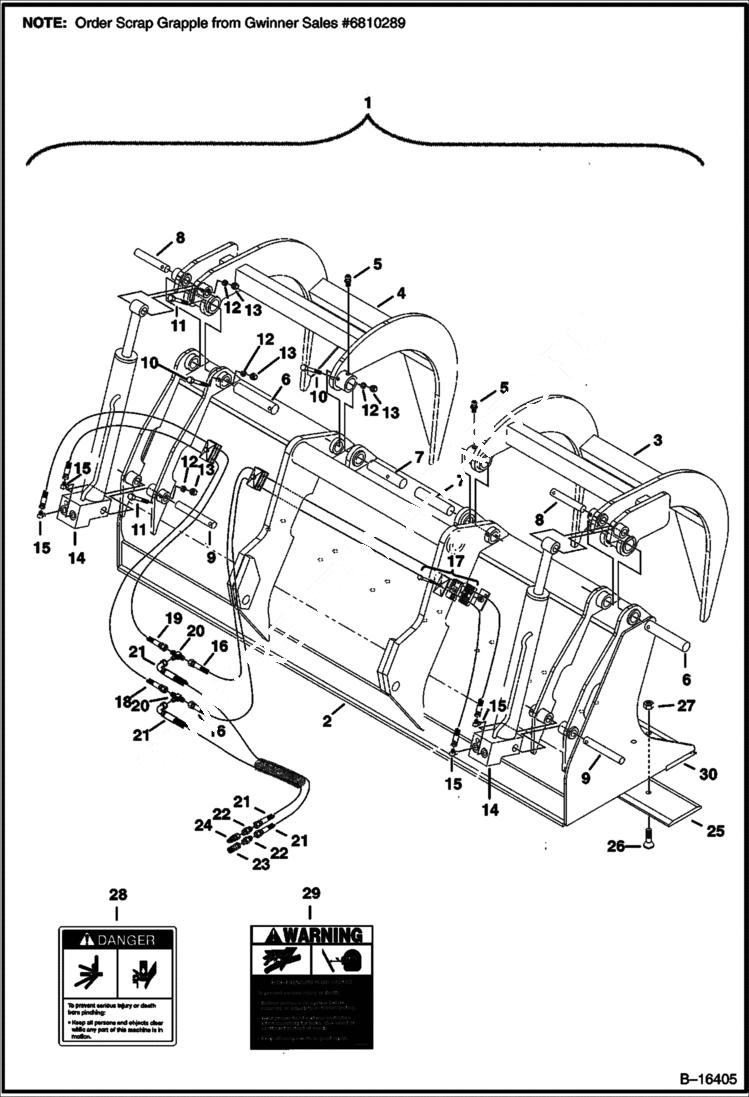

Запчасти Bobcat GRAPPLES 90 SCRAP GRAPPLE (028900104 & Above) Телескопические мини-погрузчики

1

BUCKET SALES - scrap - 90'' (2286 mm) - SEE NOTE

2

6679188

BUCKET weldment

3

6679189

GRAPPLE right side

4

6679190

GRAPPLE left side

5

10H25

FITTING, GREASE 5

6

6678179

PIN

7

6678183

PIN

8

6678178

PIN

9

6678177

PIN

10

17C648

BOLT 5

11

17C640

BOLT 5

12

4E6

WASHER

13

85D6

NUT, 5

14

6678186

CYLINDER See Illustration CYLINDER/ B16406

15

6679191

FITTING

16

6679192

HOSE

17

6678193

CLAMP ASSY

18

6679193

HOSE

19

6679194

HOSE

20

10K5

TEE Was 10KN00005B - A

20

97K6

O RING

21

6679195

HOSE

22

6578812

ADAPTER

22

79K12

O RING 10

23

6672960

COUPLER, FF FEMALE straight

24

6674688

COUPLER, FF MALE straight

25

6678192

EDGE, CUTTING, BOLT-ON 90'' 8 hole

26

6729510

BOLT

27

57D10

NUT

28

6679183

DECAL pinch point

29

6679184

DECAL high pressure fluid

30

6679705

EDGE, CUTTING WELD-ON 90''
