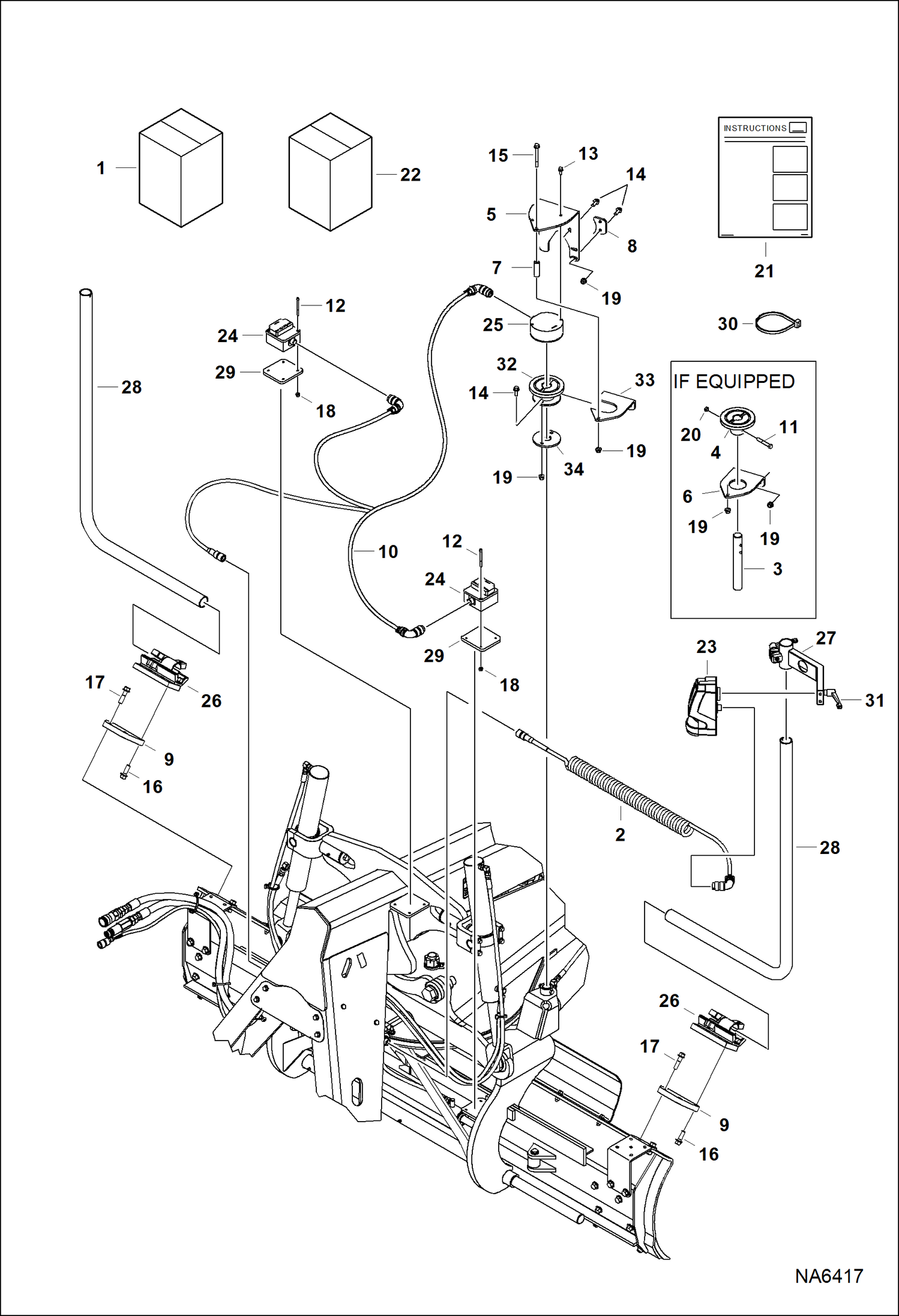

Запчасти Bobcat GRADER GRADER HD (Sonic Sensor Kit) (Deluxe) (96 ACW9) (108 AJ2E) Loader

1

KIT, SENSOR SONIC SALES #7211624 - Ref. 2-21 & 30 - Also Order Ref. 22 & 29

1

KIT, SENSOR SONIC SALES #7211624 - Ref. 2-21 & 30 - Also Order Ref. 22

2

7144375

CABLE, RECEIVER BLR2

3

7211626

PIN, MOUNTING

4

7211627

PLATE, ALIGN

5

7211630

MOUNT, SENSOR top

6

7211631

MOUNT, SENSOR bottom

7

7211632

SPACER, BRACKET

8

7211633

CLAMP, CYL

9

7211634

MOUNT, CLAMP

10

7212597

HARNESS, SENSOR SONIC

11

17C640

BOLT 5

12

73G444

BOLT

13

31C512

BOLT

14

31C616

SCREW

15

31C656

BOLT

16

31C824

BOLT 10

17

31C832

BOLT

18

83D4

NUT 10

19

83D6

NUT 5

20

85D6

NUT, 5

21

6990348

INSTRUCTIONS

22

KIT, SENSOR SONIC NLA - Ref. 22-28 - Order components - Was 7023454 - A

23

7023451

SENSOR, SONIC TRACER

24

7023452

SENSOR, SONIC SLOPE

25

7023453

SENSOR, SONIC ROTATION

26

7023599

CLAMP, BASE

27

7023600

BRACKET, ARM W/Ref. 31

28

7023601

MOUNT, SENSOR sold in units of two

29

7211628

MOUNT, SENSOR welds to 7160021 main frame & 7163848 frame

30

6624289

STRAP, TIE

31

7244613

LEVER
