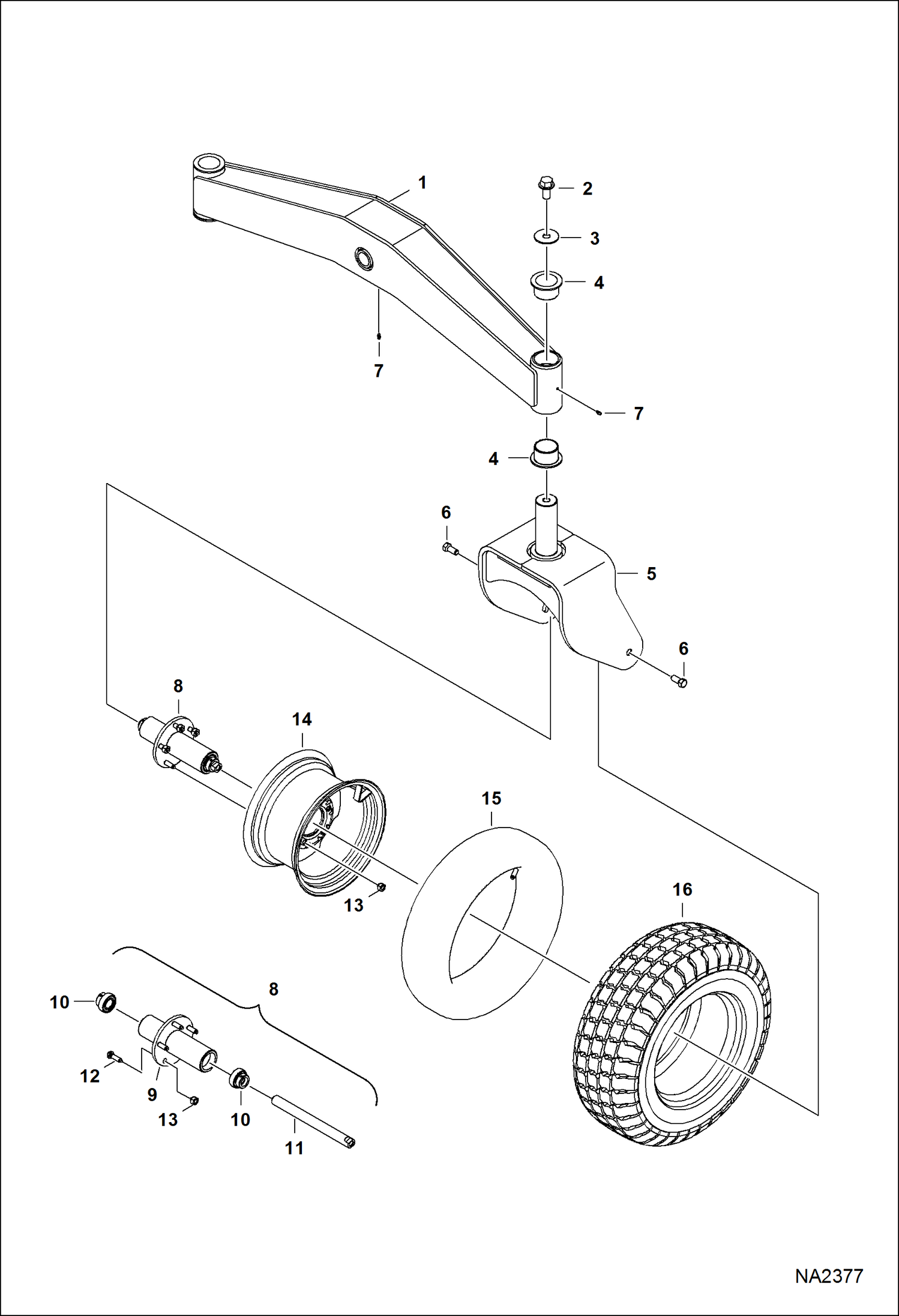

Запчасти Bobcat GRADER GRADER HD (Wheels & Bolster) (96 ACW9) (108 AJ2E) Loader

1

7163055

MOUNT, WHEEL ARM

2

31C1224

BOLT

3

6905689

WASHER

4

7163062

BUSHING

5

7160041

YOKE, TIRE MOUNT

6

6675009

BOLT

7

10H35

FITTING, GREASE 10

8

HUB, WHEEL ASSY NSS - order components Ref. 9 - 13

9

6728412

WHEEL HUB

10

6675007

BEARING

11

6675006

AXLE

12

6679105

STUD

13

6561152

NUT

14

7225124

WHEEL, RIM STD See BTI197ldr Was 6716075 - A

15

7177225

TUBE, TIRE INNER

16

7109709

TIRE, TURF 23 X 8.50 X 12, 6 PLY
