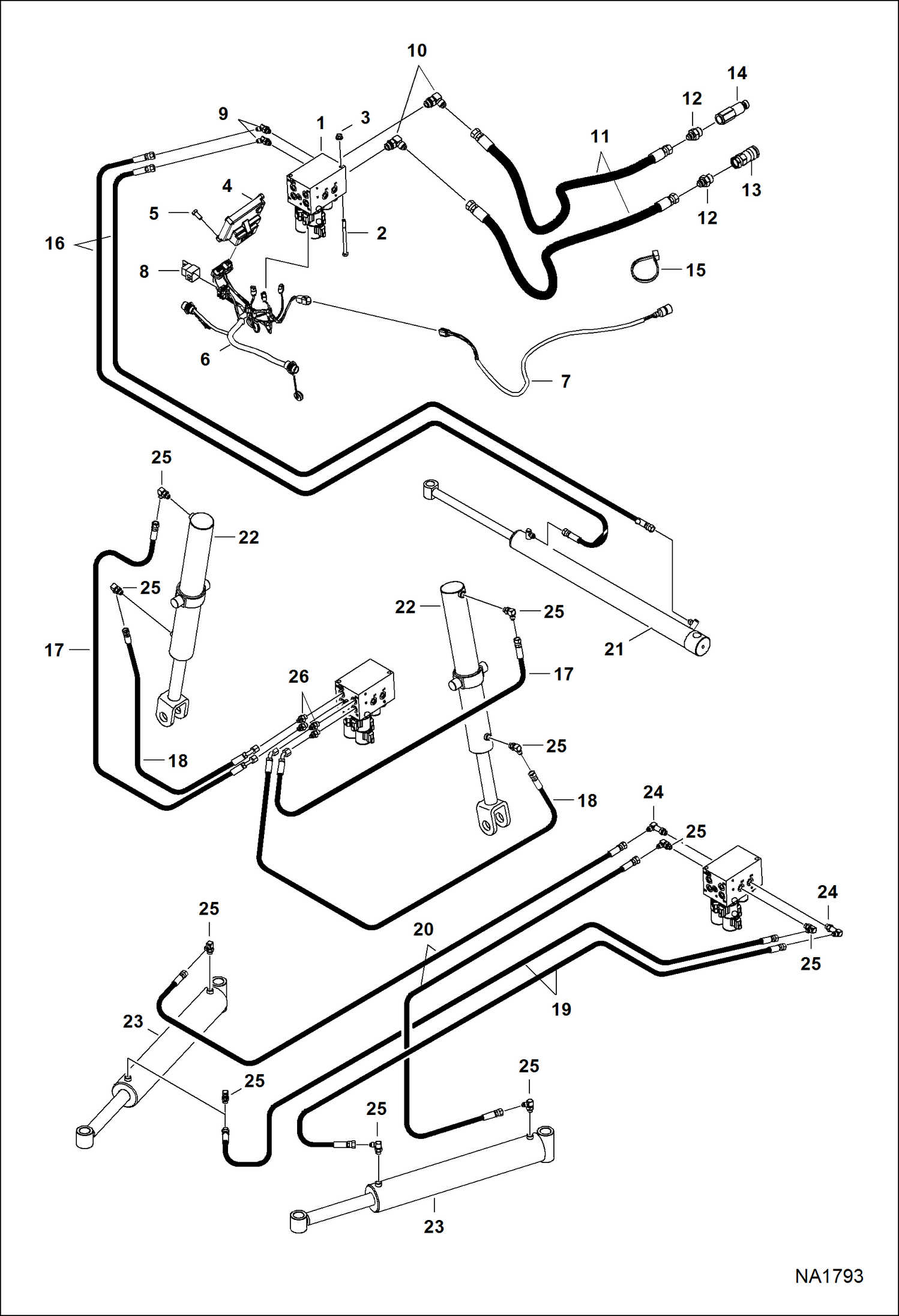

Запчасти Bobcat GRADER GRADER HD (Hydraulics) (96 ACW9) (108 AJ2E) Loader

1

VALVE, CONTROL GRADER See Illustration GRADER HD/ NA2378

2

7192284

BOLT Was 17C680 - B

3

83D6

NUT 5

4

6697951

CONTROLLER, ACD

5

1CM1025

BOLT

6

HARNESS, GRADER NLA - ACD to valve - 7 pin functionality only - Order 7196713 harness, grader - Was 7157420 - A

6

7196713

HARNESS, GRADER See Illustration GRADER/ NA2440 - ACD to valve - 7 pin functionality & 14 pin capability - Use W/ 7162167 harness, dual

7

7150497

HARNESS, INPUT 7-PIN

8

6670312

SWITCH, MAGNETIC relay

9

18KB0606

FITTING, HYD ELBOW

10

17KB1010

FITTING, HYD ELBOW

11

7166060

HOSE, HYD

12

15KB1012

FITTING, HYD CONNECTOR

13

6672960

COUPLER, FF FEMALE straight

14

6674688

COUPLER, FF MALE straight

15

6624289

STRAP, TIE

16

7166065

HOSE, HYD

17

7166061

HOSE, HYD

18

7166062

HOSE, HYD

19

7166063

HOSE, HYD

20

7166064

HOSE, HYD

21

7108418

CYLINDER See Illustration GRADER HD/ TS1147 side shift

22

7157423

CYLINDER See Illustration GRADER HD/ NA2380 elevation

23

7157422

CYLINDER See Illustration GRADER HD/ NA2379 angle

24

6812815

FITTING

25

17KB0606

FITTING

26

15KB0606

FITTING, HYD CONNECTOR
