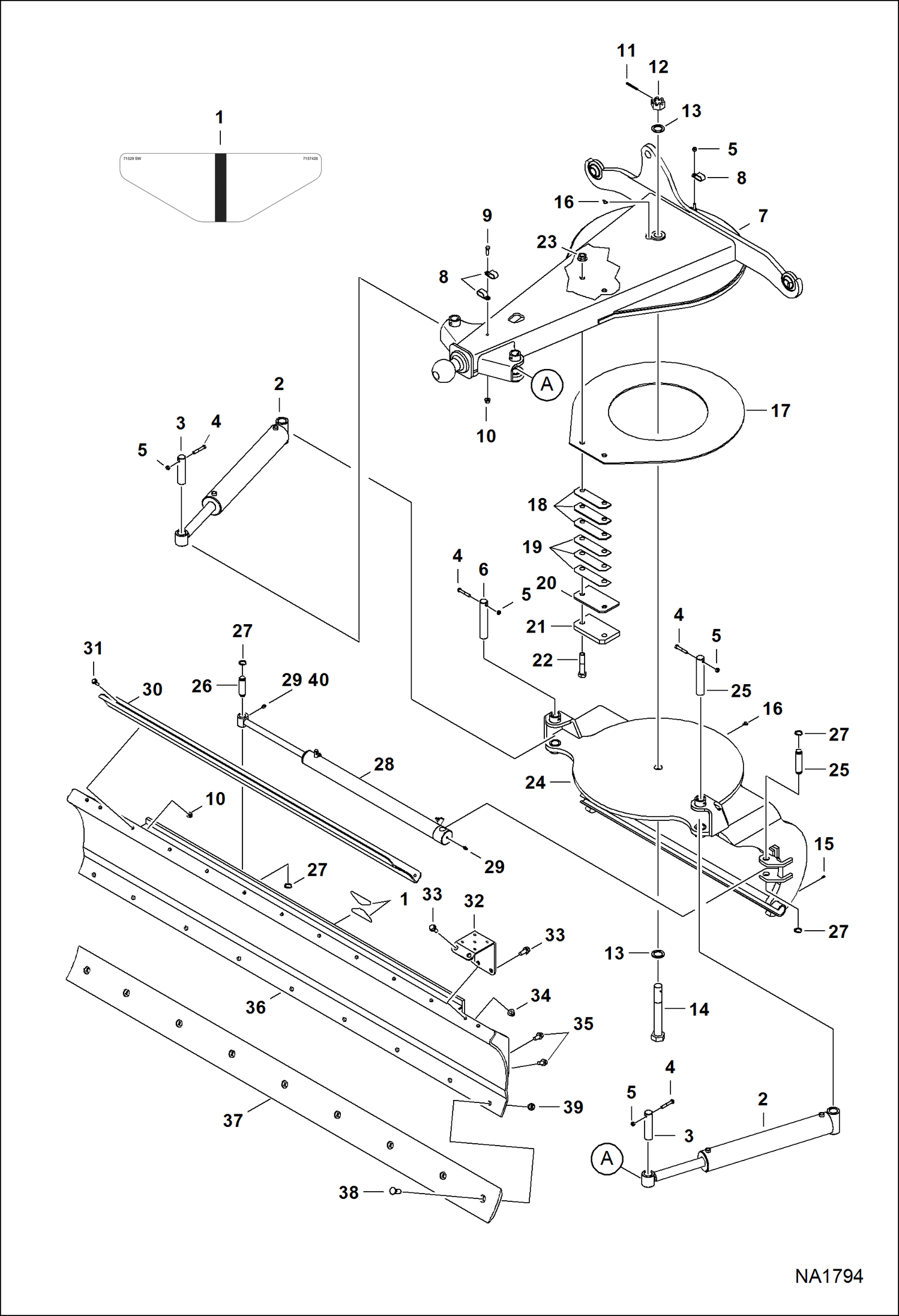

Запчасти Bobcat GRADER GRADER HD (Blade & Frames) (96 ACW9) (108 AJ2E) Loader

1

7157426

DECAL mark

2

7157422

CYLINDER angle

3

7165193

PIN

4

17C636

BOLT

5

85D6

NUT, 5

6

7165194

PIN

7

7163874

FRAME

7

6688548

BALL JOINT

8

31H38

CLAMP

9

17C620

BOLT

10

83D6

NUT 5

11

14J2540

PIN

12

4D20

NUT

13

6534111

WASHER

14

7157425

BOLT

15

10H35

FITTING, GREASE 10 straight

16

11H25

FITTING10 zerk - 90 degree

17

7163076

RING, WEAR

18

6648590

SHIM .179'' thick

19

6648591

SHIM .075'' thick

20

7166067

GUIDE

21

7165305

GUIDE

22

17C1260

BOLT

23

55D12

NUT

24

7163848

FRAME

24

7211628

MOUNT, SENSOR

25

6714997

PIN

26

6560669

PIN

27

1320431

RING, SNAP

28

7108418

CYLINDER See Illustration GRADER HD/ TS1147

29

10H25

FITTING, GREASE 5

30

7165308

GUARD, DIRT

31

31C620

BOLT

32

7165294

MOUNT reciever

33

31C820

BOLT

34

83D8

NUT 5

35

31C816

BOLT

36

7160034

MOLDBOARD, GRADER 96''

36

7163861

MOLDBOARD, GRADER 108''

37

7160036

EDGE, CUTTING BOLT-ON 96''

37

7160038

EDGE, CUTTING BOLT-ON 108''

38

39C1028

BOLT, PLOW qty. (9) for 96'', qty. (10) for 108''

39

85D10

NUT, 5 qty. (9) for 96'', qty. (10) for 108''

40

12H15

FITTING, GREASE 5 90 degree
