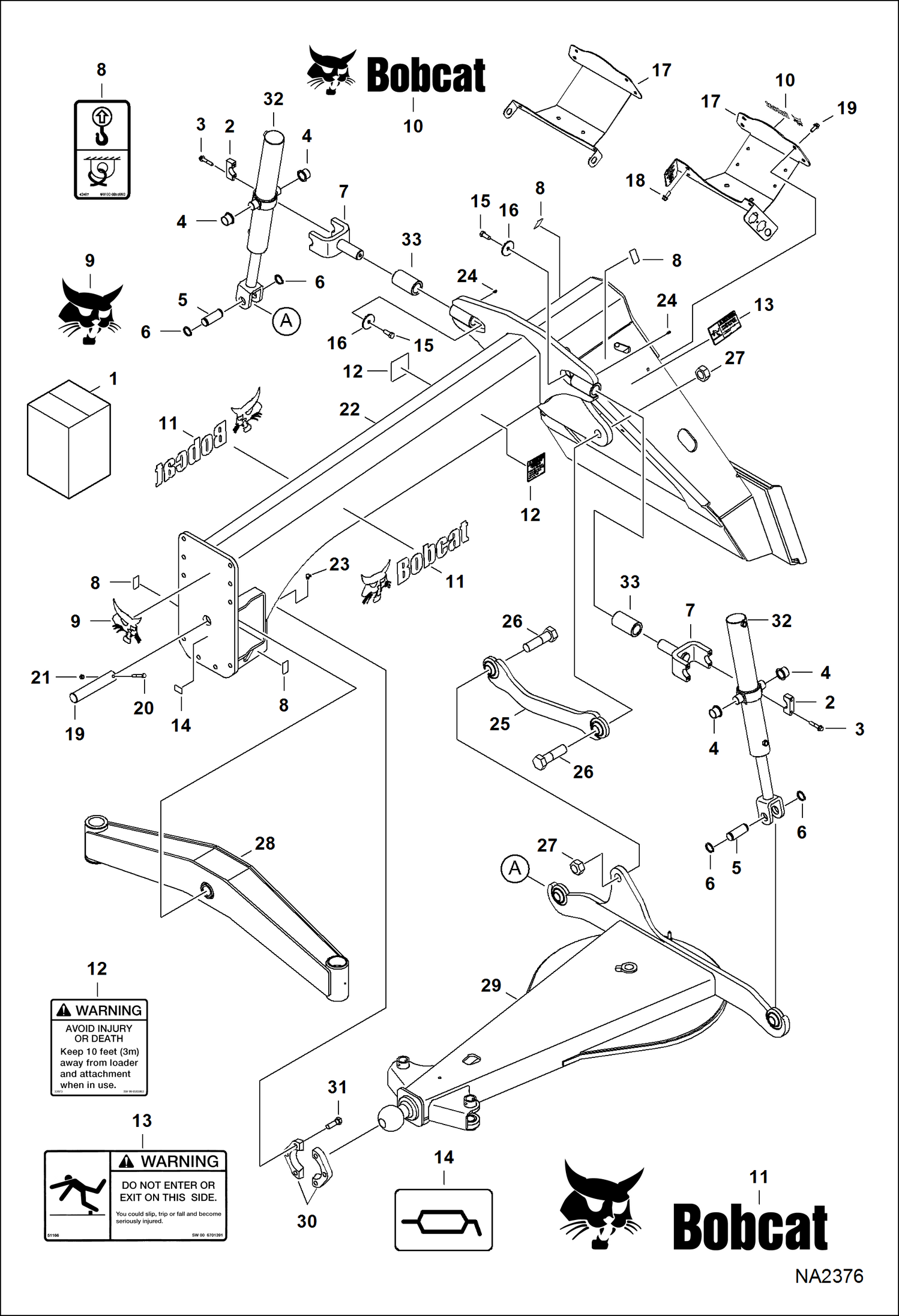

Запчасти Bobcat GRADER GRADER HD (Main Frame) (96 ACW9) (108 AJ2E) Loader

1

7157423

CYLINDER See Illustration GRADER HD/ NA2380 - elevation

2

7165028

CLEVIS

3

31C632

BOLT

4

7020372

BUSHING, WEAR Was 7157419 - D

5

7165196

PIN

6

22J20

SNAP RING

7

7165025

CLEVIS

8

6815993

DECAL, LIFT tie down

9

6732489

DECAL

10

7109473

DECAL, LOGO BOBCAT AND HEAD

11

6809831

DECAL, LOGO BOBCAT AND HEAD

12

6583862

DECAL, WARNING See Illustration GRADER HD/ NA6238

12

7130132

DECAL, WARNING See Illustration GRADER HD/ NA6238 - no-text

13

6701391

DECAL, EXIT See Illustration GRADER HD/ NA6238

13

7130141

DECAL, EXIT See Illustration GRADER HD/ NA6238 - no-text

14

6705340

DECAL, GREASE

15

17C820

BOLT

16

6564692

WASHER

17

COVER, VALVE NLA - W/ 2 mounting holes - Order 7163866 cover - Was 7163866 - B,D

17

7163866

COVER, VALVE W/ 6 mounting holes

18

31C616

SCREW

19

7188357

PIN Was 7163077 - B

20

17C640

BOLT 5

21

85D6

NUT, 5

22

7160021

FRAME, MAIN ASSY

22

7211628

MOUNT, SENSOR

23

12H25

FITTING grease zerk

24

10H35

FITTING, GREASE 10

25

7163074

ROD sway

25

6688548

BALL JOINT

26

17C2072

BOLT

27

85D20

NUT

28

7163055

MOUNT, WHEEL ARM See Illustration GRADER HD/ NA2377

29

7163874

FRAME

29

6688548

BALL JOINT

30

7157414

CLAMP

31

17C1032

BOLT
