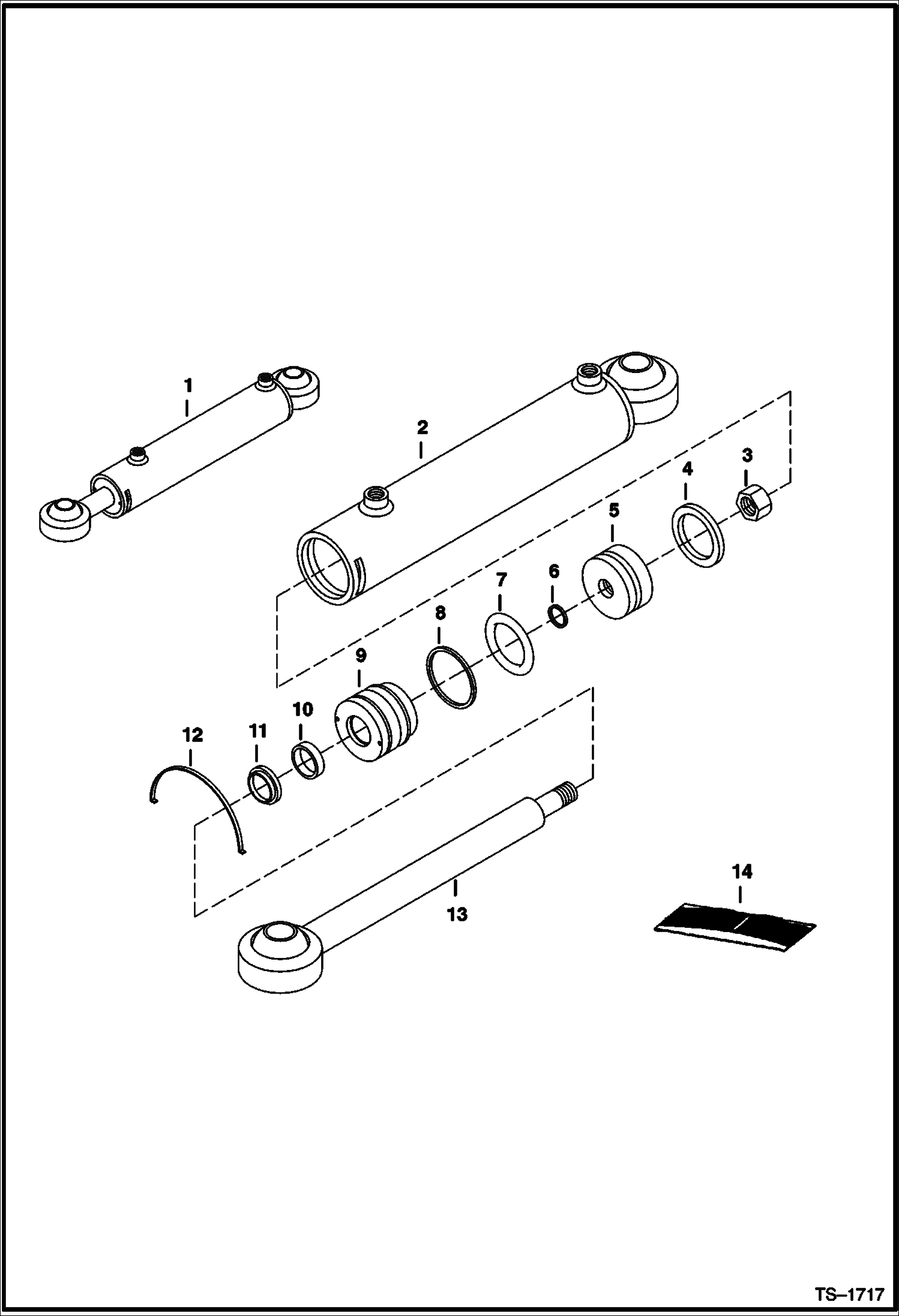

Запчасти Bobcat GRADER GRADER (Tilt & Angle Cylinder) (84 6480) Loader

1

6674426

CYLINDER Ref. 2-13

2

6674436

CASE

3

6673617

NUT Was 6673328 - A

4

PSP SEAL NSS

5

6674433

PISTON

6

O-RING NSS

7

O-RING NSS

8

BACKUP RING NSS

9

6674432

HEAD

10

POLY-PAK NSS

11

DUST SEAL NSS

12

6673598

RETAINING RING

13

6674435

ROD

14

6674437

SEAL KIT Ref. 4, 6-8, 10 & 11
