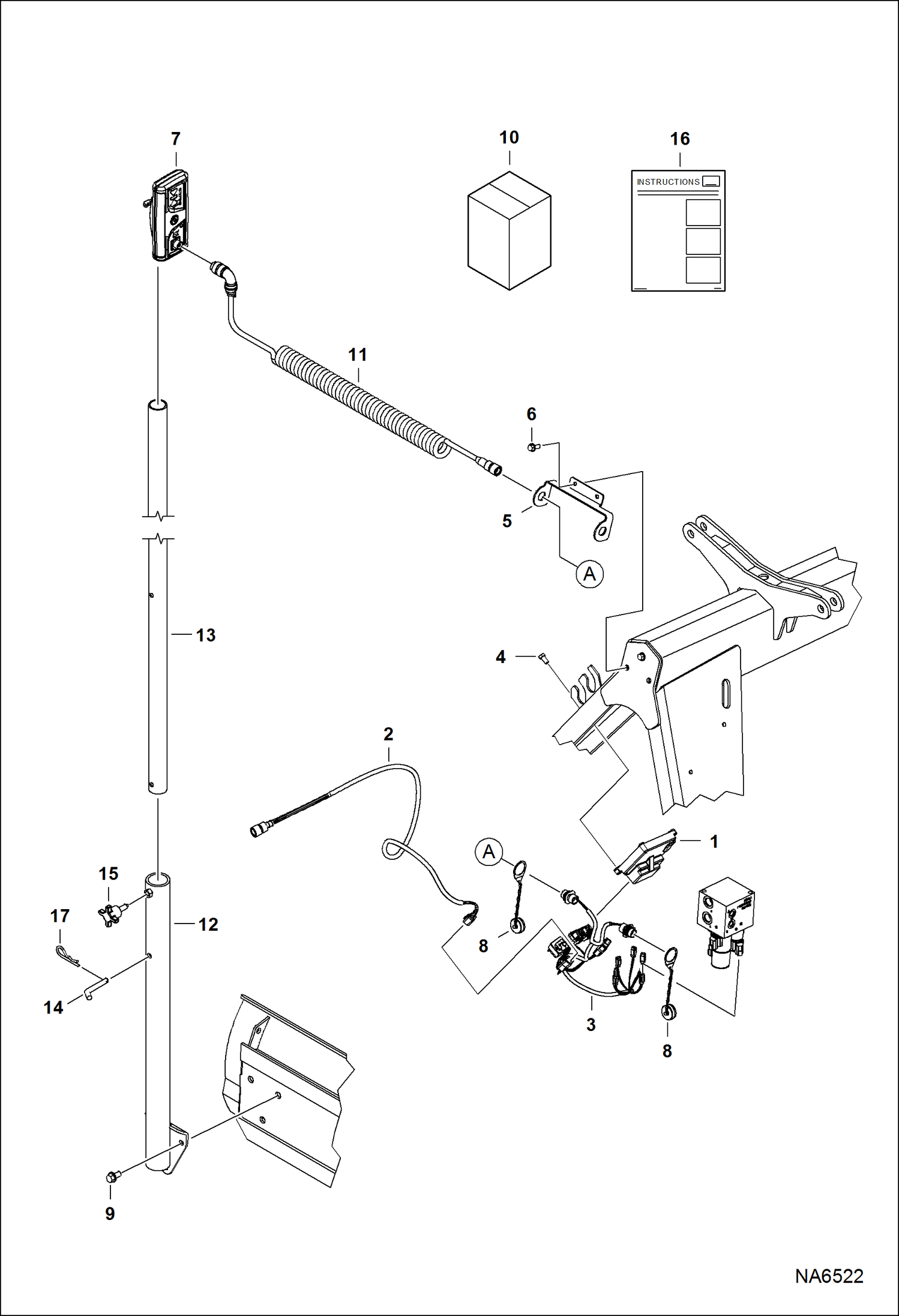

Запчасти Bobcat GRADER GRADER (Electrical & Laser Kit) (84 648001631 & Above) Loader

1

6697951

CONTROLLER, ACD

2

7150497

HARNESS, INPUT 7-PIN

3

7163241

HARNESS, GRADER 14 ACD to valve

4

1CM1020

BOLT

5

7117444

MOUNT

6

31C616

SCREW

7

RECEIVER SALES #7160486 - BLR2

8

6675026

CAP, CONNECTOR

9

31C816

BOLT

10

LASER MOUNTING KIT SALES #7164094 - Ref. 11-16

10

6688806

STAND, TRIPOD not in kit

11

7144375

CABLE, RECEIVER BLR2

12

6906399

MOUNT, LASER bolts to moldboard

13

6906559

ROD

14

6906654

PIN, W/SNAP PIN W/Ref. 17

15

6906655

KNOB

16

6904743

INSTRUCTIONS

17

6648587

PIN, SNAP
