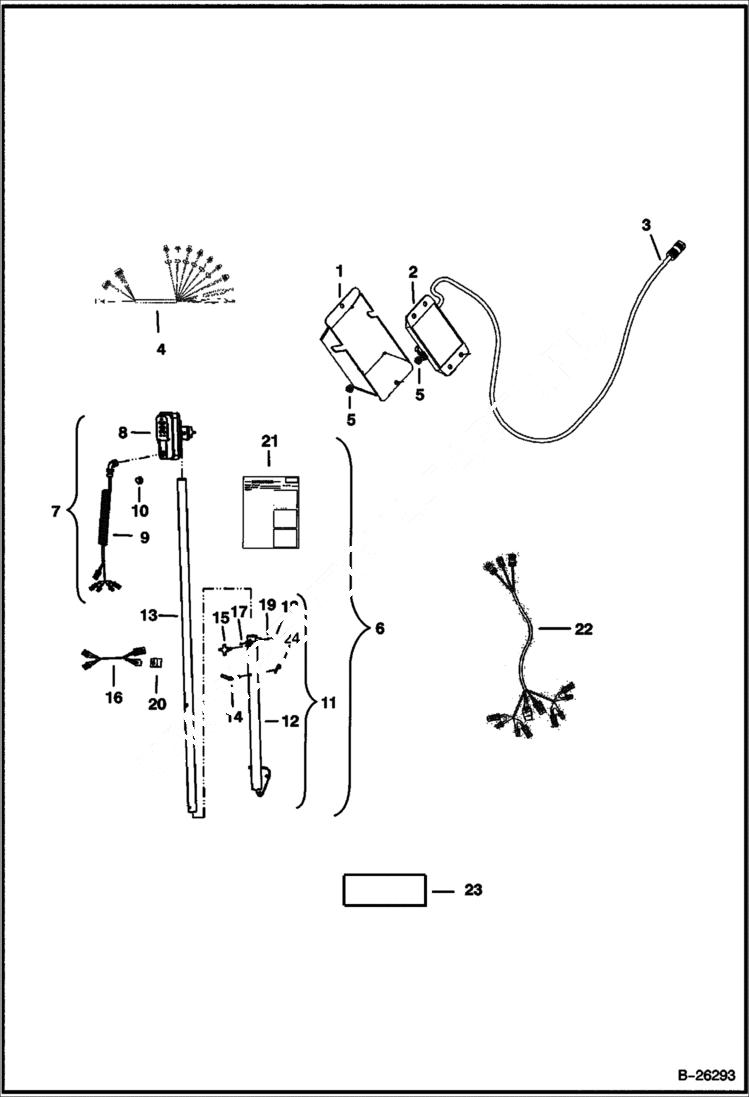

Запчасти Bobcat GRADER GRADER (Electrical & Laser Kit) (84 648000101 - 00987) Loader

1

6905670

COVER

2

6678675

CONTROLLER, ACD

3

6725385

HARNESS 7-pin

4

6727928

HARNESS ACD to valve

5

83D6

NUT 5

6

LASER KIT See Illustration GRADER/ NA6522 - NLA - Ref. 7-21 (6902705) - Order SALES #7164094 kit - Also Order 6697951 controller, 7163241 grader harness & 7150497 input harness - Was SALES #6958184 -

6

6688806

STAND, TRIPOD not in kit

7

LASER MOUNTING KIT NLA - Ref. 8-10 - Order components - Was 6678994 - A

8

RECEIVER LASER BLR2 See Illustration GRADER/ NA6522 - NLA - Order SALES #7160486 - Was 7164067 - A

9

7137148

CABLE Was 6679018 - A

10

6679017

DUST CAP

11

HARDWARE KIT NLA - Ref. 12-19 - Order components - Was SALES #6958877 - D

12

6906399

MOUNT, LASER bolts to moldboard

13

6906559

ROD

14

6906654

PIN, W/SNAP PIN W/Ref. 24

15

6906655

KNOB

16

6958183

HARNESS, LASER

17

1G1010

SCREW

18

12D10

NUT

19

17E10

WASHER

20

6670312

SWITCH, MAGNETIC relay

21

6902705

INSTRUCTIONS Use W/Ref. 6 (NLA/6958184)

21

6904743

INSTRUCTIONS Use W/Ref. 6 (SALES #7164094)

22

6906647

HARNESS for laser alignment only

23

6691592

BATTERY rechargeable

24

6648587

PIN, SNAP
