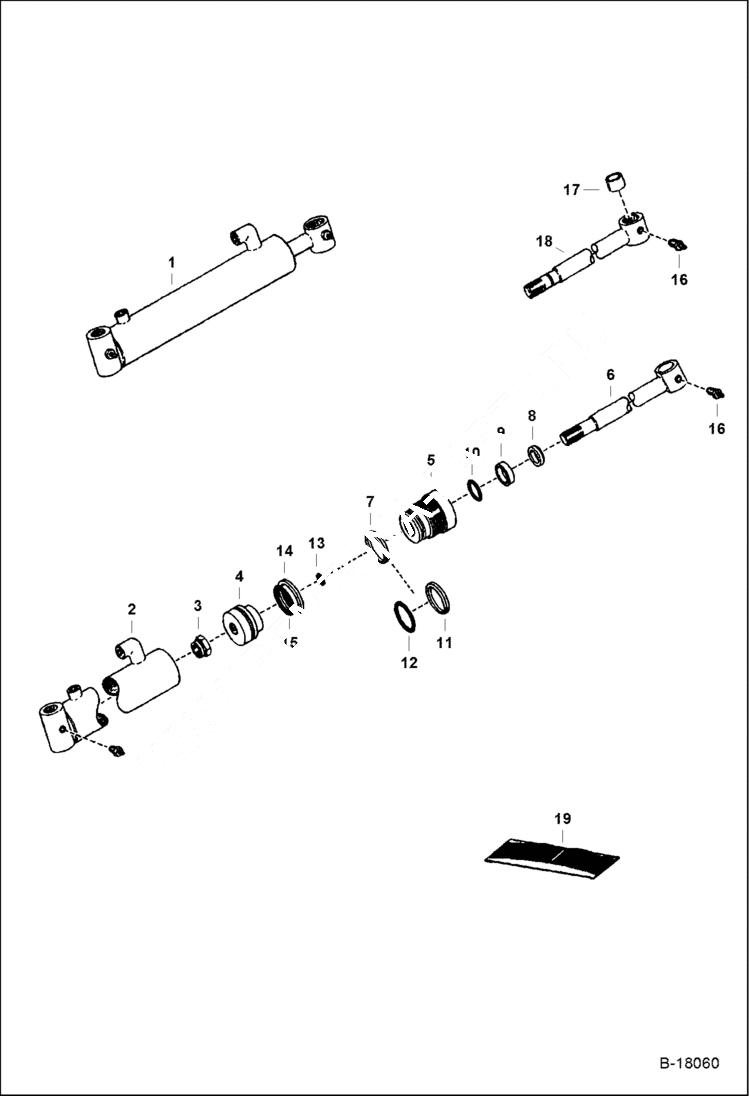

Запчасти Bobcat GRADER GRADER (Tilt Cylinder) (802700311 & Below) Loader

1

CYLINDER See Illustration GRADER/ C3112A NLA - ORDER 6531681 - WAS 6501108 - A

2

CASE See Illustration GRADER/ C3112A NLA - ORDER 6531682 - WAS 6592029 - A

3

92D12

NUT See BTI126 Was 86D000012B - A

4

6558196

PISTON See BTI126

5

6538595

HEAD, CYL HYD Was 6504933 - A

6

6587333

ROD W/Ref. 17 - Was 6529330 - A

7

7008781

SEAL, QUAD

8

6666542

SEAL, WIPER ROD

9

6667323

SEAL rod

10

O-RING NSS

11

666939

RING back-up

12

54K40124

O-RING

13

O-RING NSS

14

6516231

SEAL piston

15

54K30118

O-RING

16

10H25

FITTING, GREASE 5

17

6547652

BUSHING Use W/Ref. 18

18

ROD NLA - Order Ref. 6 - Was 6551375 - A

19

7137771

SEAL KIT Ref. 3, 7-9, 14, & 15 - Was 6803472 - A
