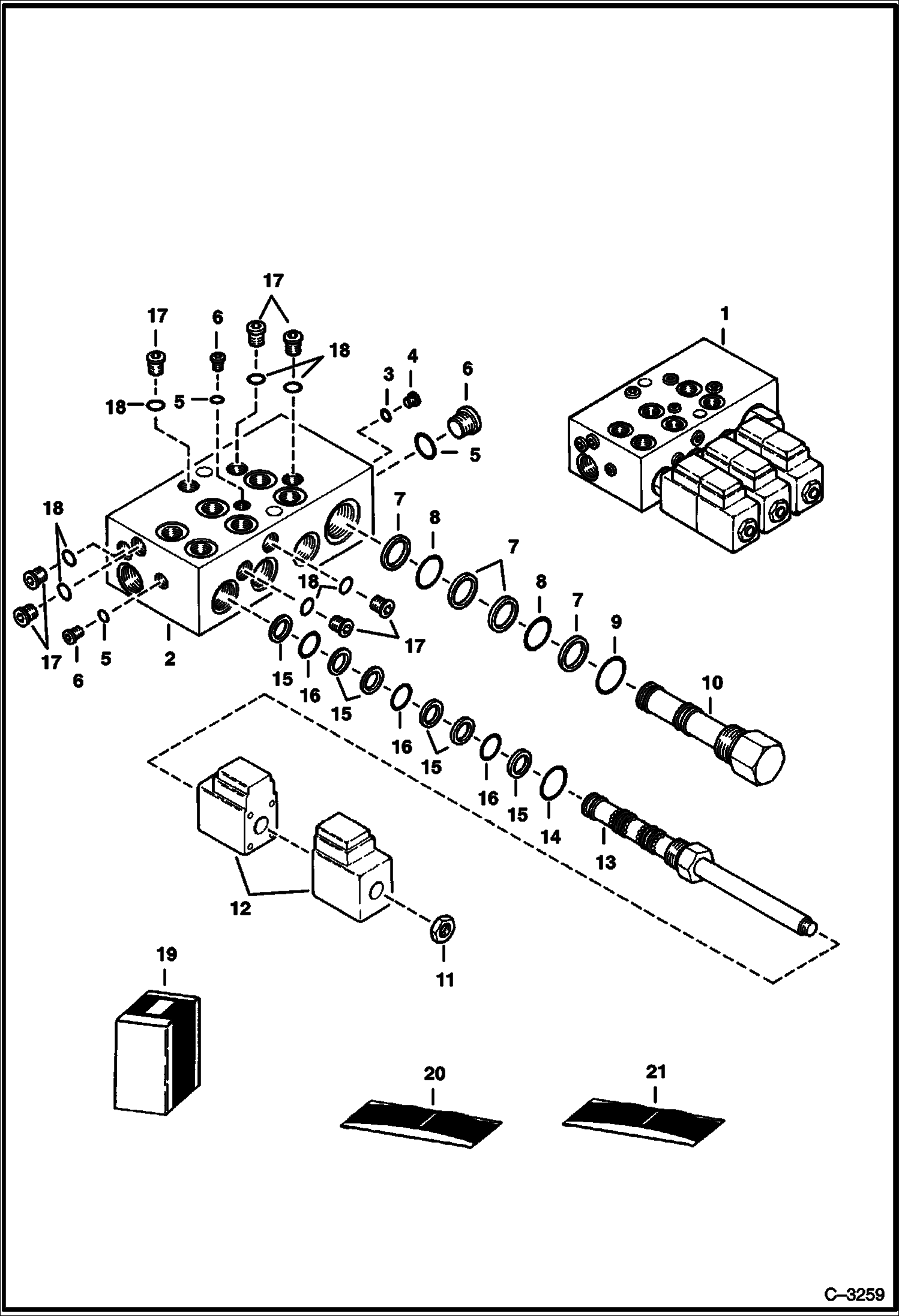

Запчасти Bobcat GRADER GRADER (Hydraulic Valve) (802700335 - 00422) Loader

1

VALVE NLA - Order 6669208 & 6661586 - Was 6657216 - A

2

VALVE BODY NSS

3

79K12

O RING 10

4

90KN1

PLUG Was 6657744 - A

5

79K3

O RING 10

6

90K6

PLUG Was 90KN00006B - A

7

RING NSS - back-up

8

O-RING NSS

9

O-RING NSS

10

6657748

REGULATOR flow

11

NUT NSS

12

SOLENOID NSS

13

SPOOL NSS

14

O-RING NSS

15

RING NSS - back-up

16

O-RING NSS

17

90K3

PLUG Was 90KN00003B - A

18

79K5

O RING 10

19

6657747

SOLENOID VALVE W/Ref. 11-15

20

6658091

SEAL KIT W/Ref. 14 - 16

21

6632343

SEAL KIT W/Ref. 7 - 9
