GRADER (Controls Electrical) (1600) (2000)

Запчасти Bobcat GRADER GRADER (Controls Electrical) (1600) (2000) Loader

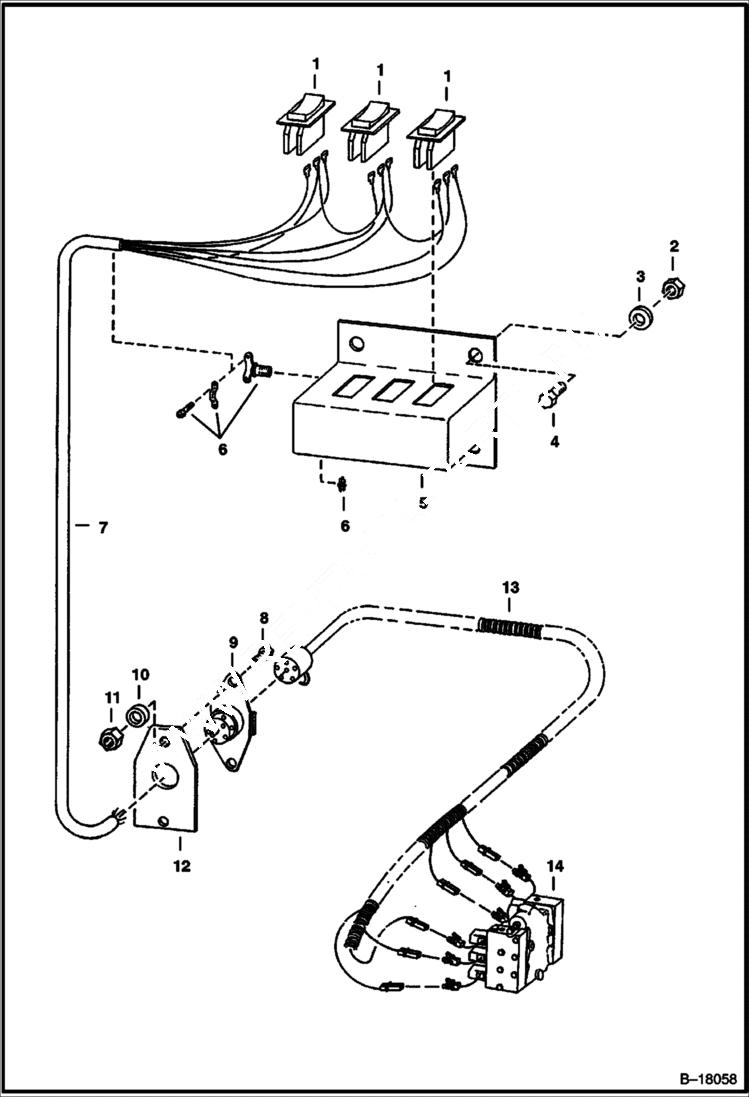

Схема запчастей Bobcat GRADER - GRADER (Controls Electrical) (1600) (2000) Loader
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

SWITCH NLA - Was 6649323 - A

2

61D4

NUT 5

3

23E4

WASHER

4

17C412

BOLT 5

5

6649324

BOX

6

6649028

CLAMP

7

HARNESS NLA - Was 6649325 - A

8

17C516

BOLT

9

6648629

SOCKET

10

23E5

L WASHER

11

61D5

NUT

12

6649330

BRACKET

13

6648627

HARNESS

13

6659299

HARNESS

13

6665869

WIRING HARNESS 14 pin - weather pack connectors

14

VALVE See Illustration GRADER/ E1705 - Was 6593360 - A
