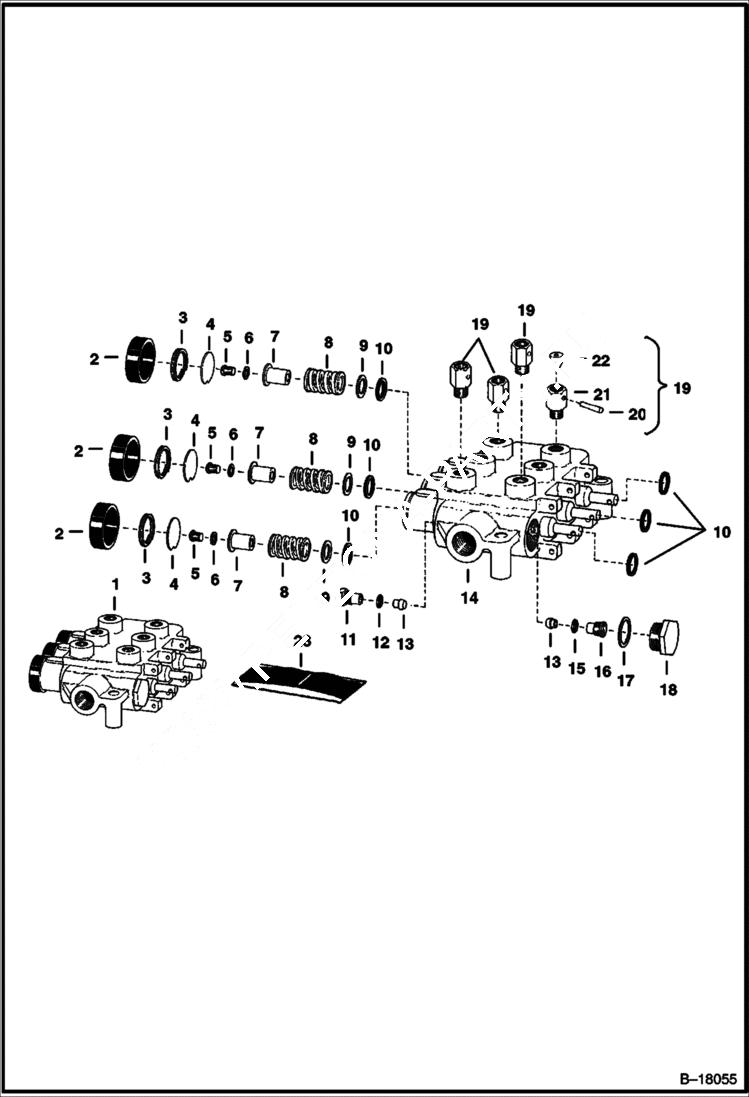

Запчасти Bobcat GRADER GRADER (Hydraulic Valve) Loader

1

6515790

VALVE Ref. 2 - 18

2

6515030

CAP rubber

3

1318338

RING

4

6515015

DISC stop

5

89G408

BOLT

6

6515228

WASHER

7

6515014

COLLAR stop

8

6515016

SPRING centering

9

6515239

WASHER stop

10

SEAL NSS - spool

11

6515233

PLUG Check Assy (W/ O-Ring, Poppet & Spring

12

O-RING NSS

13

6515078

POPPET check

14

VALVE NLA - body - W/Spools

15

O-RING NSS

16

6515232

PLUG seat

17

GASKET NSS

18

6515033

CAP

19

6516226

RESTRICTOR Ref. 20-22

20

6515075

PIN tapered

21

6515072

BODY restrictor

22

6515077

POPPET check

23

6519245

SEAL KIT Ref. 10, 12, 15 & 17
