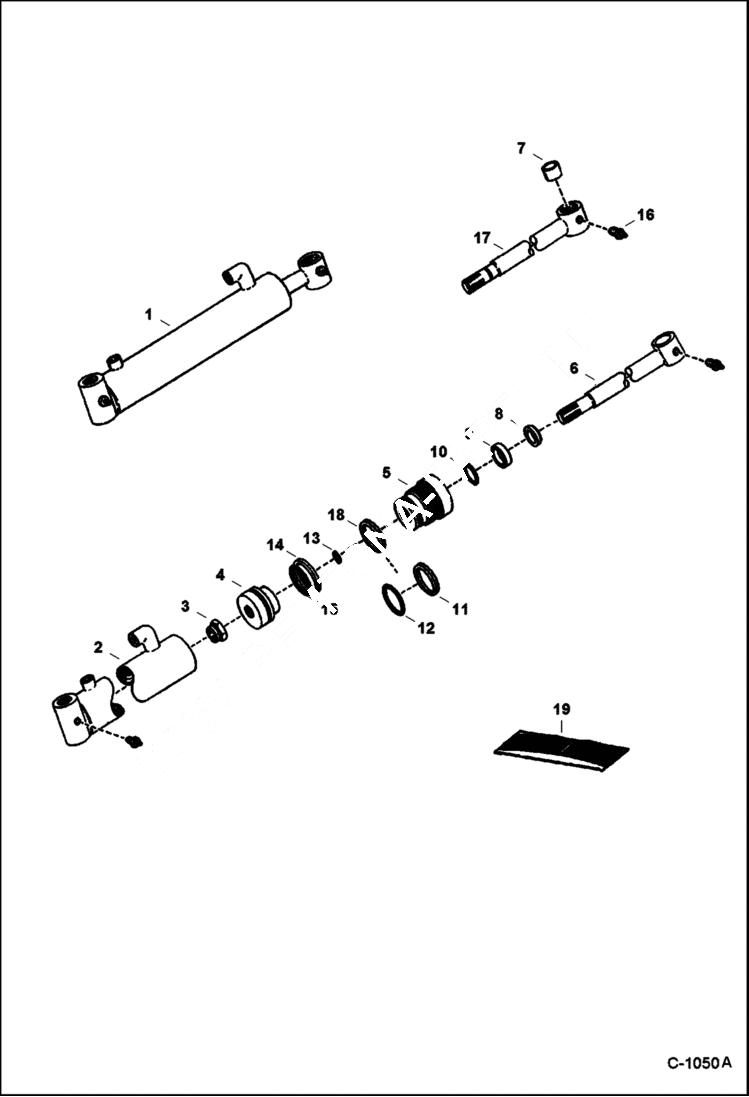

Запчасти Bobcat GRADER GRADER (Hydraulic Cylinder) (New Style Stabilizer) Loader

1

CYLINDER See Illustration GRADER/ C3112A - NLA - Ref. 2-16 - Order 6531681 cylinder - Was 6501108 - A

2

CASE NLA - Order 6531682

3

92D12

NUT See BTI126 Was 86D000012B - B

4

6558196

PISTON See BTI126

5

6538595

HEAD, CYL HYD Was 6504933 - A

6

6587333

ROD W/Ref. 7 - Was 6529330 - A

7

6547652

BUSHING Use W/Ref. 17

8

1657083

WIPER ROD wiper

9

6667323

SEAL rod - Was 6704243 - A

10

O-RING NSS

11

73K224

RING back-up - Was 666939B - D

12

54K40124

O-RING Was 25K040124B - A

13

O-RING NSS

14

6516231

SEAL piston

15

54K30118

O-RING Was 25K030118B - A

16

10H25

FITTING, GREASE 5

17

ROD NLA - Order Ref. 6 - Was 6551375 - A

18

7008781

SEAL, QUAD

19

7137771

SEAL KIT Ref. 3, 8-10, 13-15, & 18 - Was 6803472 - A
