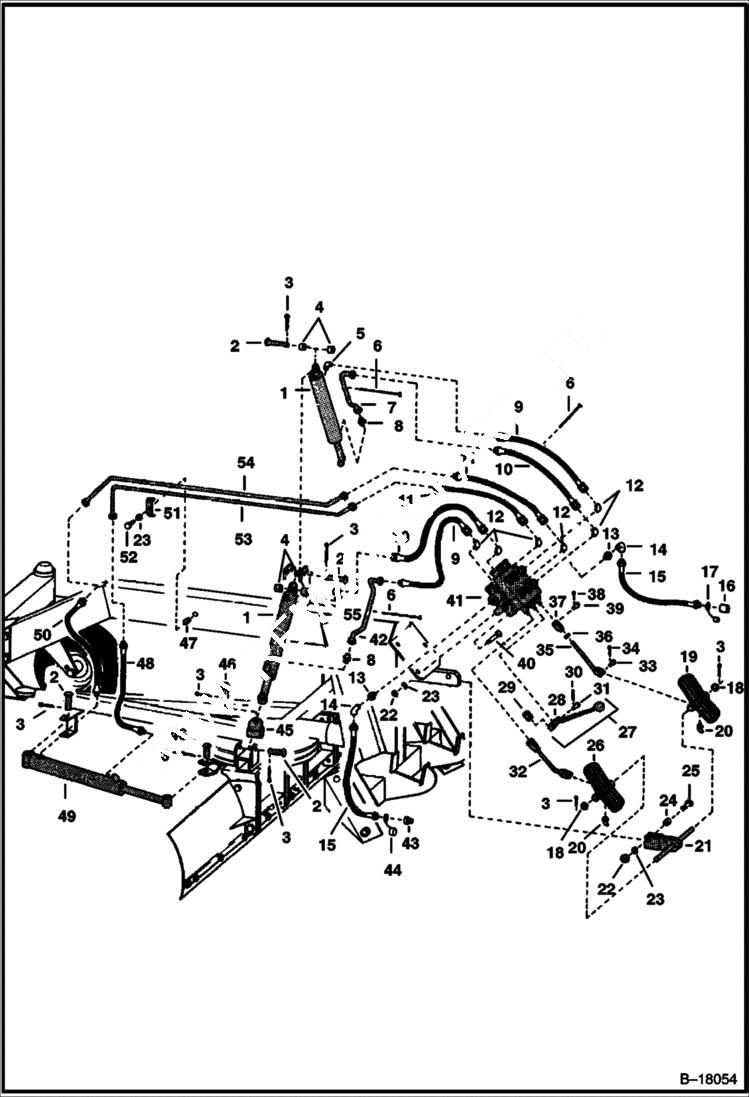

Запчасти Bobcat GRADER GRADER (Hydraulic Circuitry) Loader

1

CYLINDER See Illustration GRADER/ B18057 See Illustration GRADER/ B18056 BLADE TILT

2

6508620

HINGE PIN

3

1F620

PIN COTTE

4

6508728

SPACER

5

83F5

ELBOW

6

6503117

TIE

7

6501042

TUBE R.H.

8

89F5

CONNECTR

9

6508616

HOSE

10

6508615

HOSE

11

1315239

HOSE

12

662487

ELBOW

13

19F9

BUSHING

14

26F4

ELBOW

15

6504514

HOSE

16

6598756

QUICK COUPLER female half

16

25K40026

O RING 10

17

6515167

PLUG W/Chain

18

WASHER NLA - Was 784183B - A

19

6502913

PEDAL

20

12H15

FITTING, GREASE 5

21

6508610

BRACKET

22

61D6

NUT 5

23

4E6

WASHER

24

6508622

BUSHING

25

17C624

BOLT 5

26

6502914

PEDAL

27

6518313

HANDLE control - Ref. 28-31

28

HANDLE NSS

29

LINK NSS - connector

30

1F208

PIN

31

980730

HINGE PIN

32

ROD NSS - Ref. 35-37

33

6505103

PIN

34

1F308

PIN, COTTER

35

ROD NSS

36

62D8

NUT

37

6515635

YOKE

38

1F416

PIN

39

663350

PIN

40

17C640

BOLT 5

41

VALVE See Illustration GRADER/ B18055

42

6501041

TUBE L.H.

43

6598755

QUICK COUPLER male half

44

6515168

CAP W/Chain

45

6508605

KNUCKLE

46

6508621

HINGE PIN

47

6515275

NUTSERT

48

6508614

HOSE

49

CYLINDER See Illustration GRADER/ B18032A See Illustration GRADER/ C1050A See Illustration GRADER/ C3112A - hydraulic

50

6508618

HOSE

51

6502426

CLAMP

52

17C620

BOLT

53

6508613

TUBE

54

6508612

TUBE
