HYDRAULIC SYSTEM (Cylinder) (AD8900200 & Above)

Запчасти Bobcat FORESTRY CUTTER HYDRAULIC SYSTEM (Cylinder) (AD8900200 & Above) Loader FRC150 (EMEA Only)

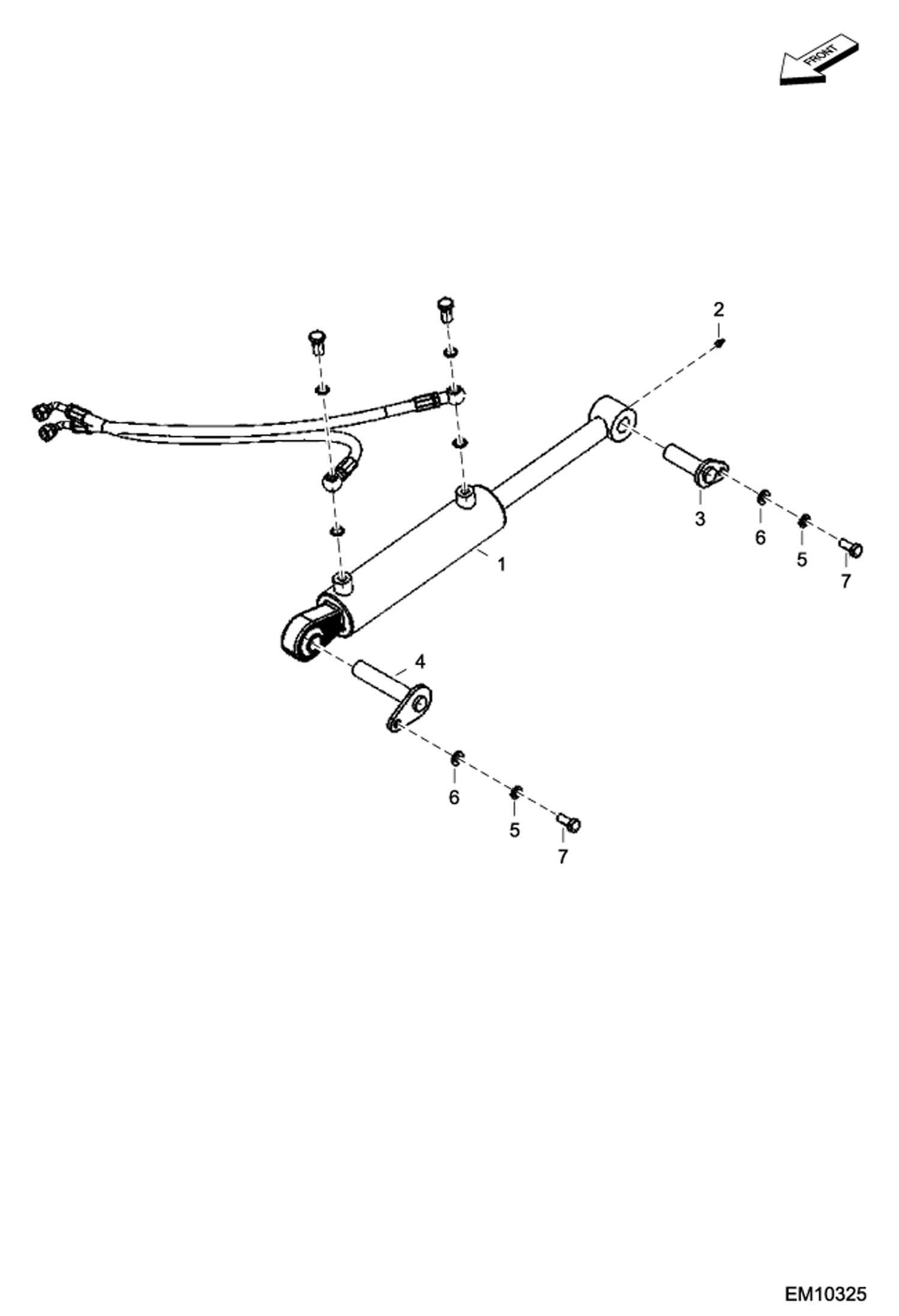

Схема запчастей Bobcat FORESTRY CUTTER - HYDRAULIC SYSTEM (Cylinder) (AD8900200 & Above) Loader FRC150 (EMEA Only)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

7244818

CYLINDER See Illustration HYDRAULIC SYSTEM/ EM10325

2

6687598

GREASE ZERK

3

7244742

PIN

4

7244754

PIN

5

7001557

WASHER

6

7001562

WASHER

7

7244797

BOLT
