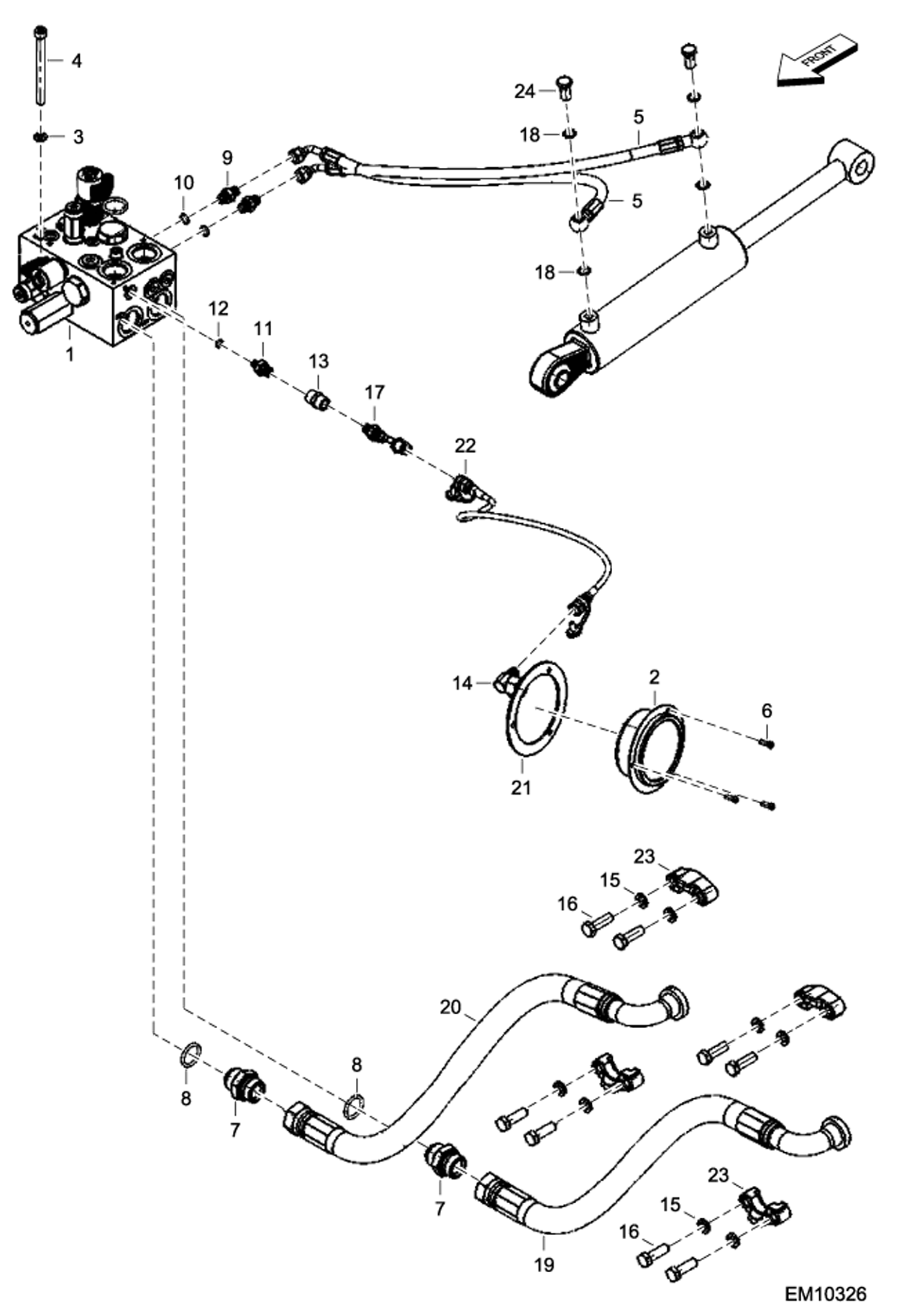

Запчасти Bobcat FORESTRY CUTTER HYDRAULIC SYSTEM (Valve) (AD8900200 & Above) Loader FRC150 (EMEA Only)

1

6691567

VALVE ASSY

2

7001629

GAUGE

3

7001557

WASHER

4

7244806

BOLT

5

7244785

HOSE, HYD

6

7244805

BOLT

7

7244780

ADAPTER, HYD

8

7244814

O-RING

9

7244747

ADAPTER, HYD

10

7244812

O-RING

11

7244778

ADAPTER

12

7009804

O-RING

13

7244782

TUBE

14

7244783

HOLDER, MANOMETER

15

7001583

WASHER

16

7244799

BOLT

17

7244740

ADAPTER, HYD

18

7001616

SEAL

19

7001607

PIPE

20

7001607

PIPE

21

7244764

SEAL, RUBBER

22

7244777

HOSE, HYD

23

7244779

FLANGE

24

7013568

BOLT
