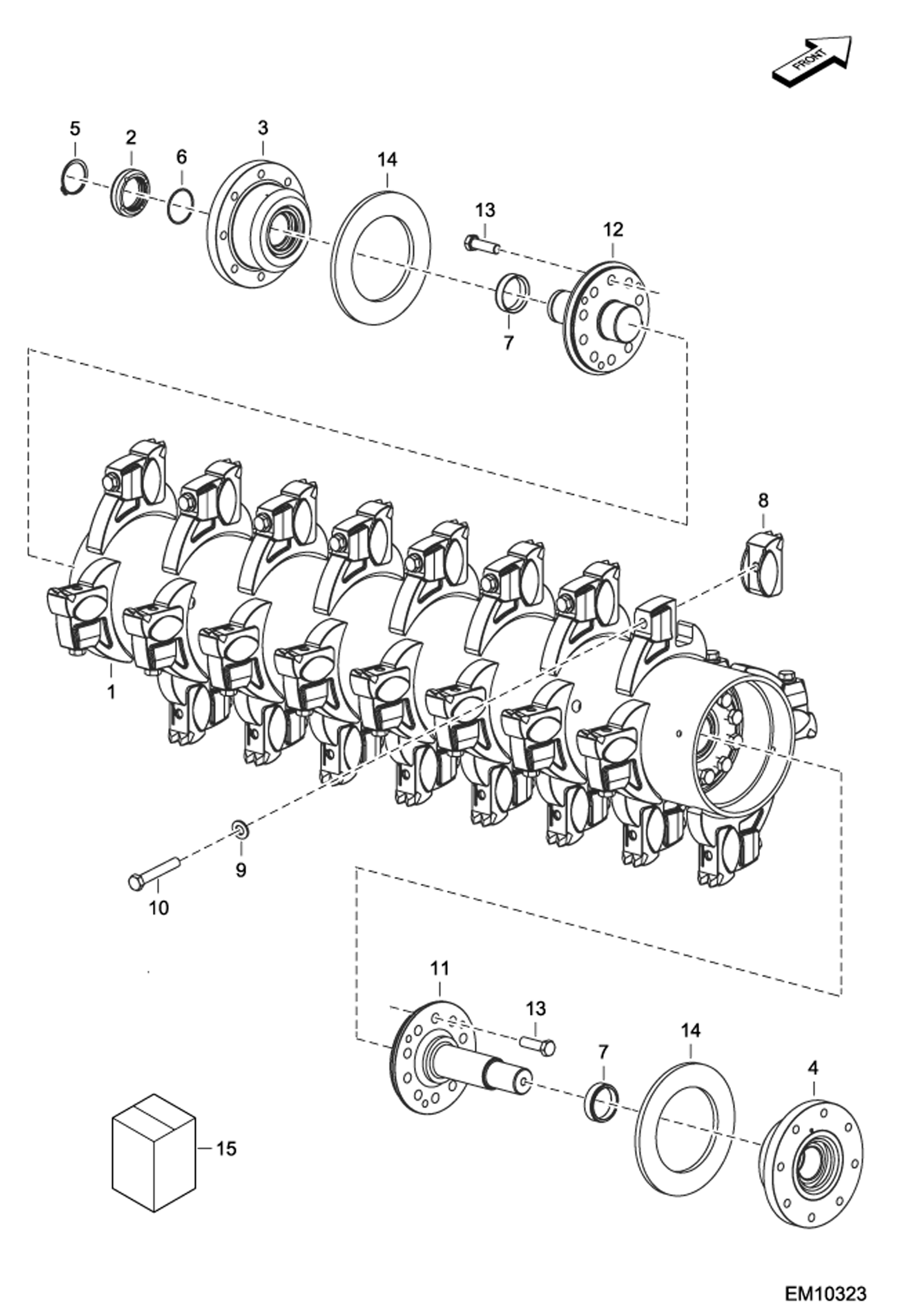

Запчасти Bobcat FORESTRY CUTTER ROTOR ASSY (AD8900201 & Above) Loader FRC150 (EMEA Only)

1

7244762

ASSY, ROTOR Ref. 2-14

2

7001643

SPACER

3

7001642

SUPPORT ASSY, LH

4

7001641

SUPPORT ASSY, RH

5

7001640

RING, SNAP

6

7001639

O-RING

7

7244753

SPACER

8

7244746

TOOTH, CARBIDE

9

7244807

WASHER

10

7244802

BOLT

11

7244759

HUB

12

7244758

HUB

13

7244804

BOLT

14

7244745

FLANGE
