ROTOR INSTALLATION (AD8900101 - 00200)

Запчасти Bobcat FORESTRY CUTTER ROTOR INSTALLATION (AD8900101 - 00200) Loader FRC150 (EMEA Only)

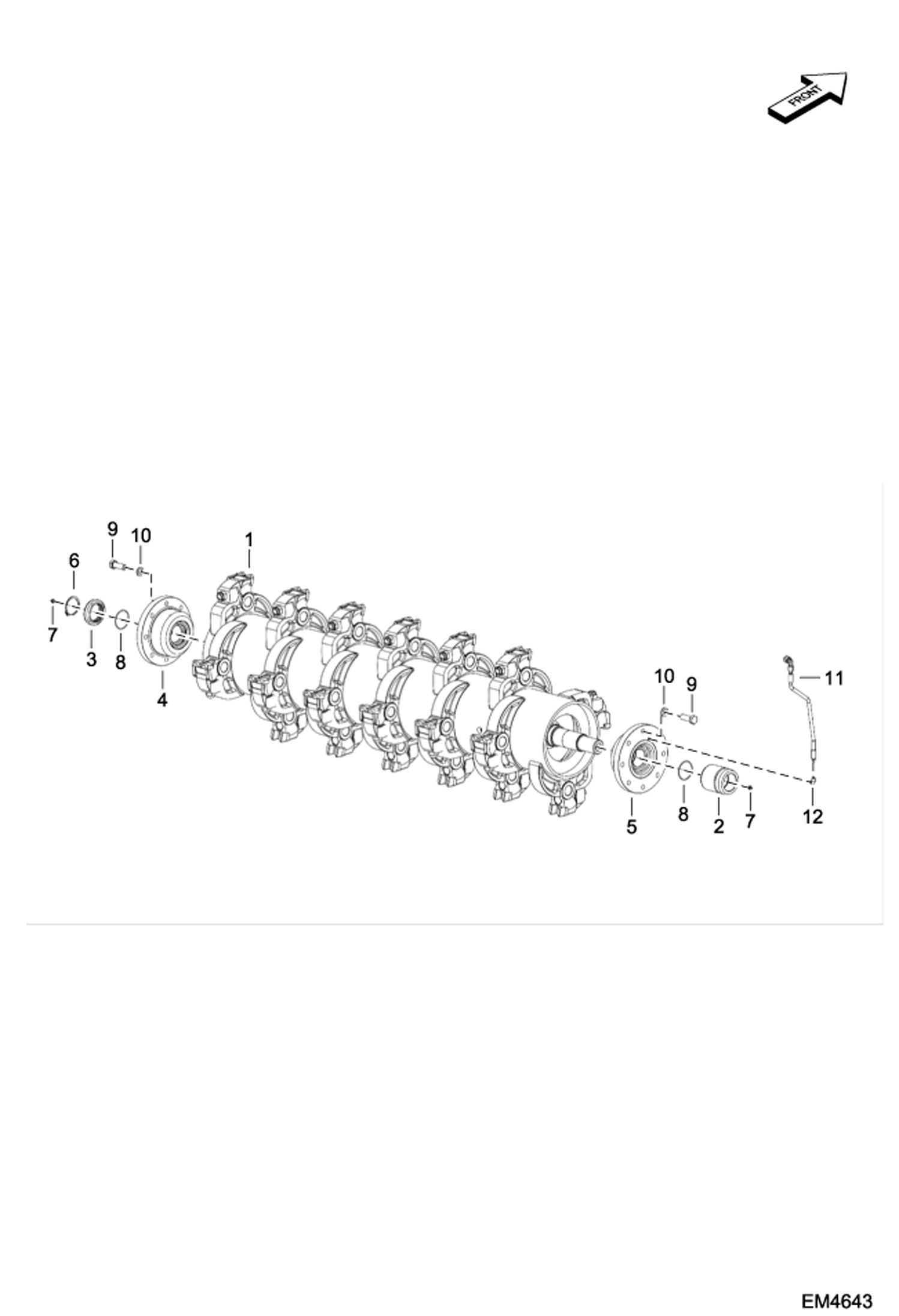

Схема запчастей Bobcat FORESTRY CUTTER - ROTOR INSTALLATION (AD8900101 - 00200) Loader FRC150 (EMEA Only)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

7001645

ROTOR ASSY See Illustration ROTOR ASSY/ EM4642

2

7001644

SPACER

3

7001643

SPACER

4

7001642

SUPPORT ASSY, LH See Illustration ROTOR SUPPORT LEFT SIDE/ EM4644

5

7001641

SUPPORT ASSY, RH See Illustration ROTOR SUPPORT RIGHT SIDE/ EM4645

6

7001640

RING, SNAP

7

6687573

GREASE ZERK

8

7001639

O-RING

9

7001638

BOLT

10

7001637

WASHER

11

7008349

HOSE ASSY

12

7008305

ELBOW
