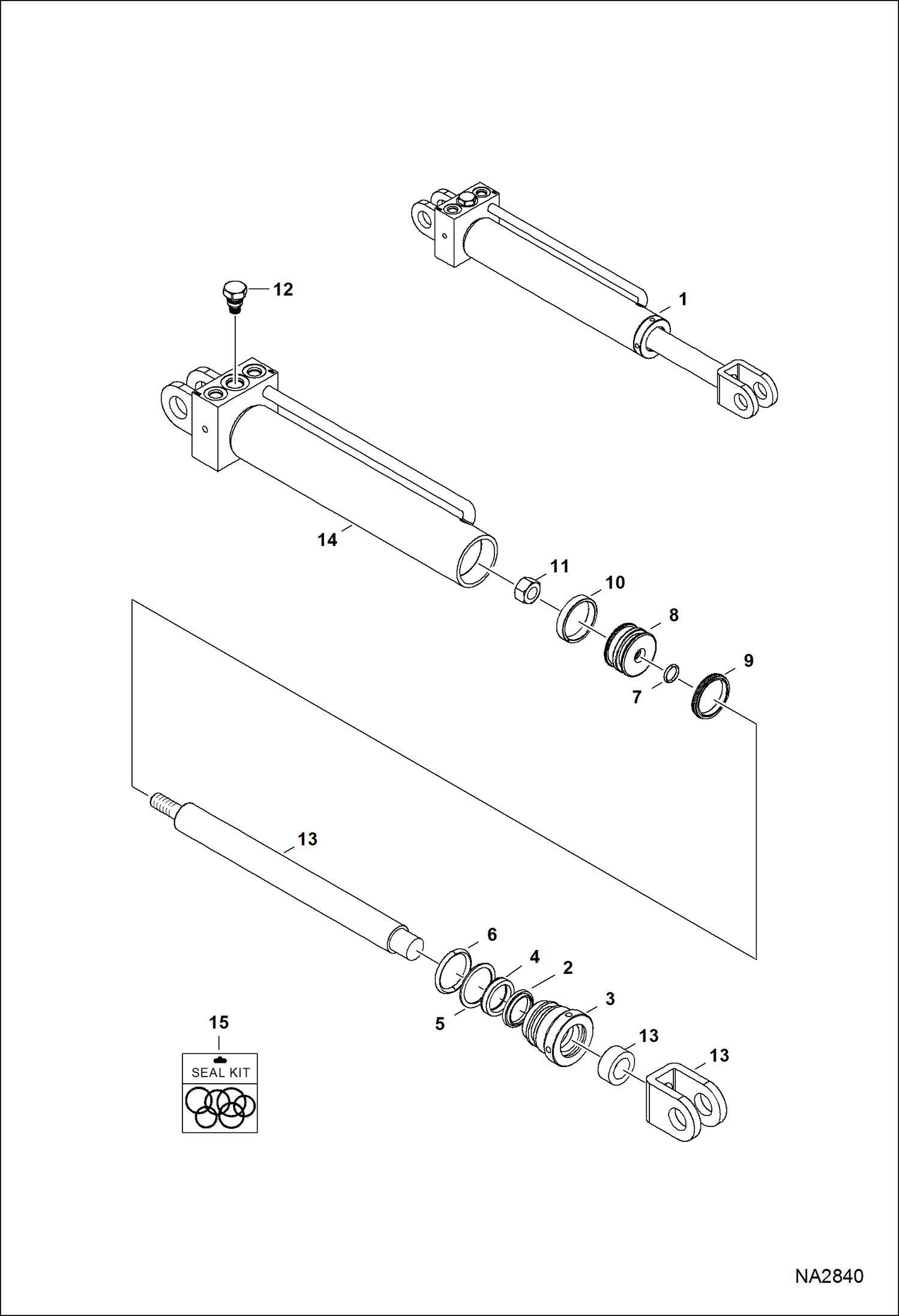

Запчасти Bobcat FORESTRY CUTTER FORESTRY CUTTER (Gate Cylinder) (FRC50 ANR6) (FRC50 ATSY) (FRC60 ANR5) (FRC60 ATV1) Loader

1

7020406

CYLINDER Ref. 2-14

2

7020638

SEAL

3

7020637

BASE

4

7020636

SEAL

5

7020635

WASHER

6

7020634

O-RING

7

7020633

O-RING

8

7020632

PISTON, CYL

9

7020631

SEAL

10

7020630

RING, WEAR

11

7020629

NUT

12

7020628

PLUG

13

7020641

SHAFT

14

7020640

TUBE CYLINDER

15

7020642

KIT, SEAL
