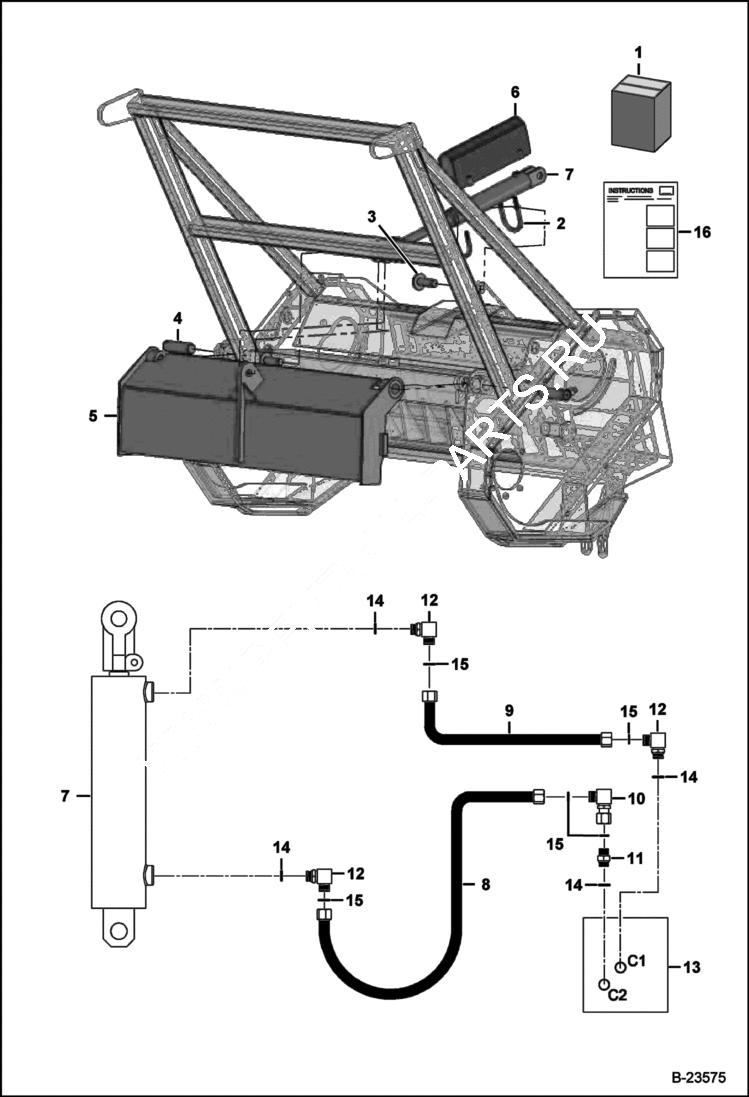

Запчасти Bobcat FORESTRY CUTTER FORESTRY CUTTER (Front Gate Kit) (FRC50 ADTN) (FRC60 A6ZB) Loader

1

GATE KIT NLA - 60'' - Order 7167045 & Ref. 16 - Was SALES #7138967 - D

1

GATE KIT SALES #7166574 - 50'' - Ref. 2-16

1

7167045

GATE, CUTTER FORESTRY Ref. 2-12, 14 & 15

2

6693020

U-BOLT

3

6693021

PIN cylinder

3

PIN NLA - .25'' Diameter 2'' Long - Was 14J2532

4

6693022

PIN door hinge

5

7010871

DOOR, GATE KIT for 60'' - Was 6693023 - A

5

7003506

DOOR, GATE KIT for 50''

6

6693024

COVER cylinder

7

6693019

CYLINDER no serviceable parts inside cylinder except seal kit

7

7001481

KIT, SEAL for 6693019 cylinder

8

6693192

HOSE

9

6693040

HOSE

10

6693029

ELBOW

11

6693031

ADAPTER

12

6693193

ELBOW

13

VALVE ASSY See Illustration FORESTRY CUTTER/ MS2406 NLA - Use 7196485 - Was 6691567 - A

14

79K6

O RING 10

15

58K012

O-RING 10

16

6986590

INSTRUCTIONS
