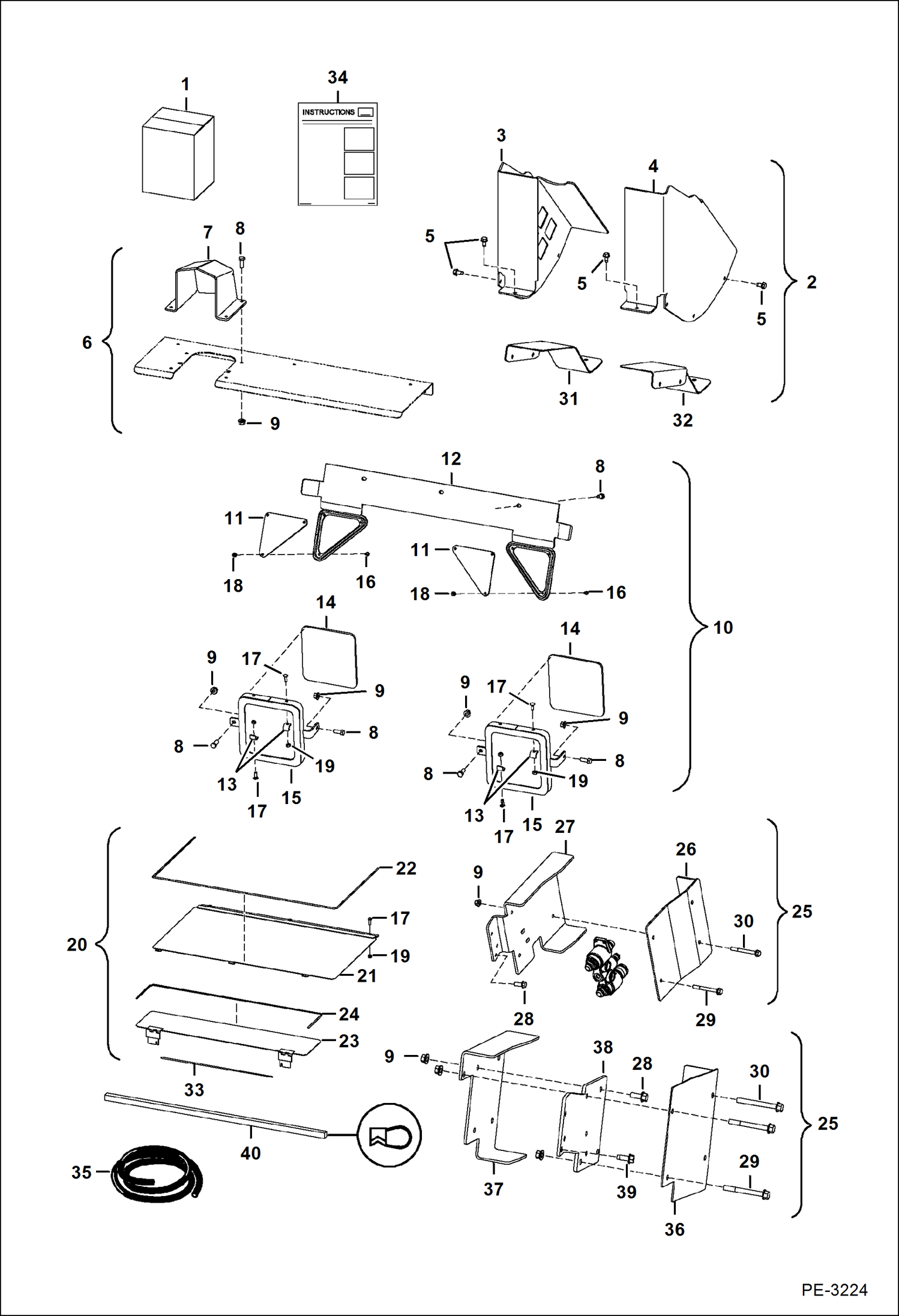

Запчасти Bobcat FORESTRY CUTTER FORESTRY CUTTER (Forestry Debris Kit) Loader

1

7137796

KIT, FORESTRY DEBRIS W/Ref. 2-34 - must Also Order 6718924 FOPS Kit needed to install Ref 12

2

SHIELD ASSY cylinder - Order components

3

7125991

SHIELD cooling - verticle lift only

4

7131807

SHIELD cooling - verticle lift only

5

84G3712

BOLT 5

6

GUARD ASSY muffler - Order components - Ref. 7-9

7

7133367

GUARD

8

17C616

BOLT 5

9

83D6

NUT 5

10

GUARD ASSY lights - Order components

11

7125994

SHIELD front lights

12

7126028

GUARD

13

7126029

BRACKET

14

7126030

SHIELD

15

7131802

GUARD rear lights

16

25G410

CAPSCREW

17

37C412

BOLT

18

7D4

NUT

19

81D4

NUT

20

AIR SCREEN ASSY Order components

21

7133368

SCREEN

22

EDGING NLA - Order 38.00'' of Ref 35 - Was 7133559 - A

23

7133561

SCREEN

24

EDGING NLA Order 52.00'' of Ref 35 - Was 7133681 - A

25

GUARD ASSY couplers - Order components

26

GUARD NLA - coupler - Order Ref. 36-39 - Was 7125990 - A

27

BRACKET NLA - coupler - Order Ref. 36-39 - Was 7133364 - A

28

31C616

SCREW

29

31C656

BOLT

30

31C664

BOLT

31

7139591

GUARD lift cylinder - RH - radial lift only

32

7139590

GUARD lift cylinder - LH - radial lift only

33

EDGING NLA - Order 22.00'' of Ref 35 - Was 7131799 - A

34

6904963

INSTRUCTIONS

35

6693420

EDGE TRIM bulk - sold per foot

36

7144873

BRACKET front coupler

37

7144874

BRACKET rear coupler

38

7147691

BRACKET middle coupler

39

84G3716

SCREW 5

40

6679994

SEAL 787,4 mm (31.5'') long
